The MARCO UP6/AC electric gear pump is a 230V unit rated for 28 L/min (with free outlet/without back pressure) and a cut-off pressure of 5 bar. It is self-priming up to 1.5 m, dry-run safe, and uses 1/2 inch connections (12.7 mm) with a 1/2 inch BSPP port. Current consumption is 1.7 A; dimensions are 350 x 195 x 203 mm, and shipping weight is 9.30 kg. Construction includes a nickel-plated brass housing, stainless steel shaft, bronze gears, FKM seals, and an NBR O-ring; it is listed as ideal for transferring diesel.
- Description
- Ask a Question
-

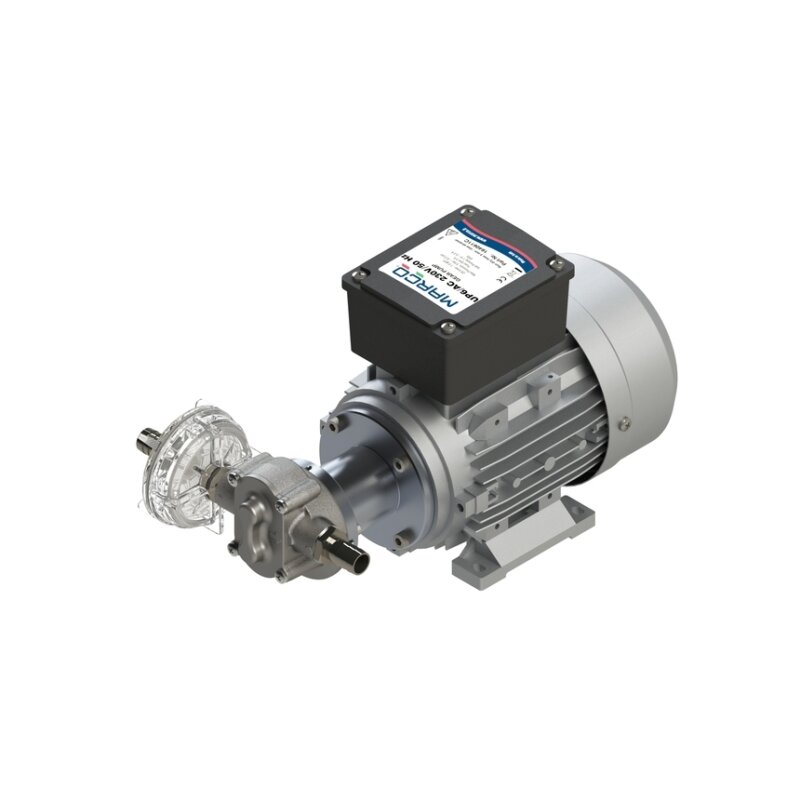

UP6/AC Electric Gear Pump for Diesel Transfer
The MARCO 1640611C UP6/AC is a self-priming electric gear pump designed for fluid transfer applications, and is listed as ideal for transferring diesel. It combines a compact build with gear-driven operation and specified materials (including FKM seals) for demanding service.
Technical Specifications
Voltage 230V Flow Rate 28 L/min (with free outlet/without back pressure) Cut-Off Pressure 5 bar Current Consumption 1.7 A Self-Priming Up to 1.5 m Dry-Run Capability Dry-run safe Connection (Scope of Delivery) 1/2 inch (12.7 mm) Port Connection 1/2 inch BSPP Dimensions (H x W x L) 350 x 195 x 203 mm Housing Material Nickel-plated brass Shaft Material Stainless steel Gear Material Bronze Seal Material FKM O-Ring Material NBR Product Portfolio Diesel transfer pumps Shipping Weight 9.30 kg
Features
- Flow rate of 28 liters per minute with free outlet/without back pressure
- Self-priming up to 1.5 m
- Dry-run safe
- 1/2 inch connections (12.7 mm)
- Nickel-plated brass housing, stainless steel shaft, bronze gears, FKM seals, NBR O-ring
Product Details
If there are any uncertainties regarding material compatibility between the pump and the pumped medium, compatibility should be clarified before putting the pump into operation.
-
