The Marco UP6 self-priming electric gear pump (part number 16406012) is a 12V DC transfer unit rated at 26 L/min with a 2 bar cut-off pressure. It is described for transferring gasoline and other non-flammable liquids and is also noted as ideal for diesel transfer; it is not suitable for pumping oil. The pump includes an in-line filter and uses a nickel-plated brass housing with a stainless steel spindle, bronze gears, PTFE components, FKM seals, and an NBR O-ring, with 1/2 inch connections (including 1/2 inch x 16 mm and 1/2 inch BSPP listed).
- Description
- Ask a Question
-

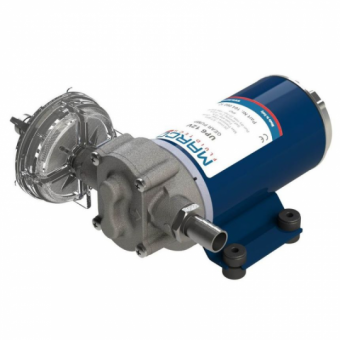

Marco UP6 12V Self-Priming Gear Transfer Pump
The Marco UP6 gear pump (part number 16406012) is a self-priming electric pump intended for liquid transfer applications. It is described for transferring gasoline and other non-flammable liquids and is also noted as ideal for diesel transfer. The unit includes an in-line filter and is specified as not suitable for pumping oil.
Technical Specifications

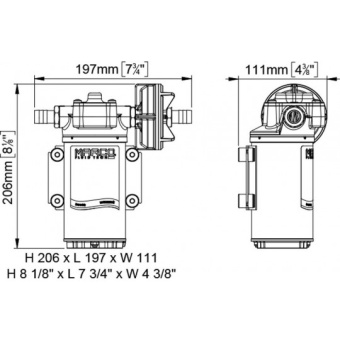

Type Self-priming electric gear pump Voltage 12V Flow Rate 26 L/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Maximum Suction Height 1.5 m Self-Priming Up to 2 m Current 11 A Current Consumption 10 A Connection 1/2 inch BSPP Outlet Size 1/2 inch x 16 mm Connections 1/2 inch (12.7 mm) Housing Material Nickel-plated brass Spindle Material Stainless steel Gears Bronze gears; PTFE and bronze gears listed Seals FKM O-Ring NBR Dimensions (H x W x L) 206 mm x 111 mm x 197 mm Shipping Weight 4.00 kg FNI Product Number 1600012 EAN 8022278603327 Product Portfolio Diesel transfer pumps
Features
- Self-priming design (1.5 m maximum suction height listed; self-priming up to 2 m also stated)
- In-line filter included for filtration
- Dry-run safe (as stated)
- Reversible (as stated)
Product Details
- Designed for transferring gasoline and other non-flammable liquids; also described as ideal for diesel transfer
- Not suitable for pumping oil
- If there are uncertainties regarding material compatibility with the pumped medium, compatibility should be clarified before operation
-
