The Marco UP9/OIL electric gear pump is a 12V unit for transferring lubricating oils and other viscous liquids, suitable for emptying engine casings and lubrication operations. It delivers 9 L/min (free outlet/without back pressure) with a 5 bar cut-off pressure, is self-priming up to 1.5 m, dry-run safe, and reversible. The pump has a 3/8 inch BSPP connection (3/8 inch / 9.5 mm), draws 7 A, uses a nickel-plated brass housing with a stainless steel shaft and bronze helical gears, and includes FKM seals with NBR O-rings; EAN 8022278603372, FNI product number 1600028, shipping weight 3.10 kg.
- Description
- Ask a Question
-

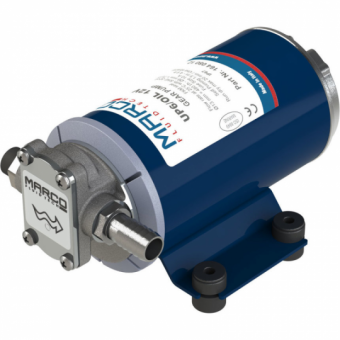

Marco UP9/OIL 12V Electric Gear Pump
The Marco 16408012 is an electric gear pump designed for transferring lubricating oils and other viscous liquids. It is intended for tasks such as emptying engine casings and supporting engine lubrication operations, with a robust metal construction and sealing materials specified for oil-handling service.
Technical Specifications

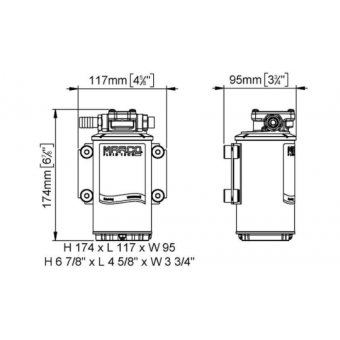

Part Number 16408012 FNI Product Number 1600028 EAN 8022278603372 Voltage 12V Output 9 L/min Flow Note 9 L/min with free outlet / without back pressure Cut-Off Pressure 5 bar Self-Priming Up to 1.5 m Current Consumption 7 A Connection 3/8 inch BSPP (3/8 inch / 9.5 mm) Dimensions (H x W x L) 174 x 95 x 117 mm Housing Material Nickel-plated brass Shaft Material Stainless steel Gear Type Helical bronze gears Seals FKM O-Rings NBR Product Portfolio Oil change pumps Shipping Weight 3.10 kg
Features
- Electric gear pump for lubricating oils and viscous liquids
- Self-priming up to 1.5 m
- Dry-run safe
- Reversible operation
- Nickel-plated brass housing with stainless steel shaft and bronze gears
Product Details
Before putting the pump into operation, verify that the materials in contact with the pumped liquid are compatible with your specific fluid and application.
-
