The Marco UP8 electric gear pump is a 12V unit rated for 10 L/min (free discharge) with a 4 bar cut-off pressure. It is self-priming up to 1.5 m, dry-run safe, and reversible, and it is intended for diesel transfer with bronze gears. The pump has 3/8 inch connections (3/8 inch BSPP; 9.5 mm), draws 11 A, uses a nickel-plated brass housing with a stainless steel spindle, FKM seals, and an NBR O-ring, and measures 176 x 101 x 166 mm with a shipping weight of 2.30 kg.
- Description
- Ask a Question
-

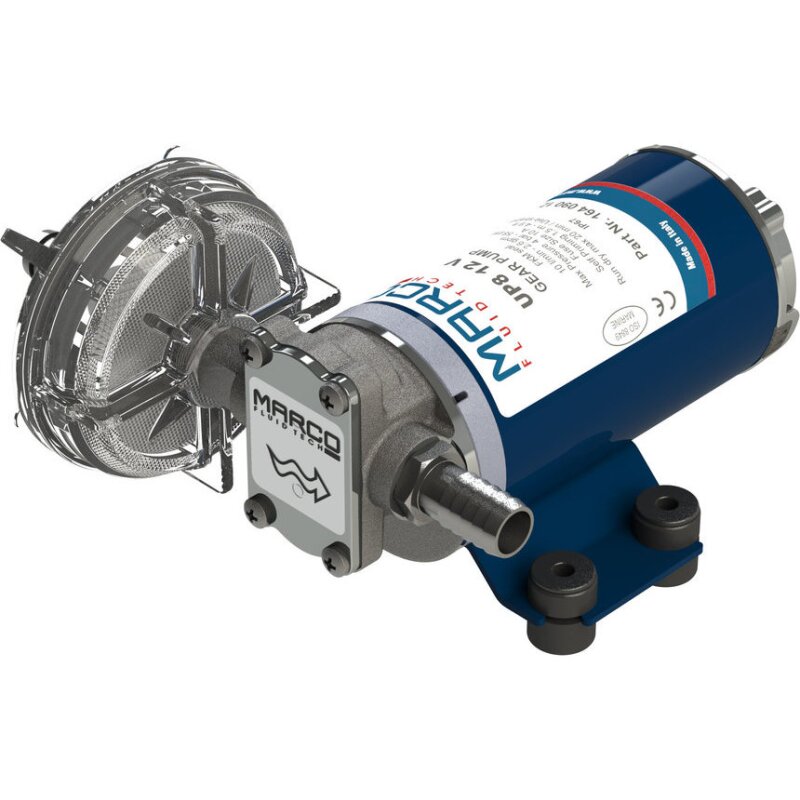

Marco UP8 12V Reversible Gear Transfer Pump
The Marco 16409012 UP8 is a self-priming electric gear pump designed for fluid transfer applications, including diesel transfer. It is built with a compact footprint and is designed to handle high loads, with reversible operation and dry-run safe performance.
Technical Specifications
Brand MARCO Series UP8 Product Portfolio Diesel transfer pumps Voltage 12V Output 10 l/min Flow Rating Note 10 l/min with free discharge / without back pressure Cut-Off Pressure 4 bar Self-Priming Up to 1.5 m Current Consumption 11 A Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Materials Nickel-plated brass housing; stainless steel spindle; bronze gears; FKM seals; NBR O-ring Dimensions (H x W x L) 176 x 101 x 166 mm Shipping Weight 2.30 kg
Features
- Self-priming electric gear pump
- Dry-run safe
- Reversible operation
- Compact footprint and high load capacity
- Designed for transferring diesel
Product Details
If you are unsure about the material compatibility of this pump with the liquid being transferred, confirm compatibility of all wetted materials before putting the pump into operation.
-
