ID
1172836
$ 364.31
1-2 weeks delivery time
-
+
The Marco UP9/OIL electric gear pump is a 24V unit for transferring lubricating oils and other viscous liquids, particularly suited for emptying engine casings and engine lubrication operations. It provides 9 L/min free flow with a 5 bar cut-off pressure, is self-priming up to 1.5 m, dry-run safe, and reversible. The pump has a nickel-plated brass housing with bronze helical gears, a stainless steel shaft, FKM seals, NBR O-rings, 3/8 inch BSPP connections (3/8 inch / 9.5 mm noted), 4 A current draw, dimensions of 174 x 95 x 117 mm, and a shipping weight of 3.10 kg.
- Description
- Ask a Question
-

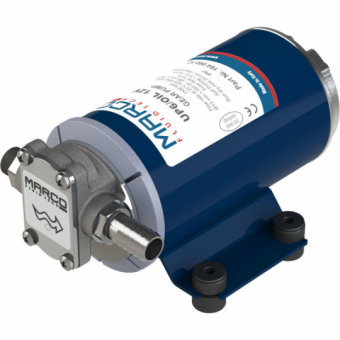

Marco UP9/OIL 24V Electric Gear Pump for Oils
The Marco 16408013 is a reversible electric gear pump designed for transferring lubricating oils and other viscous liquids. Built for engine service tasks, it is particularly suitable for emptying engine casings and supporting engine lubrication operations.
Technical Specifications

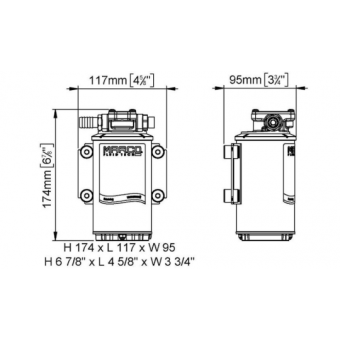

Voltage 24V Output 9 L/min (free discharge / without back pressure) Cut-Off Pressure 5 bar Current Consumption 4 A Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Noted) 3/8 inch (9.5 mm) Gear Type Helical bronze gears Housing Material Nickel-plated brass Shaft Material Stainless steel Seal Material FKM O-Rings NBR Dimensions (H x W x L) 174 x 95 x 117 mm Shipping Weight 3.10 kg Product Portfolio Oil change pumps FNI Product Number 1600029 EAN 8022278603389
Features
- Dry-run safe
- Self-priming up to 1.5 m
- Reversible operation
- Bronze gear design for oils and other viscous liquids
Product Details
This pump is intended for transferring lubricating oils and viscous liquids and is particularly suitable for emptying engine casings during service operations.
-
