The Marco UP6/OIL-AC gear pump is a 230V unit rated for 14 L/min (free outlet/without back pressure) with a cut-off pressure of 5 bar and 2A current consumption. It is self-priming up to 1 m, dry-run safe, and reversible, with 1/2-inch connections (12.7 mm) and 1/2-inch BSPP. Construction includes a nickel-plated brass housing, stainless steel spindle, bronze gears, FKM seals, and NBR O-rings; dimensions are 339 x 195 x 152 mm with a shipping weight of 9.30 kg.
- Description
- Ask a Question
-

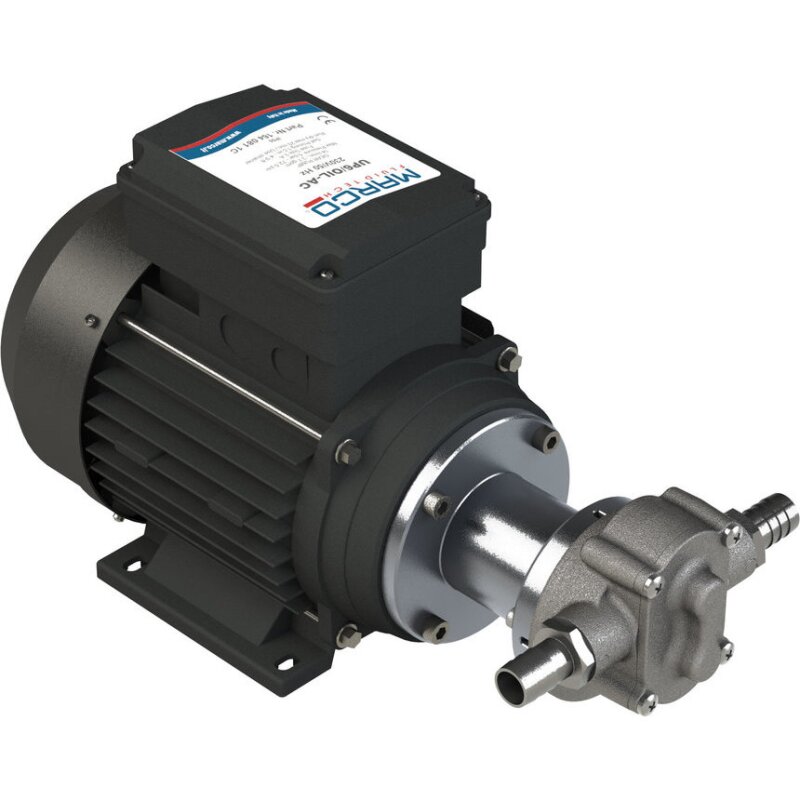

Marco UP6/OIL-AC Reversible Gear Pump (230V)
The Marco 1640811C UP6/OIL-AC is an electric gear pump designed for transferring oils or viscous liquids. It is self-priming and reversible, and is built with materials specified for demanding fluid-handling applications.
Technical Specifications
Voltage 230V Output 14 L/min (free outlet/without back pressure) Cut-Off Pressure 5 bar Current Consumption 2A Self-Priming Up to 1 m Connection 1/2 inch (12.7 mm); 1/2 inch BSPP Dimensions (H x W x L) 339 x 195 x 152 mm Shipping Weight 9.30 kg Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Material Bronze Seal Material FKM seals; NBR O-rings Product Portfolio Oil change pumps Brand Marco
Features
- Self-priming design (up to 1 m)
- Dry-run safe
- Reversible operation
- Designed for transferring oils or viscous liquids
- Nickel-plated brass housing with stainless steel spindle
- FKM seals with NBR O-rings
Product Details
If you are unsure about material compatibility with the pumped liquid, verify compatibility of all wetted materials before putting the pump into operation.
-
