The MARCO UP6-P gear pump (part number 16406512) is a self-priming electric gear pump rated for 26 L/min (free discharge/without back pressure) and 2 bar cut-off pressure. It uses PEEK helical gears with a nickel-plated brass housing, a stainless steel shaft, and an FKM seal. The pump has 1/2 inch connections (listed as 1/2 inch (12.7 mm) and 1/2 inch BSPP), draws 10 A, self-primes up to 1.5 m, measures 206 x 111 x 197 mm (H x W x L), and has a shipping weight of 3.90 kg.
- Description
- Ask a Question
-

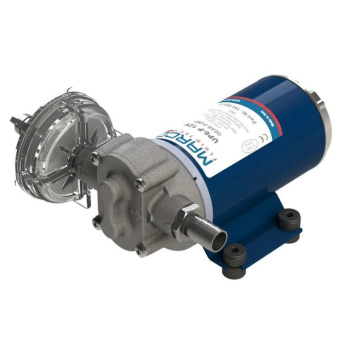

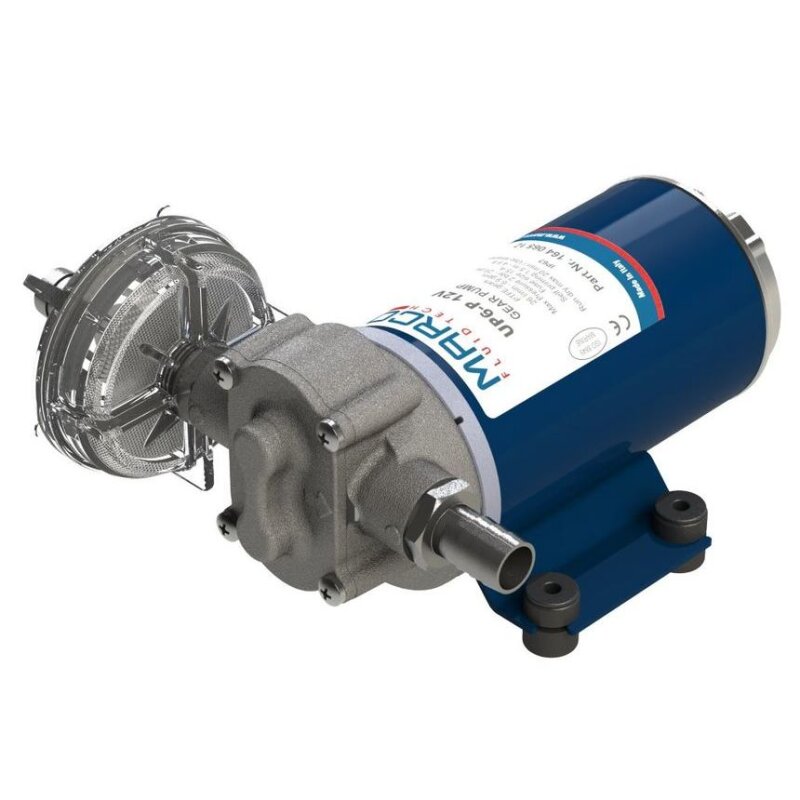

MARCO UP6-P Electric Gear Pump (16406512)
The MARCO UP6-P is a self-priming gear pump designed for water pressure system applications. It is specified for free-discharge flow performance and uses engineered internal components and corrosion-resistant metals for the pump body and shaft. Material compatibility with the pumped liquid should be verified before operation.
Technical Specifications
Flow Rate (Free Discharge) 26 L/min Cut-Off Pressure 2 bar Voltage 12V / 24V (listed as 12V24V) Current Consumption 10 A Self-Priming Up to 1.5 m Connection 1/2 inch (12.7 mm) Connection (Thread) 1/2 inch BSPP Dimensions (H x W x L) 206 x 111 x 197 mm Housing Material Nickel-plated brass Shaft Material Stainless steel Seal Material FKM Gear Type PEEK helical gear Shipping Weight 3.90 kg Product Portfolio Water Pressure Systems Brand MARCO
Features
- Self-priming design (up to 1.5 m)
- 26 L/min flow rate specified at free discharge (without back pressure)
- Corrosion-resistant construction: nickel-plated brass housing and stainless steel shaft
- FKM seal and PEEK helical gears
Product Details
If there is any uncertainty about material compatibility between the pump components and the pumped medium, verify compatibility of the materials in contact with the liquid before putting the pump into operation.
-
