ID
1172832
$ 394.17
1-2 weeks delivery time
-
+
The Marco UP6 self-priming electric gear pump is a 24V unit rated at 26 L/min with a 2 bar cut-off pressure. It is described for transferring liquids such as oil, gas, and diesel, and includes an in-line filter. The pump features bronze gears, a brass housing (also listed as nickel-plated), stainless steel spindle, FKM seals, and an NBR O-ring, with 1/2 inch connections (1/2 inch BSPP also listed) and an output size of 1/2 x 16 mm; current draw is listed as 6 A (also stated as 5 A).
- Description
- Ask a Question
-

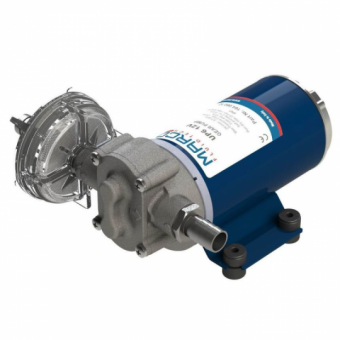

Marco UP6 24V Self-Priming Gear Pump
The Marco UP6 is a self-priming electric gear pump designed for liquid transfer applications. It is supplied with an in-line filter and is described for uses such as transferring oil, gas, and diesel, as well as emptying bilges. The unit is also specified as reversible and dry-run safe.
Technical Specifications

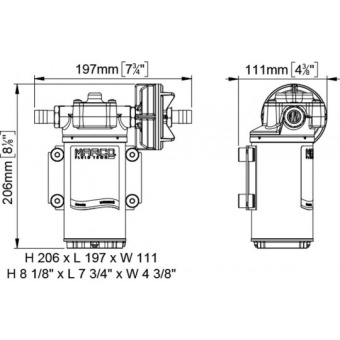

Brand MARCO Part Number 16406013 FNI Product Number 1600024 EAN 8022278603334 Voltage 24V Current 6 A (also listed as 5 A) Flow Rate 26 L/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Self-Priming Up to 2 m Connections 1/2 inch (12.7 mm); 1/2 inch BSPP Output Size 1/2 x 16 mm Dimensions (H x W x L) 206 x 111 x 197 mm Shipping Weight 4.00 kg Materials (As Listed) Bronze gears; brass body / nickel-plated brass housing; stainless steel spindle; PTFE (listed); FKM seals; NBR O-ring Product Portfolio Diesel transfer pumps
Features
- Self-priming electric gear pump
- In-line filter included for enhanced filtration
- Reversible operation (as listed)
- Dry-run safe (as listed)
- Designed with bronze gears and a brass housing (also listed as nickel-plated)
Product Details
If there are uncertainties regarding material compatibility between the pump components and the liquid being pumped, compatibility should be verified before operation, as noted in the product data.
-
