ID
1353882
$ 674.77
1-2 weeks delivery time
-
+
The MARCO UP3/OIL-AC gear pump is a 230V unit rated for 5 L/min (free outlet/without back pressure) with a cut-off pressure of 4 bar and a current consumption of 1A. It is self-priming up to 1.5 m, dry-run safe, and reversible, with 3/8 inch connections (3/8 inch BSPP; 9.5 mm). Construction includes a nickel-plated brass housing, stainless steel spindle, FKM seals, NBR O-rings, and bronze gears; dimensions are 257 x 165 x 99 mm with a shipping weight of 5.80 kg.
- Description
- Ask a Question
-

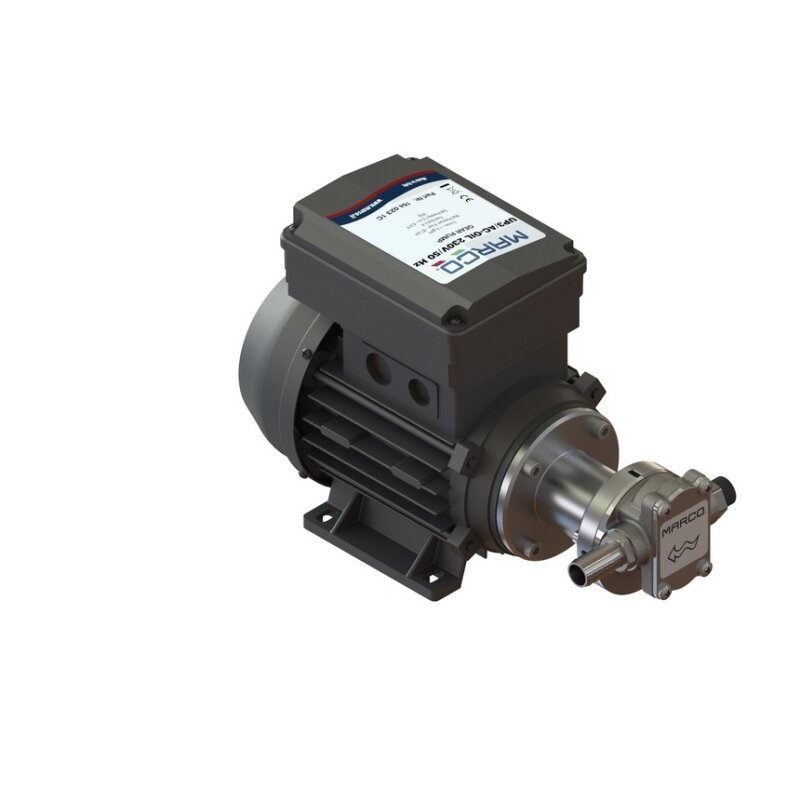

UP3/OIL-AC Reversible Gear Pump for Oil Transfer
The MARCO 1640231C is a 230V gear pump designed for transferring oils or other viscous liquids. It is self-priming and reversible, with a compact build and materials selected for oil-change pump applications.
Technical Specifications
Output 5 l/min Flow Rating Note Free outlet / without back pressure Cut-Off Pressure 4 bar Voltage 230V Current Consumption 1A Self-Priming Up to 1.5 m Connection 3/8 inch (9.5 mm) Connection Thread 3/8 inch BSPP Dimensions (H x W x L) 257 x 165 x 99 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM O-Rings NBR Gears Bronze Shipping Weight 5.80 kg Product Portfolio Oil change pumps Brand MARCO
Features
- Flow rate of 5 liters per minute with free outlet / without back pressure
- Self-priming up to 1.5 m
- Dry-run safe
- Reversible operation
- Electric gear pump with bronze gears, ideal for transferring oils or viscous liquids
Product Details
The pump uses a nickel-plated brass housing, a stainless steel spindle, FKM seals, and NBR O-rings, and is supplied with 3/8 inch connections.
-
