ID
1172834
$ 294.15
1-2 weeks delivery time
-
+
The Marco UP3 Oil-R reversible self-priming gear pump is designed for transferring diesel, oil, and water, with a rated output of 5.5 L/min (free outlet/without back pressure) and a cut-off pressure of 2 bar. It runs on 12V and is listed with 6.5 A power draw and 5 A current consumption, and includes an integrated 3-position reversing ON/OFF switch. The pump uses bronze gears and features a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings, with 3/8 inch connections (3/8 inch BSPP / 9.5 mm) and dimensions of 180 x 88 x 108 mm.
- Description
- Ask a Question
-

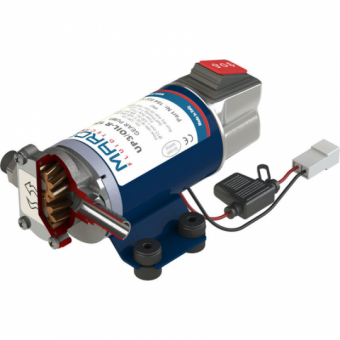

UP3 Oil-R Self-Priming Reversible Gear Pump
The Marco UP3 Oil-R is a reversible, self-priming electric gear pump intended for liquid transfer applications, including diesel, oil, and water. It is built around bronze gears and includes an integrated 3-position reversing ON/OFF switch for controlled bidirectional pumping.
Technical Specifications

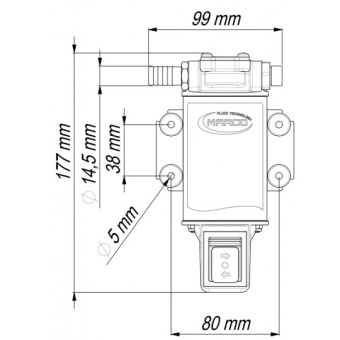

Type Reversible self-priming pump Pump Principle Gear pump (bronze gears) Output 5.5 L/min Flow Rating Note Free outlet / without back pressure Cut-Off Pressure 2 bar Voltage 12V Power Draw 6.5 A Current Consumption 5 A Self-Priming Up to 1 m Dry-Run Capability Dry-run safe Switch Built-in 3-position reversing ON/OFF switch Connection 3/8 inch (9.5 mm) Connection Thread 3/8 inch BSPP Materials Nickel-plated brass housing; stainless steel spindle; FKM seals; NBR O-rings Dimensions (H x W x L) 180 x 88 x 108 mm Shipping Weight 2.30 kg Product Portfolio Oil change pumps EAN 8022278608896 Alternate Reference Forniture Nautiche Italiane: 1600027
Features
- Reversible pumping direction for flexible transfer and draining
- Self-priming performance up to 1 m
- Dry-run safe design
- Durable construction with bronze gears
- Integrated 3-position reversing ON/OFF switch
Product Details
This unit is described as ideal for transferring oils or other viscous liquids and is listed for use with diesel, oil, and water. The pump uses a nickel-plated brass housing with a stainless steel spindle, plus FKM seals and NBR O-rings.
-
