The Marco UP3/OIL-R gear pump is a 24V unit for transferring oils or other viscous liquids, rated for 5.5 L/min (free outlet/without back pressure) and 2 bar cut-off pressure. It is self-priming up to 1 m, dry-run safe, and reversible via an on/off 3-position reversing switch. The pump has 3/8 inch connections (3/8 inch BSPP; 9.5 mm), draws 3 A, uses a nickel-plated brass housing with a stainless steel spindle, bronze gears, FKM seals and NBR O-rings, and measures 180 x 88 x 108 mm with a 2.30 kg shipping weight.
- Description
- Ask a Question
-

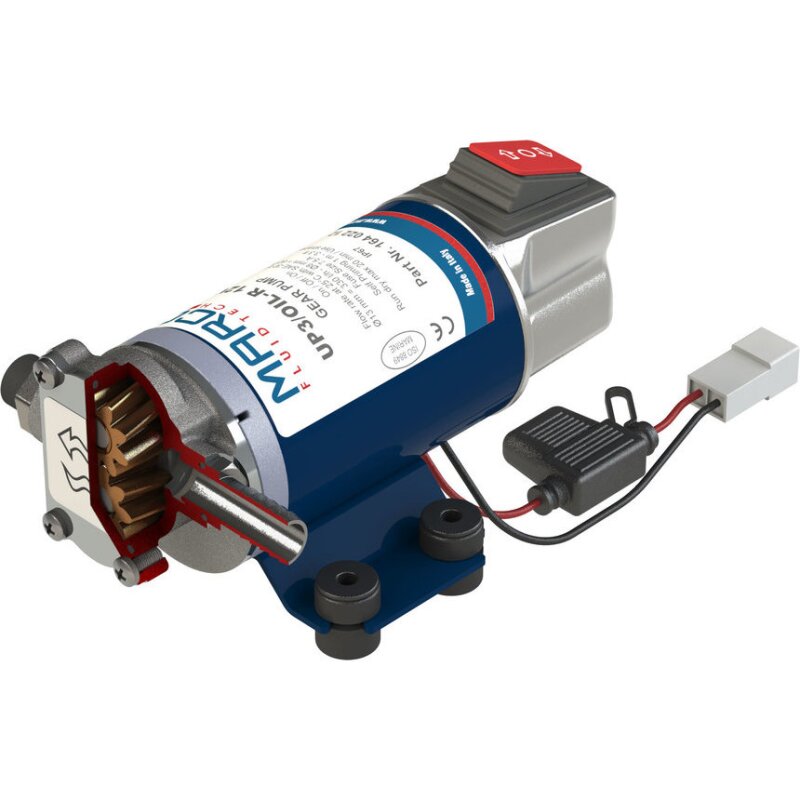

UP3/OIL-R Reversible 24V Gear Pump
The Marco 16402213 UP3/OIL-R is a reversible gear pump designed for oil transfer and other viscous liquids. It combines self-priming operation with a compact, durable construction and a 3-position reversing switch for forward/off/reverse control.
Features
- Reversible operation with on/off 3-position reversing switch
- Self-priming up to 1 m
- Dry-run safe
- Electric pump with bronze gears, ideal for transferring oils or viscous liquids
- Flow rate specified at free outlet (without back pressure)
Technical Specifications
Voltage 24V Flow Rate (Free Outlet) 5.5 L/min Cut-Off Pressure 2 bar Current Consumption 3 A Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Self-Priming Up to 1 m Dimensions (H x W x L) 180 x 88 x 108 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Materials FKM seals; NBR O-rings Gears Bronze Shipping Weight 2.30 kg Product Portfolio Oil change pumps
Product Details
Materials in contact with the pumped liquid include a nickel-plated brass housing, stainless steel spindle, FKM seals, and NBR O-rings.
-
