The MARCO UP3-R electric gear pump (part number 16400812) is a 12V unit rated for 15 L/min free discharge and 2 bar cut-off pressure. It is self-priming up to 1.5 m, dry-run safe, and reversible via an On/Off 3-position reversing switch. The pump uses a nickel-plated brass housing, stainless steel spindle, bronze gears, FKM seals, and an NBR O-ring, with 3/8 inch BSPP connections (3/8 inch / 9.5 mm noted) and a current draw of 6 A; dimensions are 180 x 89 x 114 mm (H x W x L) and shipping weight is 2.30 kg.
- Description
- Ask a Question
-

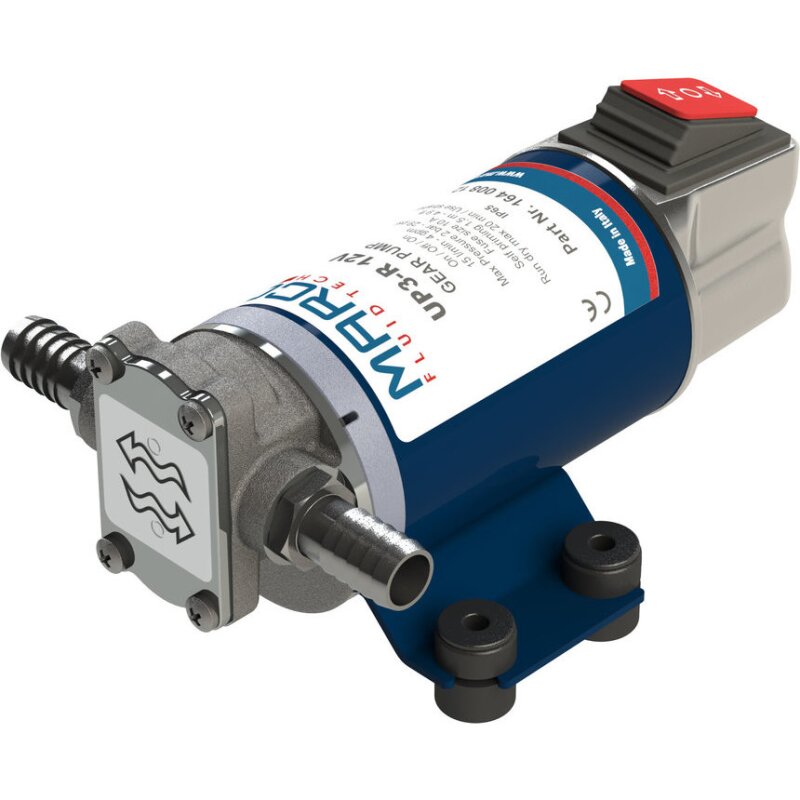

MARCO UP3-R 12V Reversible Gear Pump
The MARCO 16400812 UP3-R is a self-priming electric gear pump designed for transfer applications and listed in the diesel transfer pump portfolio. It provides reversible operation through a 3-position reversing switch and is specified as dry-run safe.
Technical Specifications
Output 15 l/min Flow Rate Condition Free discharge / without back pressure Cut-Off Pressure 2 bar Voltage 12V Current Consumption 6 A Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Dimensions (H x W x L) 180 x 89 x 114 mm Shipping Weight 2.30 kg Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Material Bronze Seal Material FKM O-Ring Material NBR Brand MARCO Product Portfolio Diesel transfer pumps
Features
- Self-priming up to 1.5 m
- Dry-run safe
- Reversible operation
- On/Off 3-position reversing switch
- Listed as ideal for transferring diesel
Product Details
If you are unsure about material compatibility with the pumped liquid, verify compatibility of the pump materials in contact with the fluid before operation.
-
