The MARCO UP3-P series 12V gear pump (part number 16400212) provides up to 15 L/min at free discharge (without back pressure) with a cut-off pressure of 2 bar. It is self-priming up to 1.5 m, draws 6 A, and uses 3/8 inch connections (listed as 3/8 inch (9.5 mm) and 3/8 inch BSPP). The pump features a nickel-plated brass housing, stainless steel spindle, FKM seal, and PEEK helical gears; overall dimensions are 162 x 101 x 166 mm and shipping weight is 2.10 kg.
- Description
- Ask a Question
-

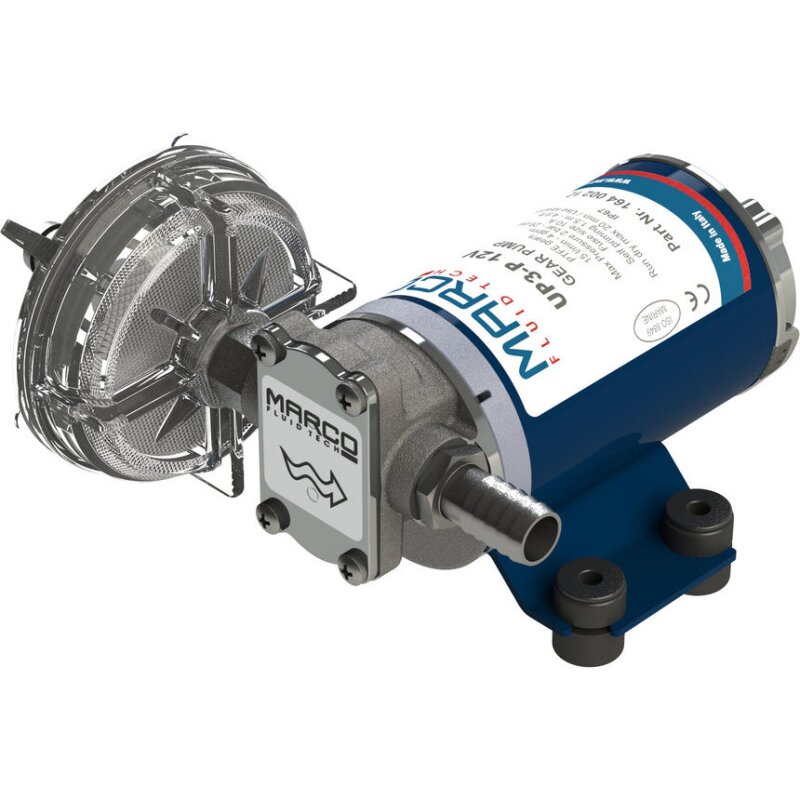

UP3-P 12V Self-Priming Gear Pump
The MARCO 16400212 UP3-P is a compact electric gear pump designed for fluid transfer in water pressure system applications. It is a self-priming unit with helical gears and is specified for low-pressure delivery with convenient 3/8 inch connections.
Technical Specifications
Output 15 L/min Flow Condition Free discharge (without back pressure) Cut-Off Pressure 2 bar Voltage 12V Current Consumption 6 A Self-Priming Up to 1.5 m Connection 3/8 inch (9.5 mm) Connection Standard 3/8 inch BSPP Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type / Material PEEK helical gear Listed Material HNBR Dimensions (H x W x L) 162 x 101 x 166 mm Shipping Weight 2.10 kg Product Portfolio Water Pressure Systems Brand MARCO
Features
- 15 L/min flow rate at free discharge (without back pressure)
- Self-priming up to 1.5 m
- 3/8 inch connections (listed as 3/8 inch (9.5 mm) and 3/8 inch BSPP)
- Nickel-plated brass housing with stainless steel spindle
- FKM seal and PEEK helical gear design
Product Details
If you are unsure about material compatibility between the pump and the liquid being pumped, check compatibility of all wetted materials before operation.
-
