ID
1353877
$ 267.30
1-2 weeks delivery time
-
+
The Marco UP3-P gear pump is a 24V electric self-priming pump rated for 15 liters per minute (free discharge) with a cut-off pressure of 2 bar. It supports self-priming up to 1.5 m, draws 3 A, and uses 3/8 inch connections (listed as 3/8 inch (9.5 mm) and 3/8 inch BSPP). Construction details include a nickel-plated brass housing, stainless steel spindle, FKM seal, and PEEK helical gears, with HNBR noted in the product designation; shipping weight is 2.10 kg and overall dimensions are 162 x 101 x 166 mm (H x W x L).
- Description
- Ask a Question
-

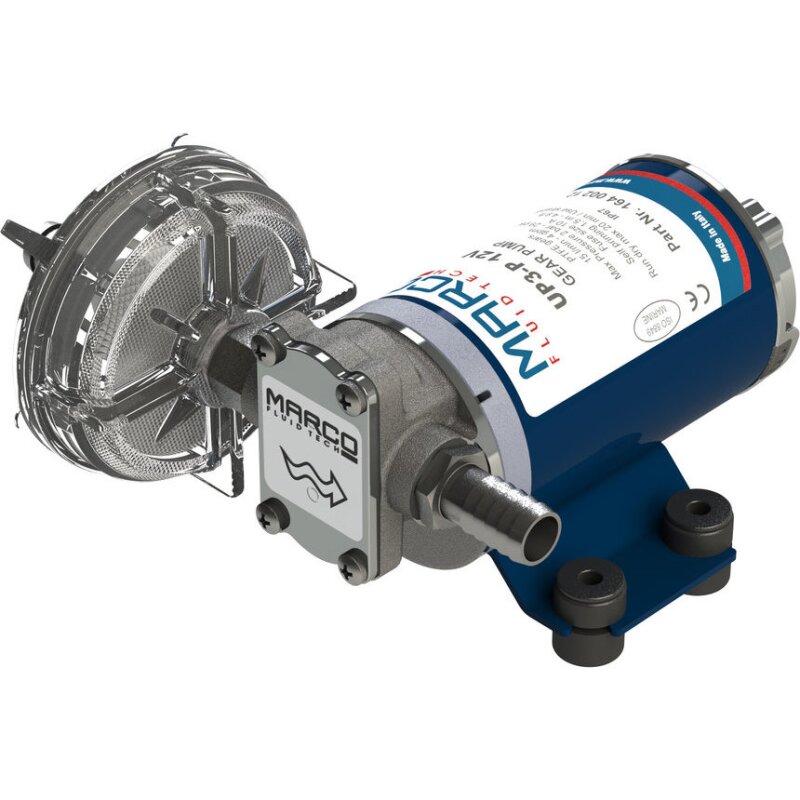

Marco UP3-P 24V Helical Gear Pump
The Marco UP3-P is a compact electric gear pump intended for water pressure system applications. It is designed for self-priming operation and uses helical gears with specified metallic and elastomeric materials for wetted and sealing components.
Technical Specifications
Flow Rate 15 l/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Voltage 24V Current Consumption 3 A Self-Priming Up to 1.5 m Connection 3/8 inch (9.5 mm) Connection Thread 3/8 inch BSPP Dimensions (H x W x L) 162 x 101 x 166 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type / Material PEEK helical gears Material Noted in Designation HNBR Shipping Weight 2.10 kg Brand MARCO Product Portfolio Water Pressure Systems
Features
- Flow rate of 15 liters per minute with free discharge (without back pressure)
- Self-priming up to 1.5 m
- Connections listed as 3/8 inch (9.5 mm)
- Nickel-plated brass housing with stainless steel spindle and FKM seal
- Self-priming electric pump with PEEK helical gears
Product Details
Before putting the pump into operation, check the compatibility of the pump materials in contact with the pumped liquid.
-
