ID
1353875
$ 563.93
1-2 weeks delivery time
-
+
The Marco 1640011C UP3/AC gear pump is a 230V electric self-priming transfer unit rated for 10 L/min (free outlet/without back pressure) with a 6 bar cut-off pressure. It uses a nickel-plated brass housing, bronze gears, a stainless steel spindle, FKM seals, and an NBR O-ring, and it includes 3/8 inch connections (3/8 inch BSPP / 9.5 mm). Current consumption is 0.8 A; dimensions are 283 x 165 x 167 mm and shipping weight is 5.70 kg.
- Description
- Ask a Question
-

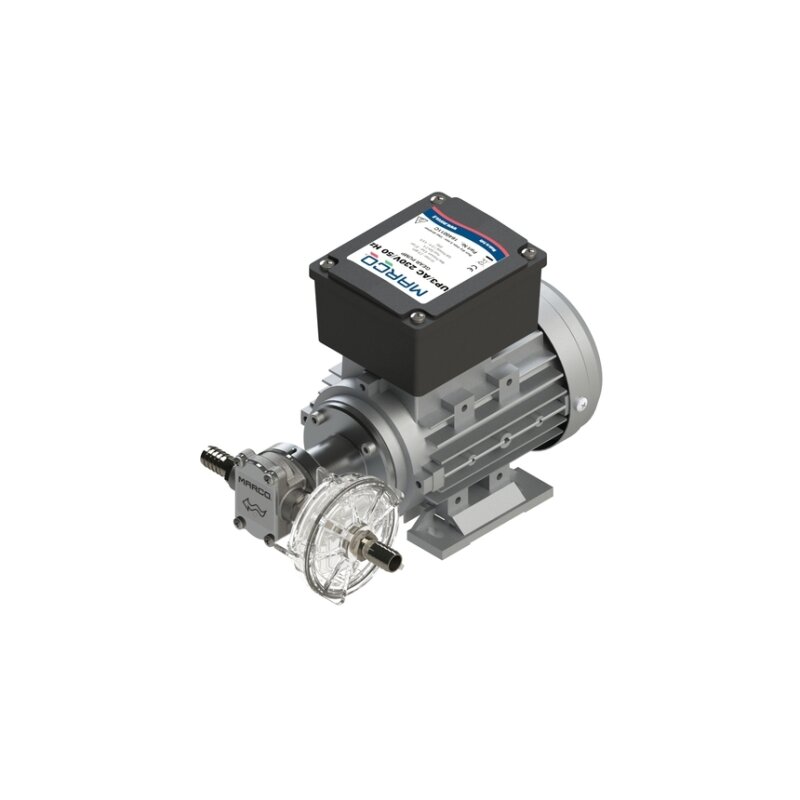

UP3/AC Electric Gear Transfer Pump
The Marco 1640011C is a self-priming electric gear pump designed for liquid transfer, described as ideal for transferring diesel. It is dry-run safe and built with metal gears and fuel-suitable sealing materials; always verify wetted-material compatibility with the pumped medium before operation.
Technical Specifications
Output 10 L/min (free outlet/without back pressure) Cut-Off Pressure 6 bar Voltage 230V Current Consumption 0.8 A Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connection Size (Delivery/Ports) 3/8 inch (9.5 mm) Housing Material Nickel-plated brass Gear Material Bronze Shaft Material Stainless steel Seal Material FKM O-Ring Material NBR Dimensions (H x W x L) 283 x 165 x 167 mm Shipping Weight 5.70 kg Product Portfolio Diesel transfer pumps Brand MARCO
Features
- Self-priming up to 1.5 m
- Dry-run safe
- Gear pump design with bronze gears
- 3/8 inch connection size
Product Details
Materials specified for wetted components include a nickel-plated brass housing, stainless steel spindle, FKM seals, and an NBR O-ring. If there are any uncertainties regarding material compatibility with the pumped liquid, verify compatibility prior to commissioning.
-
