ID
1172849
$ 250.84
1-2 weeks delivery time
-
+
The Marco UP3 self-priming gear pump is a compact 12V DC unit for diesel fuel transfer, rated for 15 L/min flow (free discharge) with a 2 bar cut-off pressure. It draws 6 A and features bronze helical gears, a nickel-plated brass housing, a stainless steel spindle, FKM seals, and an NBR O-ring. Connections are 3/8 inch BSPP, self-priming up to 1.5 m, dry-run safe, reversible, and sized 162 x 101 x 166 mm with a shipping weight of 1.80 kg.
- Description
- Ask a Question
-

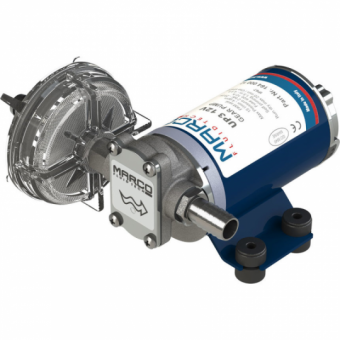

Marco UP3 Self-Priming Diesel Gear Pump
The Marco UP3 is a compact electric gear pump built for diesel fuel transfer. Its bronze helical gearset and nickel-plated brass body are designed for durable operation, and the pump is self-priming for convenient installation and use.
Features
- Self-priming design (up to 1.5 m)
- Dry-run safe
- Reversible operation
- Small size for convenient use
- Suitable for diesel fuel transfer
- Bronze helical gears
- Nickel-plated brass housing
Technical Specifications

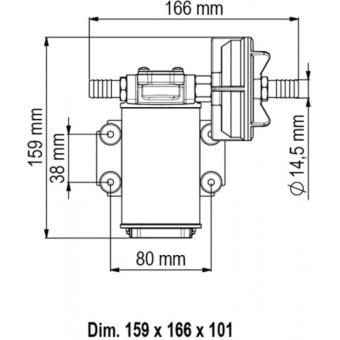

Brand Marco Part Number 16400012 Product Portfolio Diesel transfer pumps Voltage 12V Current Consumption 6 A Flow Rate 15 L/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Dimensions (H x W x L) 162 mm x 101 mm x 166 mm Materials Nickel-plated brass housing; stainless steel spindle; bronze gears; FKM seals; NBR O-ring Shipping Weight 1.80 kg EAN 8022278603211 FNI Product Number 1616222
Product Details
- Alternative to Jabsco Junior Gear Puppy 23220-2012
Note: Before putting the pump into operation, confirm material compatibility between the pump components in contact with the pumped medium and the medium being transferred.
-
