ID
1172838
$ 415.08
1-2 weeks delivery time
-
+
The Marco UP8-RE reversible electronic gear pump is designed for fluid transfer of oil and diesel, with an integrated control panel for reversing flow direction and fine flow-rate adjustment. It delivers 10 L/min (free discharge) with a cut-off pressure of 3.5 bar, is self-priming up to 1.5 m, and uses 3/8 inch (9.5 mm) connections with a 3/8 inch BSPP port specification. The unit is specified for 12/24V operation with current consumption of 11 A (12V) / 5.5 A (24V), and features a nickel-plated brass housing, stainless steel spindle, bronze gears, FKM seals, and an NBR O-ring; dimensions are 194 x 89 x 114 mm with a shipping weight of 2.80 kg.
- Description
- Ask a Question
-

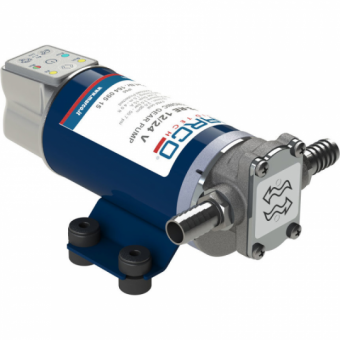

UP8-RE Reversible Electronic Gear Pump
The Marco UP8-RE is a reversible electronic gear pump built for efficient fluid transfer, with an integrated control interface for changing flow direction and adjusting flow rate. It is intended for transferring oil and diesel, using smart control to help prevent cavitation by adapting flow to fluid viscosity.
Technical Specifications

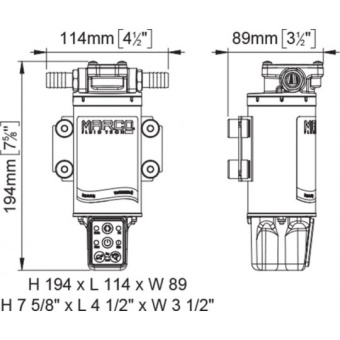

Manufacturer Part Number 16409515 FNI Product Number 1600032 EAN 8022278611162 Pump Type Reversible electronic gear pump Flow Rate 10 L/min (free discharge / without back pressure) Cut-Off Pressure 3.5 bar Voltage 12/24V DC Current Consumption 11 A (12V) / 5.5 A (24V) Self-Priming Up to 1.5 m Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Dimensions (H x W x L) 194 x 89 x 114 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Material Bronze Seals FKM O-Ring NBR Listed Material HNBR Product Portfolio Diesel transfer pumps Shipping Weight 2.80 kg
Features
- Reversible operation with an integrated control panel for switching flow direction
- Manual flow rate adjustment
- Automatic flow adjustment based on fluid viscosity to help prevent cavitation
- Digital thermal protection

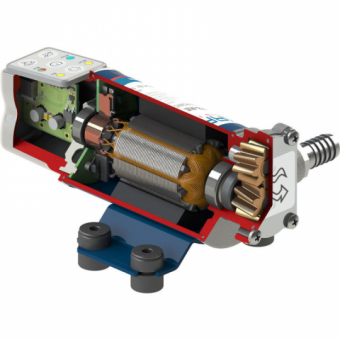

- Heavy-duty gear design for durability
Product Details
- Self-priming electric pump designed for transferring diesel and oil
- Integrated smart keypad for fine adjustment of the flow rate
-
