The MARCO UP9 gear pump is a 12V electric self-priming transfer unit rated for 12 L/min (free discharge) with a 5 bar cut-off pressure. It supports dry running, is reversible, and self-primes up to 1.5 m. The pump uses a nickel-plated brass housing, stainless steel shaft, bronze gears, FKM seals, and an NBR O-ring, with 3/8 inch (9.5 mm) connections and a 3/8 inch BSPP port; current draw is 5 A and dimensions are 198 x 106 x 175 mm (H x W x L).
- Description
- Ask a Question
-

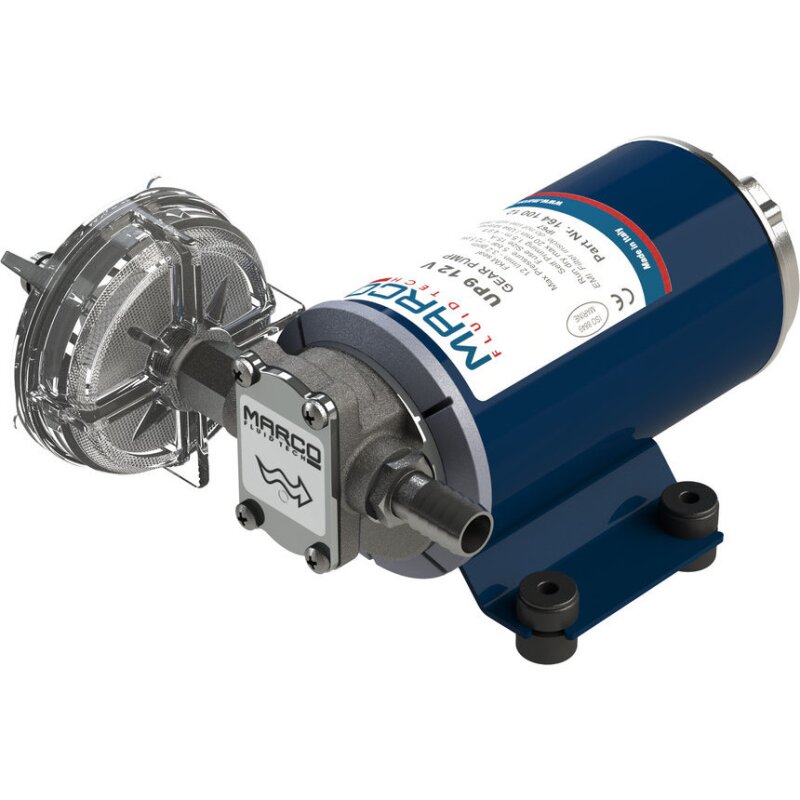

MARCO UP9 12V Gear Transfer Pump
The MARCO 16410012 UP9 is a self-priming electric gear pump intended for liquid transfer applications such as diesel transfer. It is designed for portable and onboard use where compact dimensions, reversible operation, and robust metal construction are required.
Technical Specifications
Flow Rate (Free Discharge) 12 L/min Cut-Off Pressure 5 bar Voltage 12V Current Consumption 5 A Self-Priming Up to 1.5 m Connections (Scope of Delivery) 3/8 inch (9.5 mm) Connection 3/8 inch BSPP Dimensions (H x W x L) 198 x 106 x 175 mm Materials Nickel-plated brass housing; stainless steel shaft; bronze gears; FKM seals; NBR O-ring Product Portfolio Diesel transfer pumps Shipping Weight 3.40 kg
Features
- Self-priming design (up to 1.5 m)
- Dry-run safe
- Reversible operation
- Rated flow of 12 L/min at free discharge (without back pressure)
- Metal construction with bronze gears and nickel-plated brass housing
Product Details
If there is any uncertainty about material compatibility between the pumped medium and the pump components in contact with the liquid, verify compatibility before putting the pump into operation.
-
