ID
1317100
$ 6,448.71
1-2 weeks delivery time
-
+
The Ulex KT-1032H (Showfou KT-1032HE) Pump 400V With MSS offers the same strong performance and specifications as the non-MSS version, including a hardened steel impeller and stainless steel housing, suitable for contaminated water with solids and acidity. It pumps down to 105 mm, delivers flow rates up to 67,500 liters per hour at 10 meters, operates at 400V and 50 Hz with 7.5 kW power, and includes a motor protection switch with a guarantee.
- Description
- Ask a Question
-

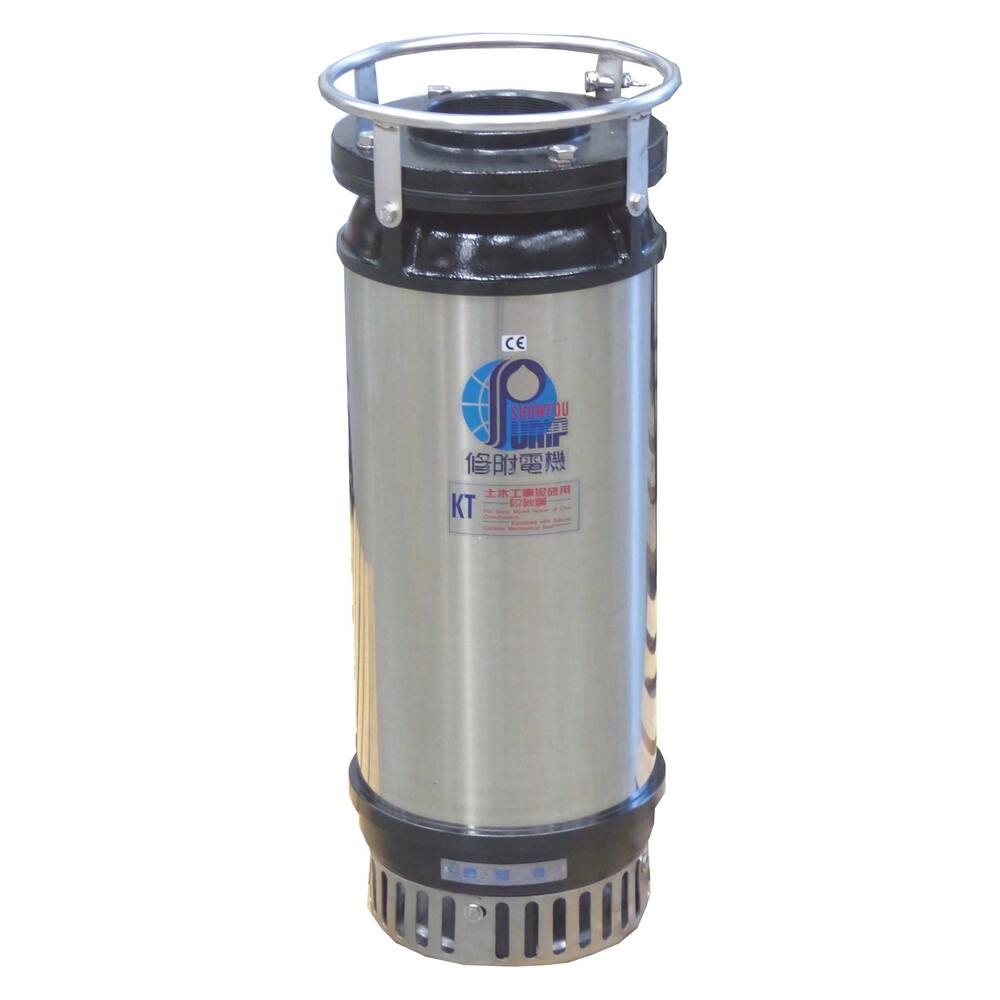

Ulex KT-1032H (Showfou KT-1032HE) Pump 400V With MSS
This sturdy cylinder pump serves various sectors including inland and seagoing shipping, fisheries, construction, and industry, as well as dewatering operations. It is also available in larger capacities for vessel salvage, offering professional quality at an affordable price. This model includes a motor protection switch and a guarantee.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: Valid with MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water containing solids and high acidity, max temperature 40°C
- Performance at various depths:
- 10 metres: 67,500 litres per hour
- 15 metres: 58,500 litres per hour
- 20 metres: 49,500 litres per hour
- 25 metres: 35,400 litres per hour
- 30 metres: 21,000 litres per hour
- Minimum pumping depth: 105 mm
- Connection: 4" internal thread
- Dimensions: Diameter 272 mm, Height 700 mm
- Weight: 91.0 kg
- Amperage: 17.0 A
- Shaft power: 7.5 kW, 10.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.904
- Pipe diameter pressure: 4"
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 15 mm
- Maximum discharge head: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 72,000 L/hour
- Capacity at 5 meters: 69,000 L/hour
-
