ID
1317102
$ 479.19
1-2 weeks delivery time
-
+
The Ulex SC-0312 (Showfou SC-0312E) Pump 12M3 230V is an economical submersible centrifugal pump designed for construction and industrial applications. It features a cast iron open impeller and housing, a dry motor with inbuilt thermal safeguard, and handles contaminated water with particles up to 7 mm. It pumps down to 40 mm, delivers a maximum discharge head of 8 meters, and provides a free flow of 12,000 liters per hour at 230 V AC.
- Description
- Ask a Question
-

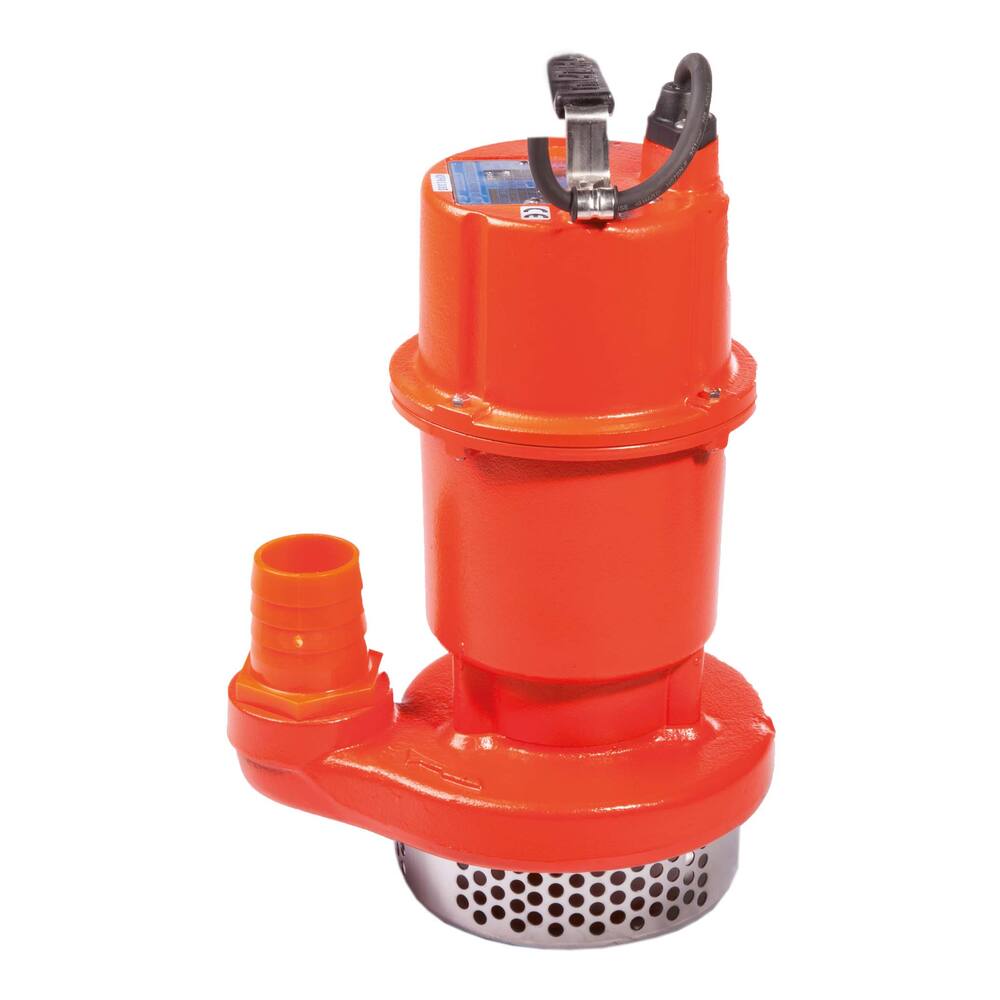

Ulex SC-0312 (Showfou SC-0312E) Pump 12M3 230V
This submersible pump offers an economical solution ideal for construction and industrial applications. It is engineered for handling contaminated water with reliable performance.
- Type: SC
- Colour: orange
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 5 metres
- Impeller material: cast iron
- Impeller housing material: cast iron
- Motor housing material: cast iron
- Pump shaft material: stainless steel 304
- Suitable liquids: contaminated water
- Minimum pumping particle size: 40 mm
- Connection: 1.1/2" internal thread and 1.1/2" hose adaptor
- Dimensions: diameter 255 mm, height 350 mm
- Weight: 15 kg
- Amperage: 3.0 A
- Shaft power: 0.25 kW, 0.33 hp, 3000 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 91.20.312
- Pipe diameter pressure: 1.1/2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water, Water with sand
- Maximum particle size: 7 mm
- Maximum discharge head: 8.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 12000 L/hour
- Capacity at 5 metres submersion: 5400 L/hour
-
