ID
1317104
$ 806.79
1-2 weeks delivery time
-
+
The Ulex SC-112A (Showfou SC-112AE) Pump 20M3 230V is a cost-effective submersible pump ideal for construction and industrial tasks. It has a cast iron open impeller and housing, a dry motor with inbuilt thermal safeguard, and handles contaminated water with particles up to 7 mm. Operating at 230 V AC, it delivers flow rates of 11,400 liters per hour at 10 meters head and 4,800 liters per hour at 15 meters, with a maximum discharge head of 18 meters.
- Description
- Ask a Question
-

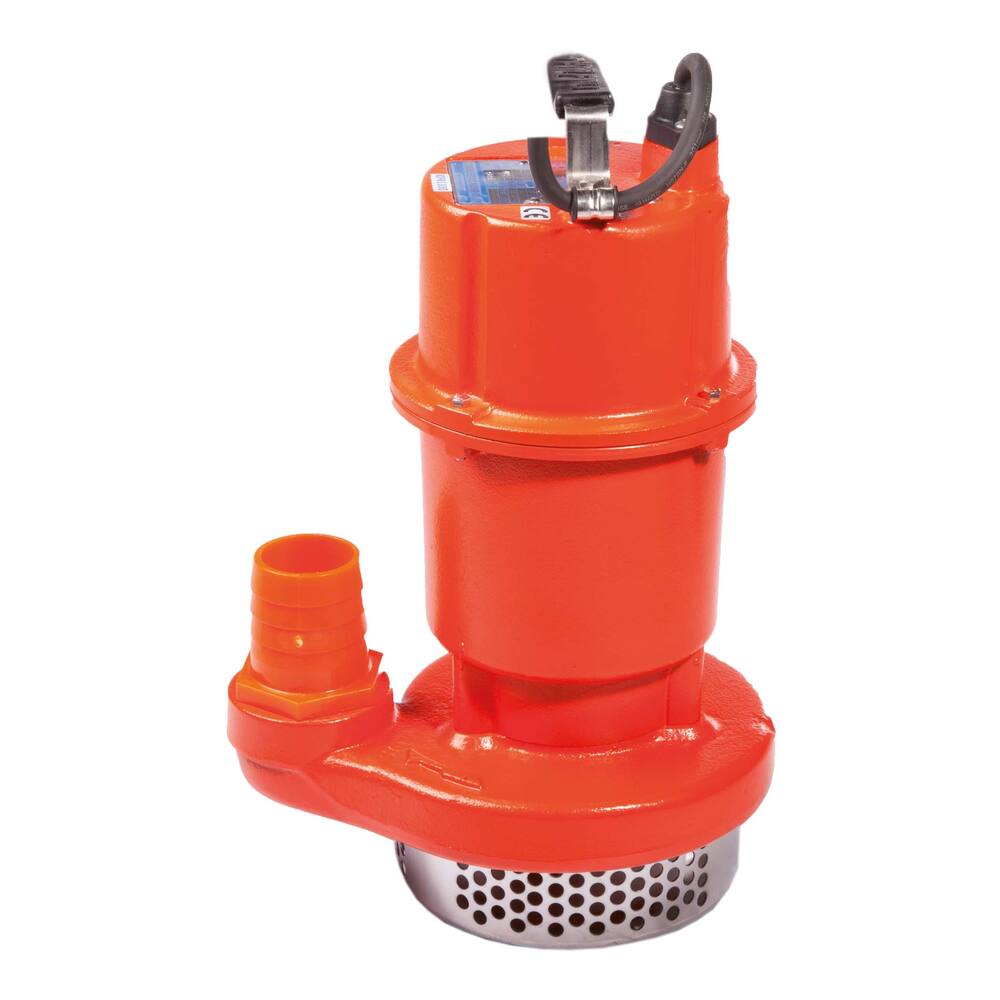

Ulex SC-112A (Showfou SC-112AE) Pump 20M3 230V
This cost-effective submersible pump is perfect for construction and industrial tasks, capable of handling contaminated water with high efficiency and durability.
- Type: SC
- Colour: orange
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 5 metres
- Impeller material: cast iron
- Impeller housing material: cast iron
- Motor housing material: cast iron
- Pump shaft material: stainless steel 304
- Suitable liquids: contaminated water
- Performance at 10 metres head: 11,400 litres per hour
- Performance at 15 metres head: 4,800 litres per hour
- Minimum pumping particle size: 40 mm
- Connection: 2" internal thread and 2" hose adaptor
- Dimensions: diameter 255 mm, height 430 mm
- Weight: 26 kg
- Amperage: 6.4 A
- Shaft power: 0.75 kW, 1.0 hp, 3000 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 91.20.912
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water, Water with sand
- Maximum particle size: 7 mm
- Maximum discharge head: 18.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 20400 L/hour
- Capacity at 5 metres submersion: 16200 L/hour
-
