$ 8,745.43
1-2 weeks delivery time
-
+
The Ulex KT-1532H (Showfou KT-1532HE) Pump 400V Without MSS is a heavy-duty submersible centrifugal pump designed for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It features a hardened steel open impeller and stainless steel housing, handling contaminated water with solids and acidity up to 40°C. It pumps down to 200 mm, delivers flow rates up to 84,000 liters per hour at 10 meters, operates at 400V and 50 Hz with 11 kW power, and does not include a motor protection switch, so no guarantee is provided.
- Description
- Ask a Question
-

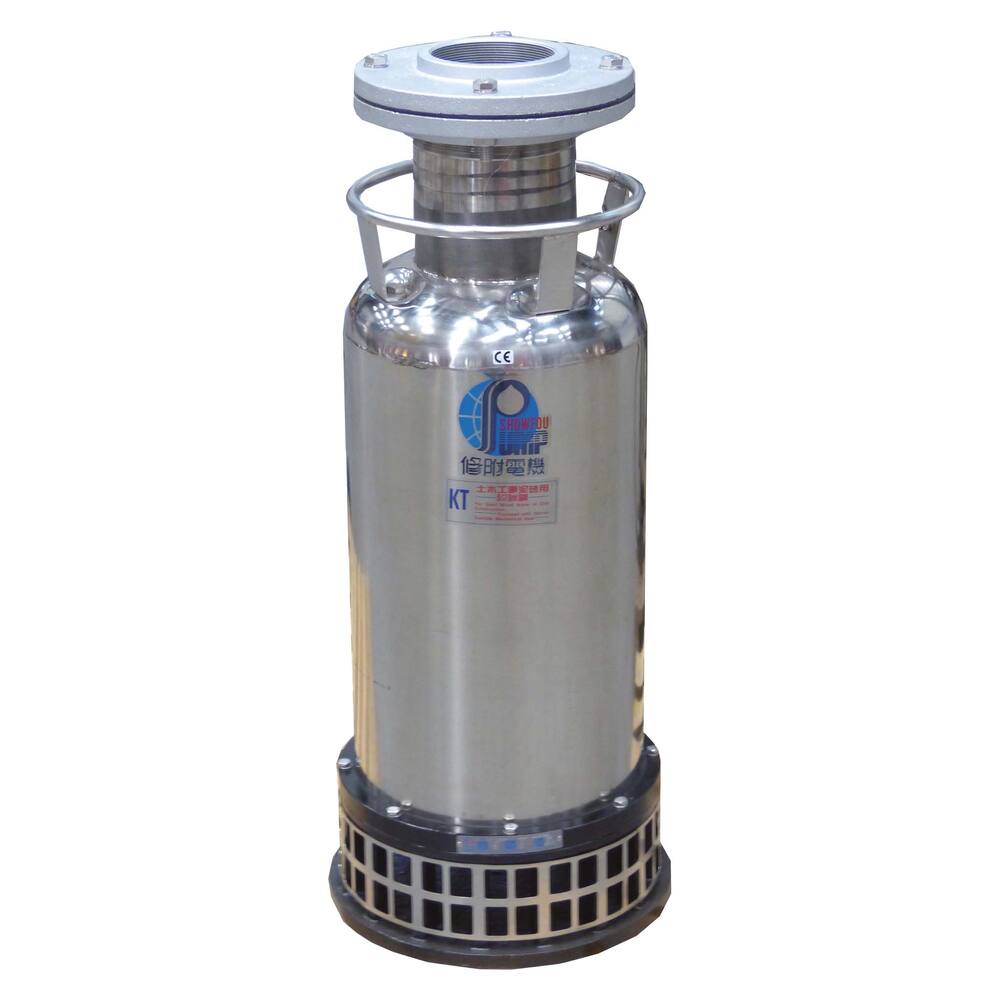

Ulex KT-1532H (Showfou KT-1532HE) Pump 400V Without MSS
This heavy-duty cylinder pump is engineered for a range of applications including inland and seagoing shipping, fisheries, construction, industrial use, and dewatering. It is also offered in larger capacity variants suitable for salvaging vessels, combining professional-grade quality with an economical price point.
- Type: KT
- Colour: Stainless steel with black
- Pump type: Completely submersible centrifugal pump
- Impeller type: Open impeller
- Motor type: Oil filled motor
- Fuse: No inbuilt thermal safeguard
- Guarantee: No guarantee without MSS
- Shaft seal: Lip seal and ceramic on carbon mechanical seal in oil chamber
- Maximum submersion depth: 10 metres
- Material impeller: Hardened steel
- Material impeller housing: Cast iron
- Material motor housing: Stainless steel 304
- Material pump shaft: Stainless steel 304
- Suitable liquids: Contaminated water containing solids and high acidity, max temperature 40°C
- Performance at various depths:
- 10 metres: 84,000 litres per hour
- 15 metres: 75,000 litres per hour
- 20 metres: 63,000 litres per hour
- 25 metres: 51,000 litres per hour
- 30 metres: 39,000 litres per hour
- 35 metres: 15,500 litres per hour
- Minimum pumping depth: 200 mm
- Connection: 4" internal thread
- Dimensions: Diameter 335 mm, Height 785 mm
- Weight: 129.0 kg
- Amperage: 26.0 A
- Shaft power: 11.0 kW, 15.0 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 90.33.953
- Pipe diameter pressure: 4"
- Model: Without motor protection switch (No guarantee)
- Pump type: Submersible pump
- Medium: Water
- Particle size: 22 mm
- Maximum discharge head: 38.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 96,000 L/hour
- Capacity at 5 meters: 90,000 L/hour
-
