The Ulex SC-0512 (Showfou SC-0512E) Pump 15M3 230V is an affordable submersible centrifugal pump designed for construction and industrial use. It features a cast iron open impeller and housing, a dry motor with inbuilt thermal safeguard, and handles contaminated water with particles up to 7 mm. It operates at 230 V AC, pumps down to 40 mm, delivers a maximum discharge head of 11 meters, and provides a free flow of 15,000 liters per hour.
- Description
- Ask a Question
-

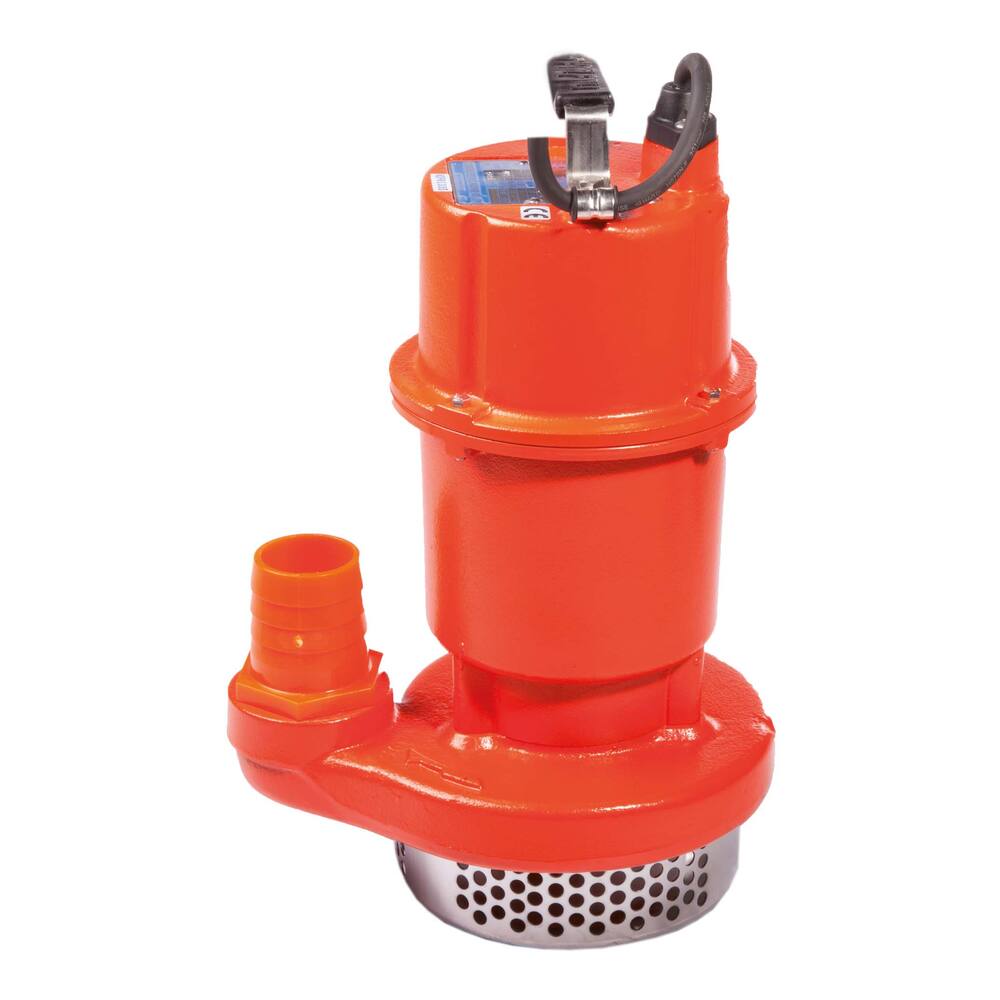

Ulex SC-0512 (Showfou SC-0512E) Pump 15M3 230V
This affordable submersible pump is well-suited for construction and industrial use, designed to efficiently handle contaminated water while ensuring durability.
- Type: SC
- Colour: orange
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 5 metres
- Impeller material: cast iron
- Impeller housing material: cast iron
- Motor housing material: cast iron
- Pump shaft material: stainless steel 304
- Suitable liquids: contaminated water
- Minimum pumping particle size: 40 mm
- Connection: 2" internal thread and 2" hose adaptor
- Dimensions: diameter 255 mm, height 410 mm
- Weight: 18 kg
- Amperage: 4.0 A
- Shaft power: 0.375 kW, 0.5 hp, 3000 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 91.20.512
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water, Water with sand
- Maximum particle size: 7 mm
- Maximum discharge head: 11.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 15000 L/hour
- Capacity at 5 metres submersion: 9600 L/hour
-
