The Stork Pump KGEF 11-3 400 Volt is a well-established self-priming centrifugal pump designed for dirty water tasks like bilge pumping and deck washing. It includes a short circuit motor, open or closed polyamide impeller, and ceramic on carbon shaft seal. Suitable for contaminated liquids including fuels up to 95°C, it operates at 400 V and delivers a maximum discharge head of 15.5 meters.
- Description
- Ask a Question
-

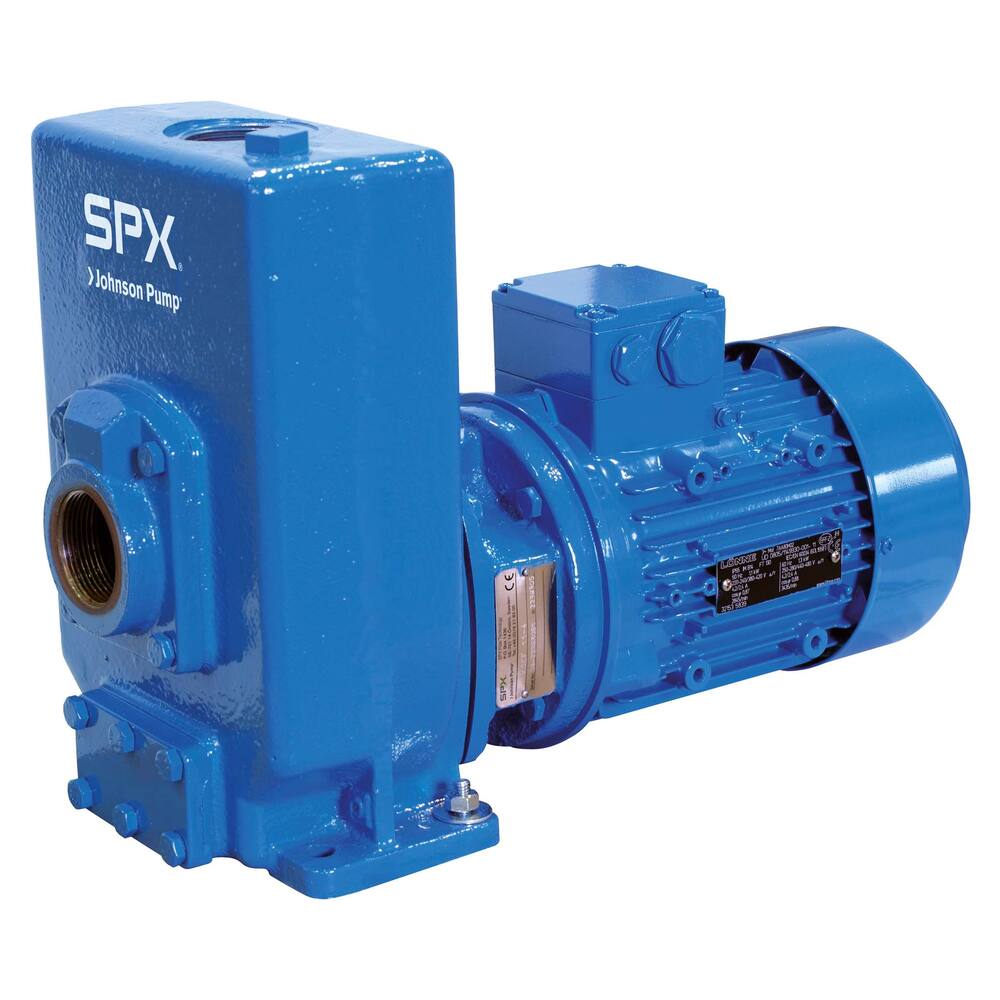

Stork Pump KGEF 11-3 400 Volt
This well-established self-priming pump works efficiently with dirty water and is suitable for bilge, deck wash, dewatering, sprinkling, and fire extinguishing applications.
- Type: KGEF
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open or closed impeller
- Motor type: short circuit motor
- Fuse: not inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: polyamide
- Material pump housing: cast iron (bronze available on request)
- Material pump shaft: chromed steel
- Liquids handled: contaminated liquids such as water, sea water, diesel, gas oil, and fuel oil (max temperature +95°C)
- Performance:
- 10 m head: 11,000 L/h
- 15 m head: 3,500 L/h
- Impeller: open polyamide impeller
- Particle size: up to 7.5 mm
- Connections: 1.1/4" internal thread
- Dimensions (LxWxH): 412 x 190 x 255 mm
- Weight: 24 kg
- Amperage: 1.8 A+
- Shaft power: 0.75 kW, 1 hp, 2850 rpm
- Product code: 92.05.113
- Suction head: 8.4 m
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 7 mm
- Discharge head Max.: 15.5 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Notes:
- Complete Ni-resist also available
- Always verify amperage on motor nameplate at startup due to small motor variations
-
