ID
1317141
$ 3,568.96
1-2 weeks delivery time
-
+
The Speck PM30 piston pump delivers maximum capacity of 3,000 liters per hour for the most demanding pressurized water applications. This heavy-duty pump serves large commercial vessels, industrial operations, and extensive facilities requiring high-volume water supply with robust construction and 6-bar maximum operating pressure.
- Description
- Ask a Question
-

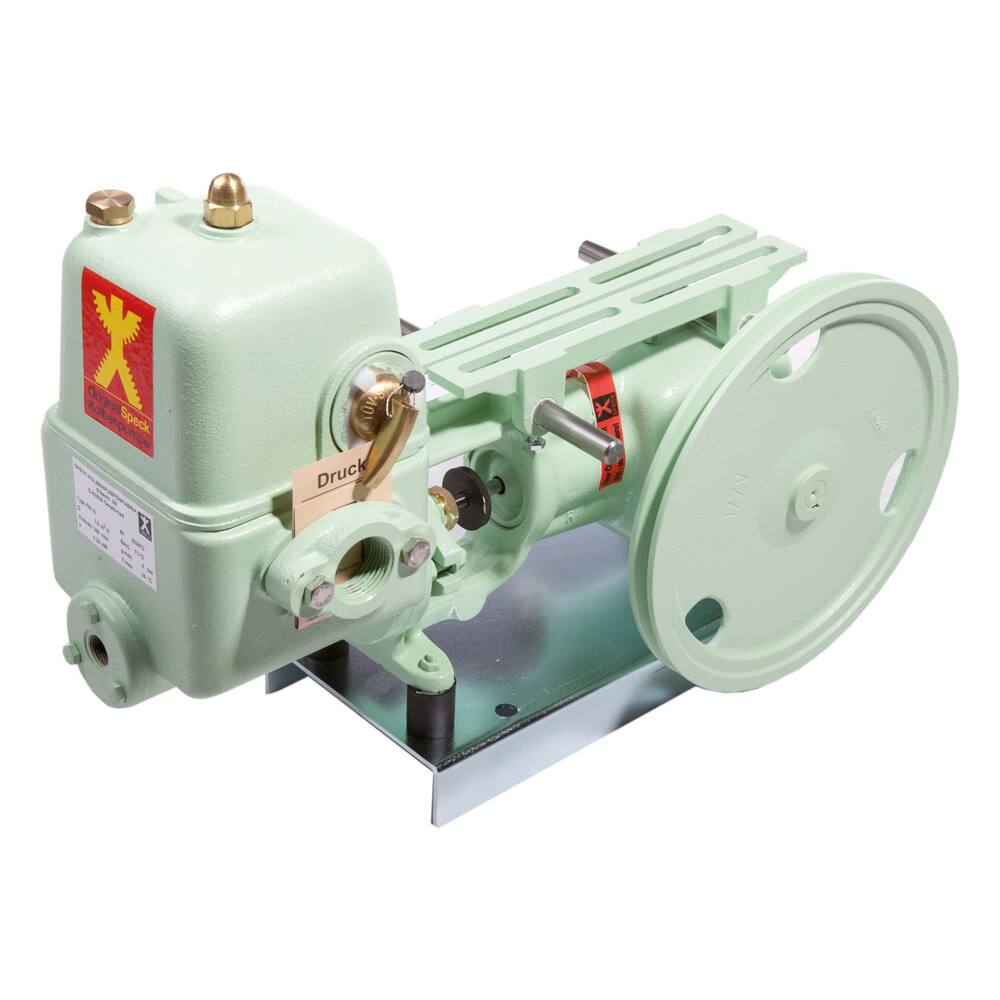

Speck PM30 - Piston Pump
The Speck PM30 is a professional-grade plunger pump designed for pressurized water systems across various applications, including commercial shipping, recreational boats, residential use, farms, and businesses. Renowned as a leading choice in inland shipping, it ensures reliable water supply with robust construction and efficient performance.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Rotation: left-hand, visible on pulley
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bush: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Operating pressure: maximum 6 bar
- Voltage: depends on separate motor
- Capacity: 3,000 litres per hour at 4.0 bar
- Connections: 1.1/4" internal thread
- Dimensions (L×W×H): 690 x 320 x 510 mm
- Weight: 55 kg
- Shaft power: 0.55 kW, 0.75 hp at 1450 rpm
- Must be installed by an accredited installer
- Product code: 97.85.002
- Suction head: 8.0 m
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Pump type: Piston pump
- Medium: Water
- Particle size: 2 mm
- Max discharge head: 40.0 m
- Free flow: 3000 L/hour
- Capacity at 5 meter: 3000 L/hour
-
