Speck Pressurized Water System PM15 + 100L Galvanised Vessel Without Motor

ID 1317128

$ 4,211.60

1-2 weeks delivery time

- +

Add to cart

This higher capacity water pressurization system features the PM15 pump unit without motor, delivering 1,500 liters per hour at 3.5 bar pressure through a 100L galvanized vessel. The system supports 2-5 draw-off points and includes all components except the motor, allowing customization for various marine applications from 12V DC to 400V three-phase power.

Description
Ask a Question

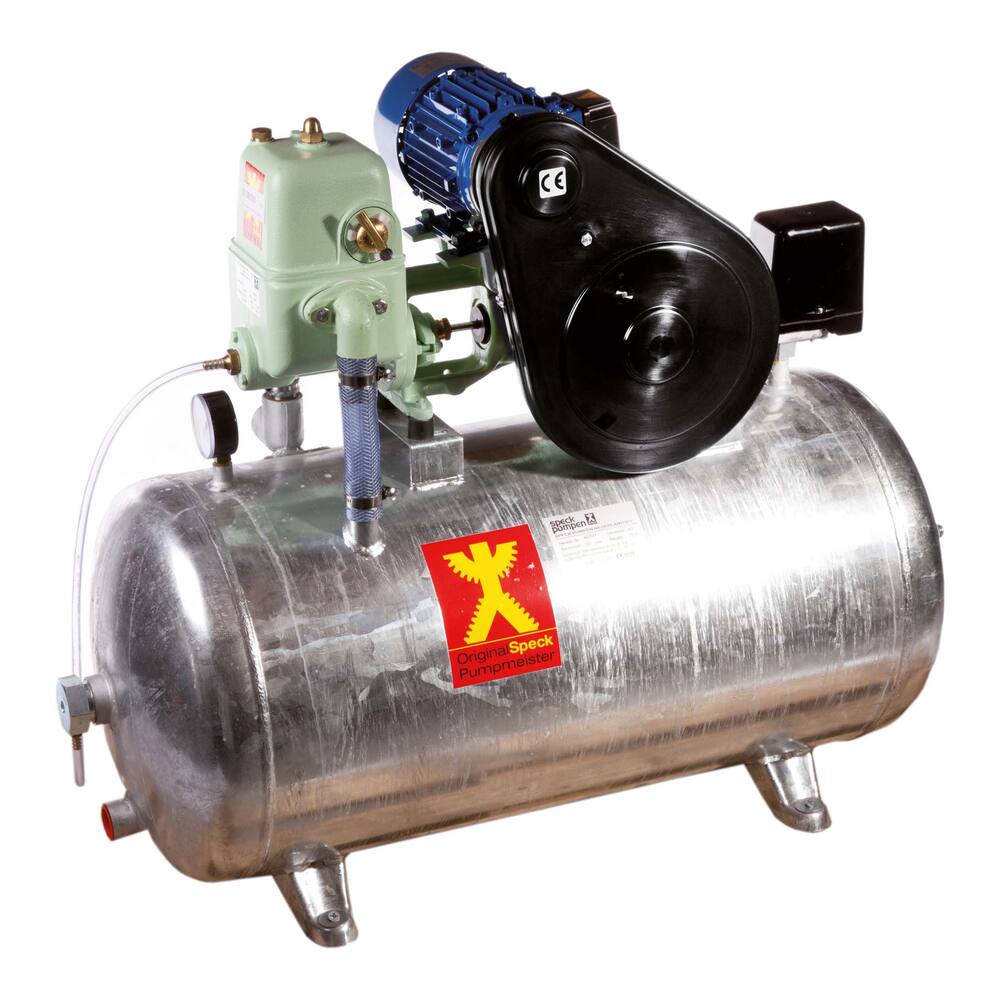

Speck Pressurized Water System PM15 + 100L Galvanised Vessel Without Motor

This professional pressurized water system, favored for inland and seagoing shipping as well as recreational craft, has been a leading choice for years. It includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump, but is supplied without a motor.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor (motor not included)
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Voltages available: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,500 litres per hour at 3.5 bar
- Pressure vessel: horizontal 100 l. galvanized vessel with approx. 15 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 5 draw off points* (not in use simultaneously)
- Dimensions (lxwxh): 1000 x 430 x 760 mm**
- Weight: 57 kg**
- Amperage: 24 V - 17.4 A, 250 watt; 230 V - 4.4 A; 400 V - 1.1 A
- Shaft power: 24V: 0.25 kW, 0.33 hp at 1,450 rpm; 230V, 400V: 0.37 kW, 0.50 hp at 1,450 rpm
- Must be installed by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.69.002
- Number of tapping points: Geyser and 4-5 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: - (without motor)
- Protection class: -
- ATEX: No
- Free flow (L/Hour): 1500
- Capacity 5 meter (L/hour): 1500
