This 400V three-phase version offers professional water pressurization with increased 200L vessel capacity for demanding marine applications. The complete system includes all essential components and is designed to provide reliable water pressure for geyser and multiple draw-off points in larger recreational craft and commercial vessels.
- Description
- Ask a Question
-

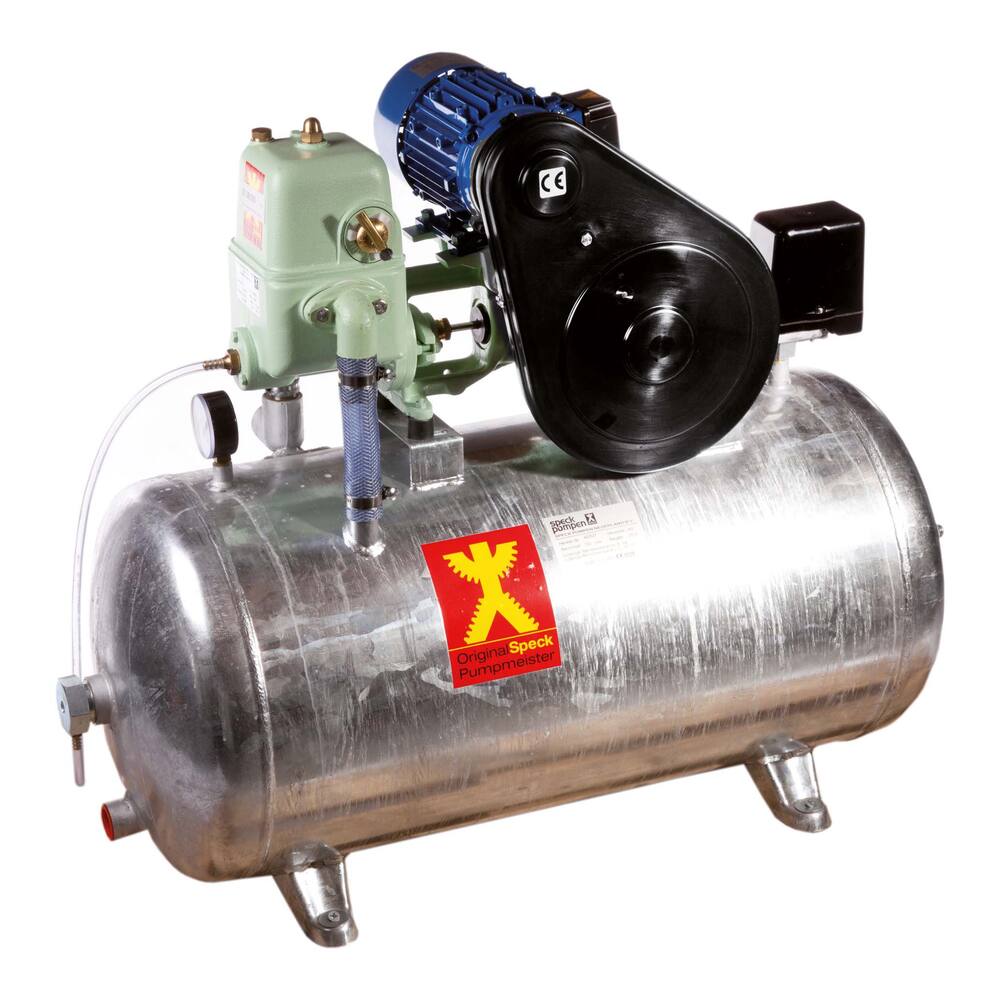

Speck Pressurized Water System PM10 + 200L Galvanised Vessel 400V
This professional water pressurization setup is ideal for inland shipping, seagoing vessels, and recreational boats. It remains a top choice for pressurized water systems in inland navigation, supplied with essential components including a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 200 l. galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 4 draw off points* (not in use simultaneously)
- Dimensions (lxwxh): 1300 x 520 x 880 mm**
- Weight: 75 kg**
- Amperage: 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be installed by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.68.010
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
