ID
1317135
$ 6,996.35
1-2 weeks delivery time
-
+
This high-capacity Speck PM20 pressurized water system with 230V motor delivers 2,000 liters per hour for demanding applications. The complete system with 300L vessel is designed for larger vessels, homes, and commercial applications requiring higher water volumes and consistent pressure for multiple water points.
- Description
- Ask a Question
-

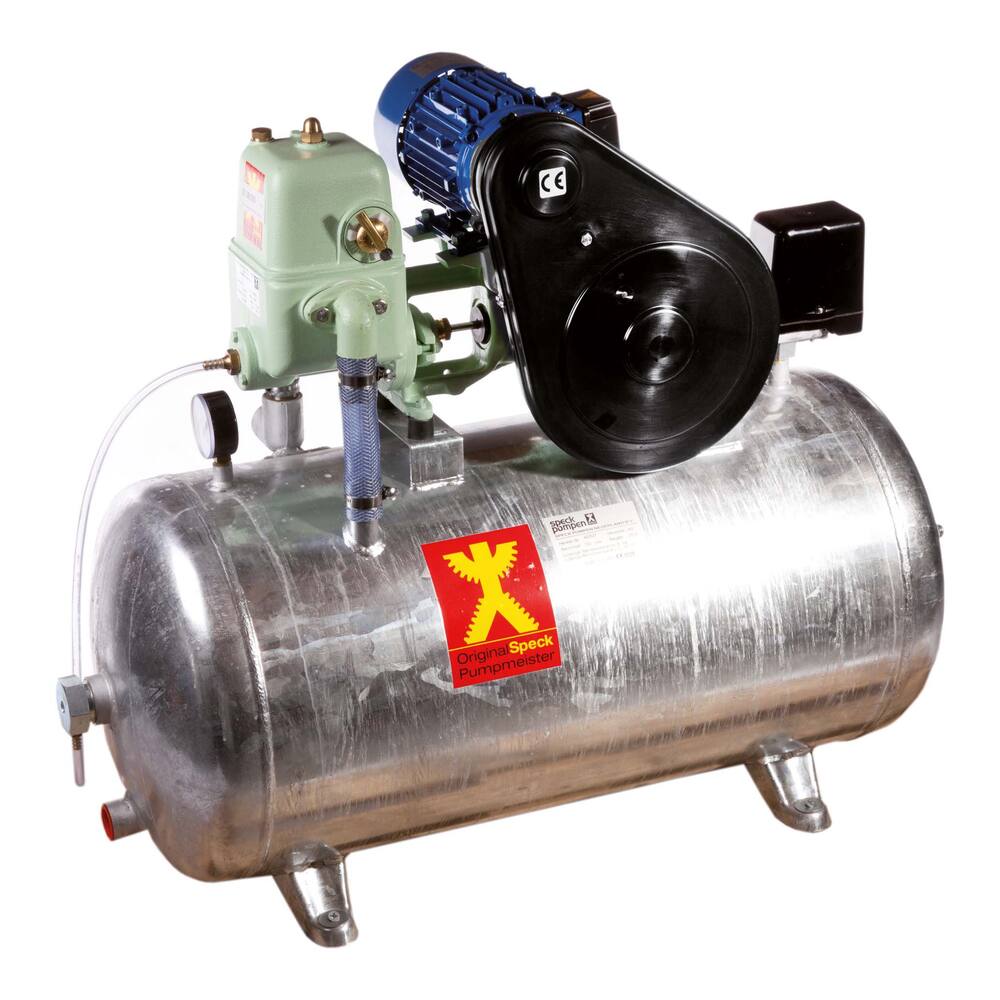

Speck Pressurized Water System PM20 + 300L Galvanised Vessel 230V
This professional water pressurization system is designed for inland shipping, seagoing vessels, and recreational craft. It has long been the leading choice in inland shipping for pressurized water solutions.
- Includes pressure vessel, non-return valve, manometer, pressure switch, and electric pump
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bush: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Capacity: 2,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 300 l galvanized with approx. 40 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 6 draw off points (not in use simultaneously)
- Dimensions (lxwxh): 1400 x 580 x 980 mm (depends on motor type)
- Weight: 97 kg (depends on motor type)
- Amperage: 230 V, 4.4 A
- Shaft power: 0.37 kW, 0.50 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.72.008
- Number of tapping points: geyser and 6 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Max discharge head: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: not included
- Free flow: 2000 L/hour
- Capacity at 5 meter: 2000 L/hour
-
