This professional-grade Speck PM15 system combines a 200L galvanized pressure vessel with a 400V brushless motor for demanding marine and inland applications. The unit delivers 1,500 liters per hour at 3.5 bar pressure and includes all essential components for immediate installation, serving as a leading choice in inland shipping systems.
- Description
- Ask a Question
-

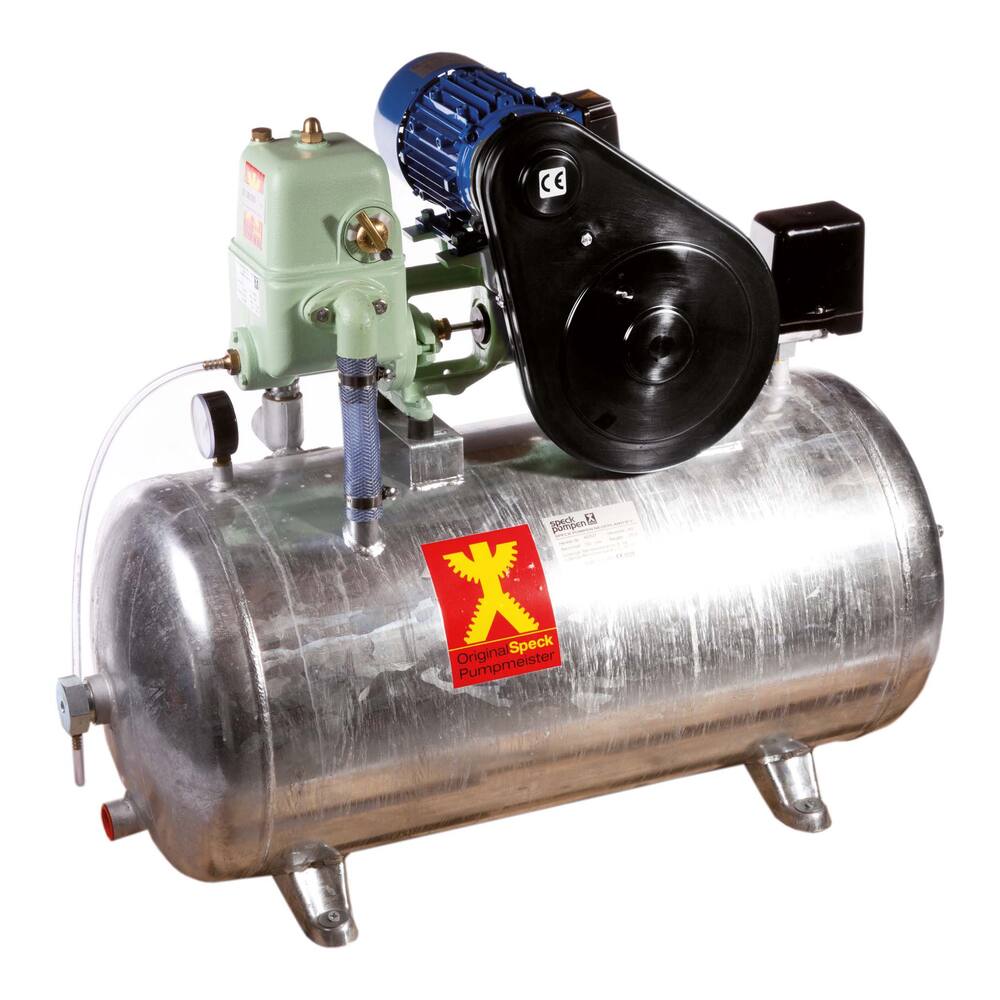

Speck Pressurized Water System PM15 + 200L Galvanised Vessel 400V
This professional pressurized water system suits inland, seagoing shipping, and recreational craft applications. It has been a best seller in inland shipping for years and comes with a galvanized pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Capacity: 1,500 litres per hour at 3.5 bar
- Pressure vessel: horizontal 200 l galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Connections: 1" internal thread
- Dimensions (lxwxh): 1300 x 550 x 920 mm**
- Weight: 83 kg**
- Amperage: 400 V, 1.1 A
- Shaft power 230V, 400V: 0.37 kW, 0.50 hp at 1,450 rpm
- Product code: 97.70.010
- Number of tapping points: Geyser and 4-5 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Max discharge head: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 1500
- Capacity at 5 meter (L/hour): 1500
- Note: Must be connected by an accredited installer. Dimensions and weight depend on motor type. Most dimensions relate to 24 volt motor.
-
