ID
1317134
$ 6,368.61
1-2 weeks delivery time
-
+
The Speck PM20 system with 300L galvanized vessel without motor offers increased capacity for larger water distribution needs. With 2,000 liters per hour capacity at 3.5 bar pressure, this unit accommodates geyser systems and up to 6 draw-off points, providing flexibility through motor compatibility with multiple voltage options.
- Description
- Ask a Question
-

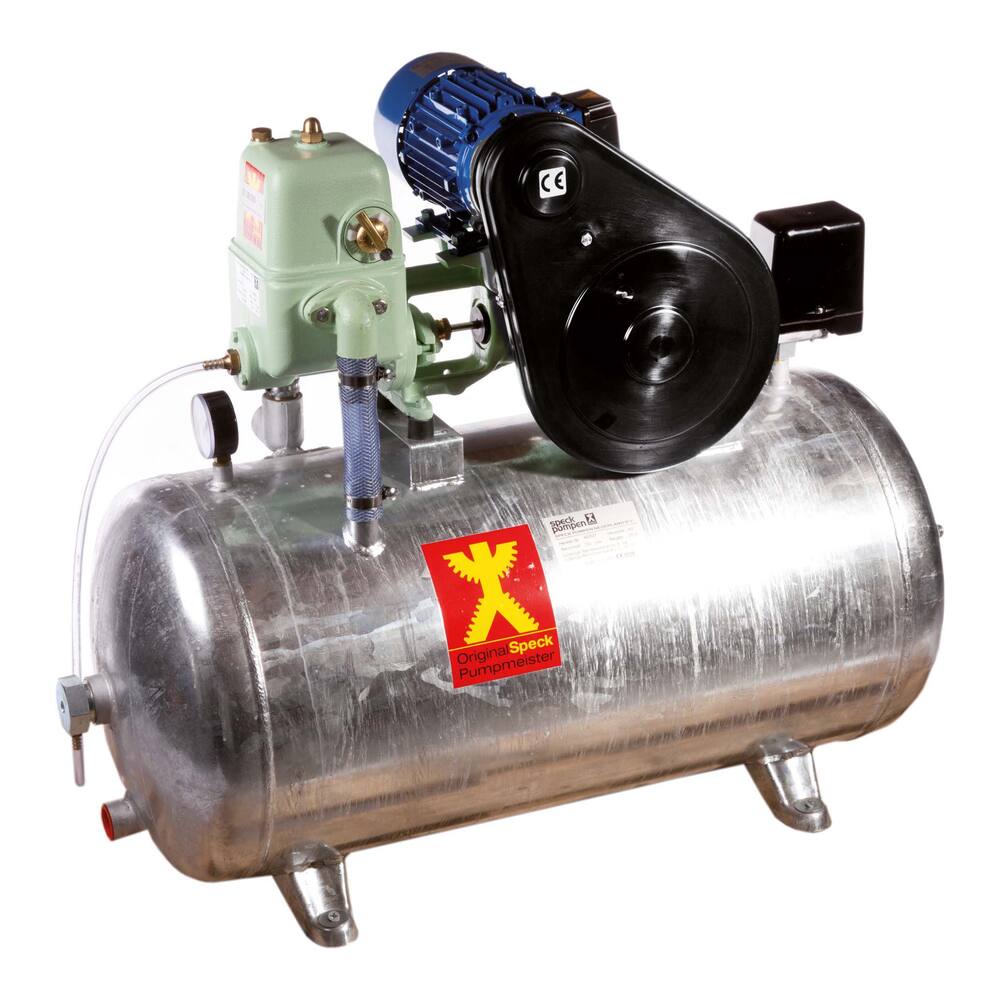

Speck Pressurized Water System PM20 + 300L Galvanised Vessel Without Motor
This professional water pressurization system is suitable for inland, seagoing shipping, and recreational crafts, known for its extensive use in inland shipping. It includes a galvanized pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump, but is supplied without a motor.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Voltages: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 2,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 300 l galvanized vessel with approx. 40 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 6 draw off points*
- Dimensions (lxwxh): 1400 x 580 x 980 mm**
- Weight: 97 kg**
- Amperage: 230 V, 4.4 A and 400 V, 1.7 A
- Shaft power: 0.37 kW, 0.50 hp at 1,450 rpm
- Product code: 97.72.002
- Number of tapping points: Geyser and 6 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Max discharge head: 35.0 m
- Protection class: IP68
- Free flow (L/Hour): 2000
- Capacity at 5 meter (L/hour): 2000
- Note: Must be connected by an accredited installer. Dimensions and weight depend on motor type. Most dimensions relate to 24 volt motor.
- * Not in use simultaneously.
-
