The Speck Pressurized Water System PM15 with 100L galvanized vessel is a high-performance system designed for inland and seagoing shipping vessels. This compact unit features a self-priming plunger pump with 1,500 liters per hour capacity at 3.5 bar pressure, complete with pressure vessel, non-return valve, and 400V brushless motor for reliable water pressurization.
- Description
- Ask a Question
-

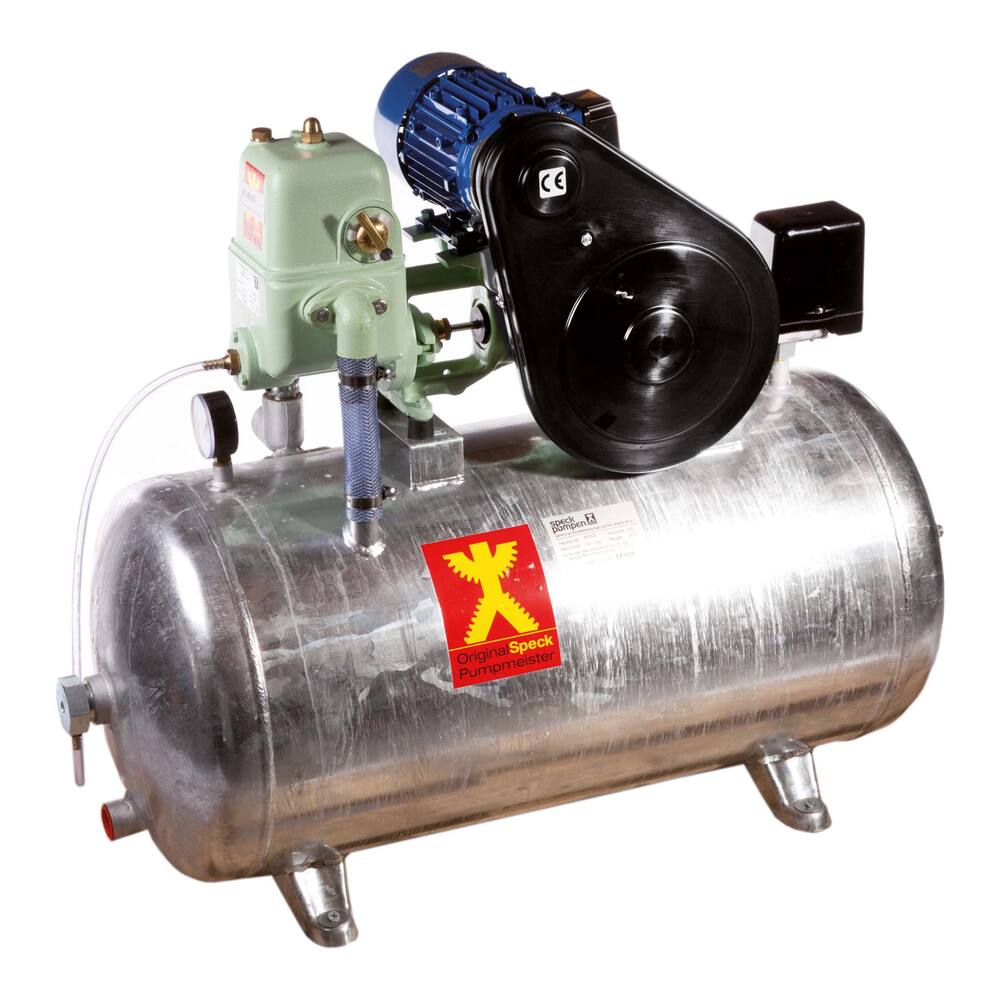

Speck Pressurized Water System PM15 + 100L Galvanised Vessel 400V
This high-performance pressurized water system caters to inland and seagoing shipping and recreational vessels. It is a leading choice in inland shipping and includes a pressure vessel, non-return valve, manometer, pressure switch, and optional electric pump.
- Type: PM (Pumpmeister)
- Colour: Light green
- Pump type: Self-priming plunger pump
- Impeller type: Plunger (piston)
- Motor type: Brushless motor
- Shaft seal: Stop bush
- Material plunger: Simrit
- Material cylinder bushing: Brass
- Material pump housing: Cast iron
- Material pump shaft: Stainless steel
- Liquids: Clean water
- Capacity: 1,500 litres per hour at 3.5 bar
- Pressure vessel: Horizontal 100 l galvanized vessel with approx. 15 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: Geyser and 2 to 5 draw off points* (not in use simultaneously)
- Dimensions (lxwxh): 1000 x 430 x 760 mm**
- Weight: 57 kg**
- Amperage: 1.1 A at 400 V
- Shaft power: 0.37 kW (0.50 hp) at 1,450 rpm, available in 230V and 400V
- Must be installed by an accredited installer
- Product code: 97.69.010
- Number of tapping points: Geyser and 4-5 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Maximum discharge head: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 1500 L/hour
- Capacity at 5 meters: 1500 L/hour
-
