ID
1317126
$ 5,444.71
1-2 weeks delivery time
-
+
This 230V AC version of the larger capacity system provides professional water pressurization for marine and recreational vessels with increased water storage requirements. The system features a 200L galvanized pressure vessel and self-priming plunger pump, delivering 1,000 liters per hour at 3.5 bar pressure for geyser and 2-4 draw-off points.
- Description
- Ask a Question
-

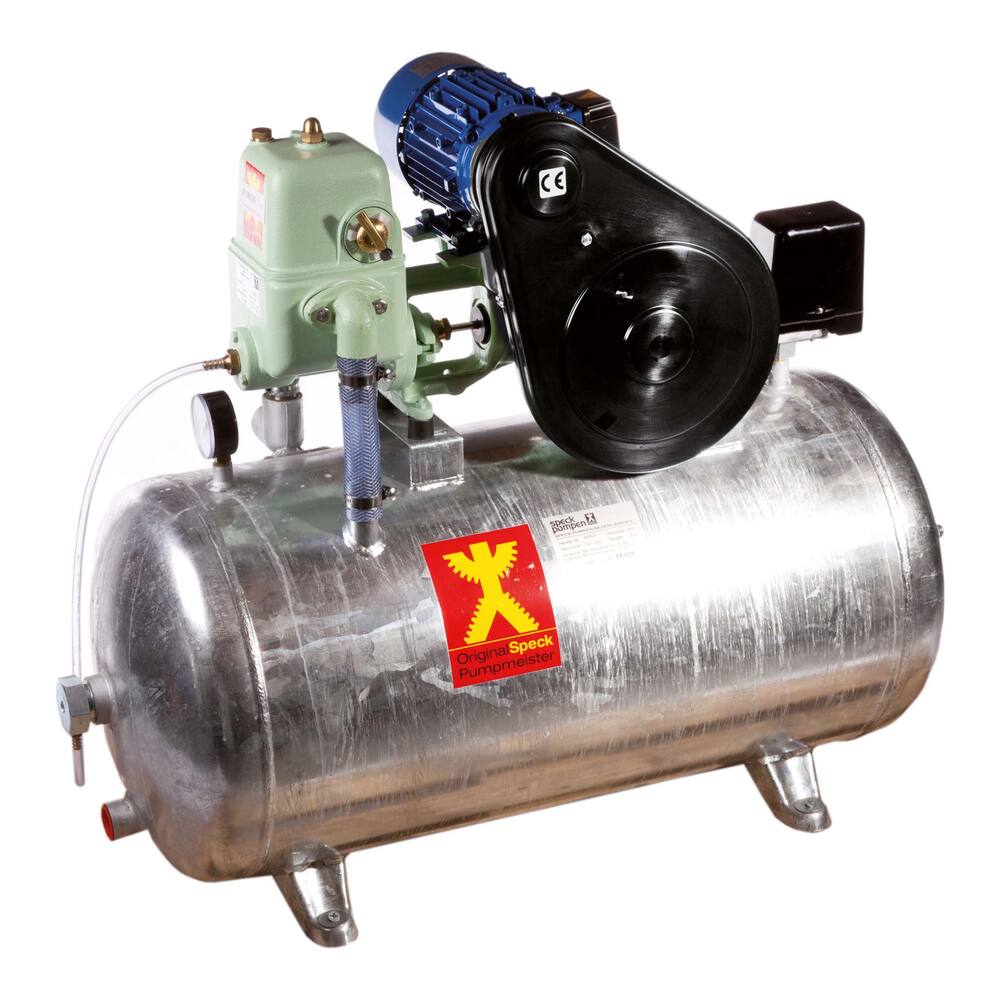

Speck Pressurized Water System PM10 + 200L Galvanised Vessel 230V
Designed for inland and seagoing shipping as well as recreational craft, this professional water pressurization system has long been a best-seller. It includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 200 l. galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 4 draw off points* (not in use simultaneously)
- Dimensions (lxwxh): 1300 x 520 x 880 mm**
- Weight: 75 kg**
- Amperage: 3.1 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be installed by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.68.008
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
