Speck Pressurized Water System PM15 + 200L Galvanised Vessel Without Motor

ID 1317131

$ 4,908.25

1-2 weeks delivery time

- +

Add to cart

This versatile Speck PM15 system with 200L galvanized vessel offers flexibility as it comes without the motor, allowing customization with various voltage options including 12V, 24V, 230V, or 400V. It maintains the same 1,500 liters per hour capacity and professional-grade construction, making it suitable for inland and marine applications where motor selection flexibility is needed.

Description
Ask a Question

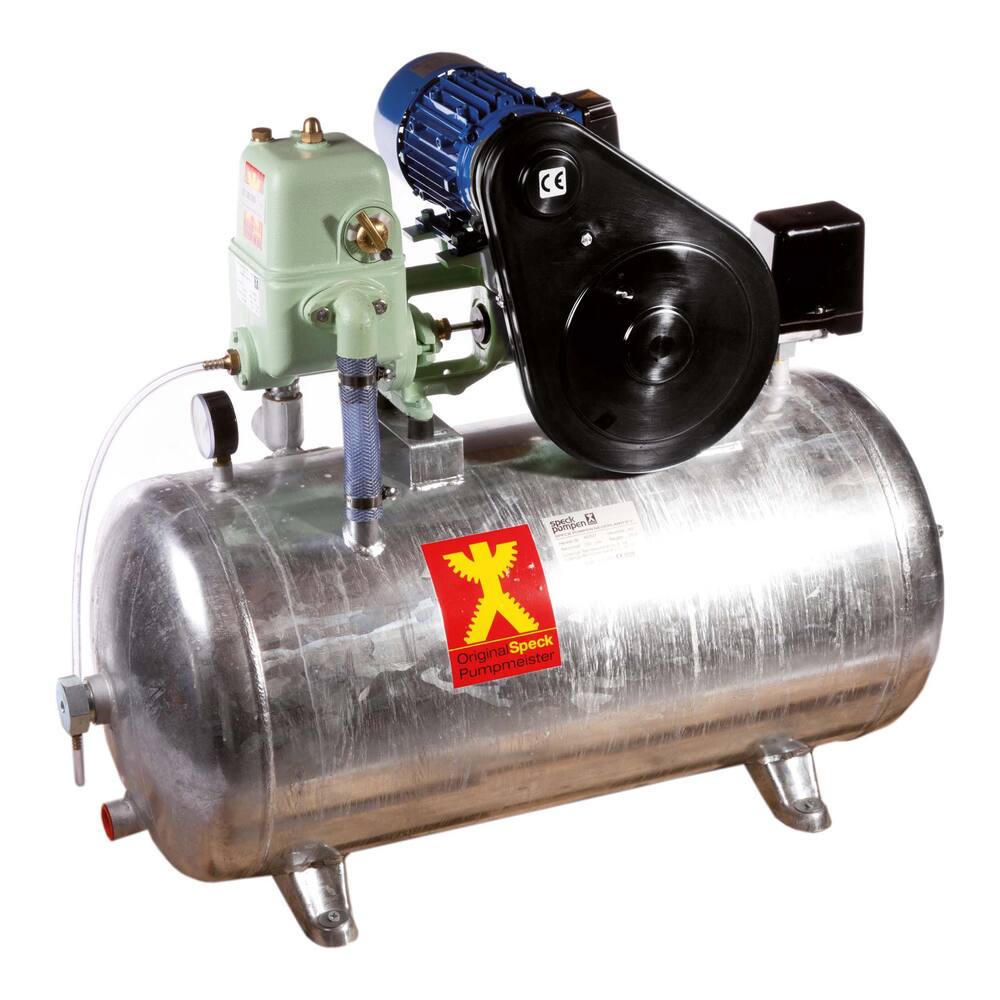

Speck Pressurized Water System PM15 + 200L Galvanised Vessel Without Motor

This versatile professional pressurized water system is suited for inland and seagoing shipping and recreational craft. It has been a top choice in inland shipping for years, supplied with a pressure vessel, non-return valve, manometer, pressure switch, and optional electric pump but without the motor included.
- Type: PM (Pumpmeister)
- Colour: Light green
- Pump type: Self-priming plunger pump
- Impeller type: Plunger (piston)
- Motor type: Brushless motor (motor not included)
- Shaft seal: Stop bush
- Material plunger: Simrit
- Material cylinder bushing: Brass
- Material pump housing: Cast iron
- Material pump shaft: Stainless steel
- Liquids: Clean water
- Compatible voltages: 12 V DC, 24 V DC (with 2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,500 litres per hour at 3.5 bar
- Pressure vessel: Horizontal 200 l galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Connections: 1" internal thread
- Dimensions (lxwxh): 1300 x 550 x 920 mm**
- Weight: 83 kg**
- Amperage: 17.4 A at 24 V, 4.4 A at 230 V, 1.1 A at 400 V
- Shaft power: 0.25 kW (0.33 hp) at 1,450 rpm for 24V; 0.37 kW (0.50 hp) at 1,450 rpm for 230V and 400V
- Must be installed by an accredited installer
- Product code: 97.70.002
- Number of tapping points: Geyser and 4-5 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Maximum discharge head: 35.0 m
- Voltage: Without motor
- Protection class: Not specified
- ATEX: No
- Free flow: 1500 L/hour
- Capacity at 5 meters: 1500 L/hour
