ID
1317132
$ 5,673.83
1-2 weeks delivery time
-
+
The Speck PM15 pressurized water system with 200L vessel and 230V motor provides reliable water pressurization for recreational and commercial vessels. This complete system includes all necessary components and delivers consistent 1,500 liters per hour flow at 3.5 bar pressure, making it ideal for geyser systems and multiple water outlets.
- Description
- Ask a Question
-

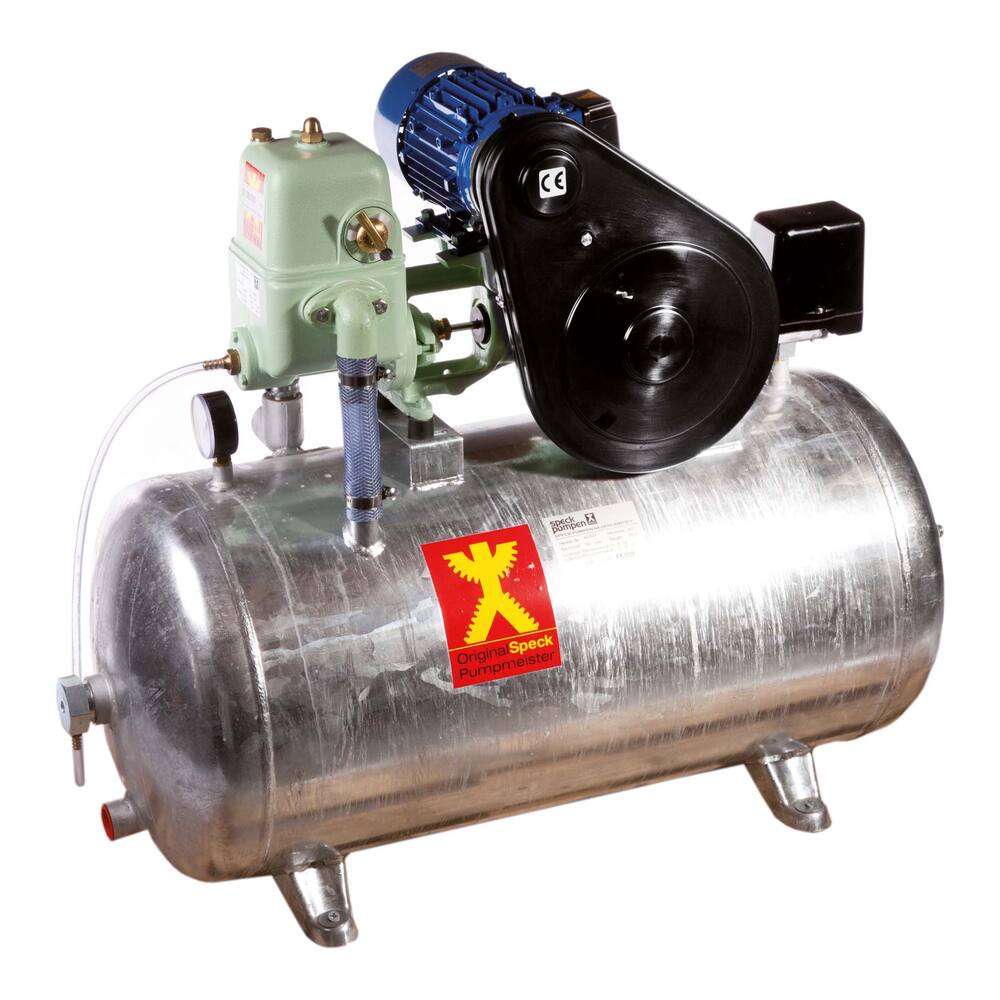

Speck Pressurized Water System PM15 + 200L Galvanised Vessel 230V
A reliable professional water pressurization system designed for inland and seagoing shipping as well as recreational crafts. Renowned as a top seller in inland shipping, it includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Capacity: 1,500 litres per hour at 3.5 bar
- Pressure vessel: horizontal 200 l galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Dimensions (lxwxh): 1300 x 550 x 920 mm**
- Weight: 83 kg**
- Amperage: 230 V, 4.4 A
- Shaft power 230V, 400V: 0.37 kW, 0.50 hp at 1,450 rpm
- Product code: 97.70.008
- Number of tapping points: Geyser and 4-5 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Max discharge head: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 1500
- Capacity at 5 meter (L/hour): 1500
- Note: Must be connected by an accredited installer. Dimensions and weight depend on motor type. Most dimensions relate to 24 volt motor.
-
