ID
1317125
$ 6,279.21
1-2 weeks delivery time
-
+
This 24V DC water pressurization system features an increased 200L galvanized pressure vessel capacity for larger water supply requirements in marine applications. The complete system includes a self-priming plunger pump, pressure vessel, and all necessary control components, delivering reliable performance for geyser and multiple draw-off points in recreational craft.
- Description
- Ask a Question
-

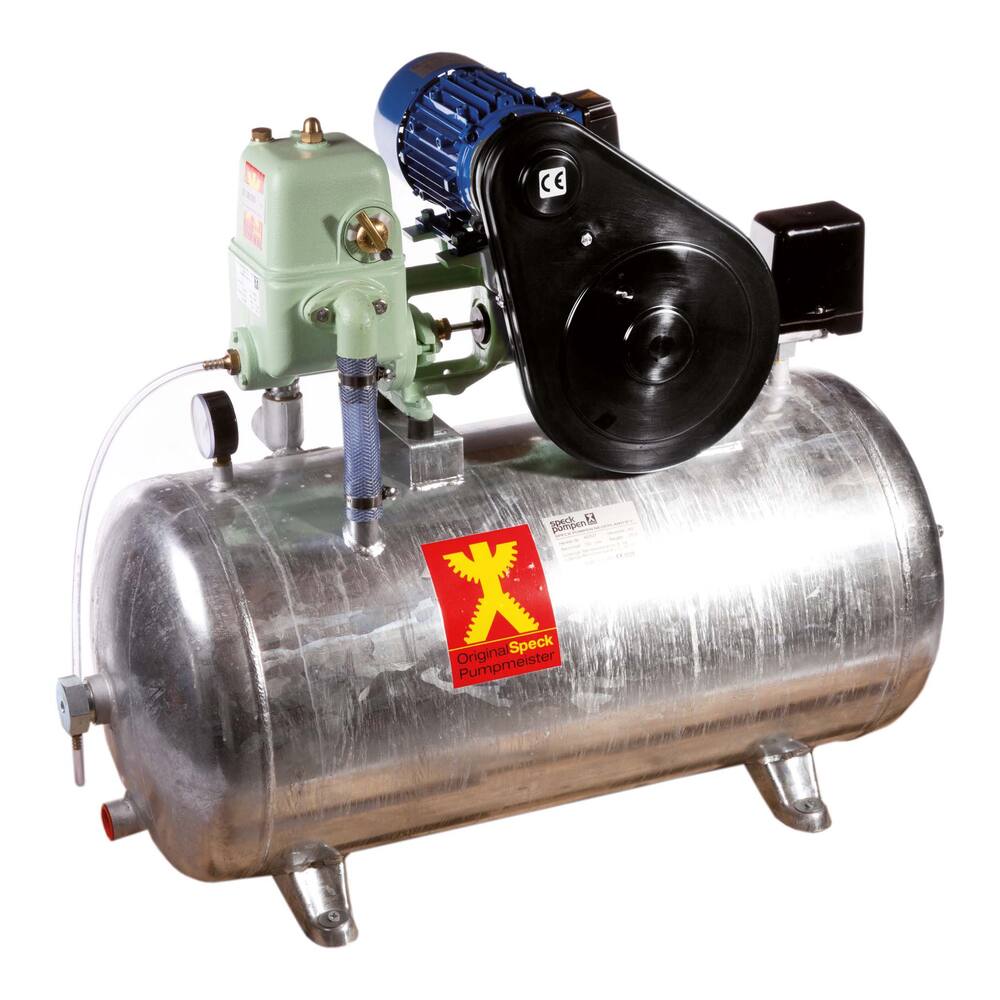

Speck Pressurized Water System PM10 + 200L Galvanised Vessel 24V
Specifically designed for professional water pressurization in inland and seagoing shipping as well as recreational craft, this system remains a market leader. It includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump, running on 24 V power.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 200 l. galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 to 4 draw off points (not in use simultaneously)
- Dimensions (L x W x H): 1300 x 520 x 880 mm (dimensions depend on motor type)
- Weight: 75 kg (weight depends on motor type)
- Amperage: 24 V, 17.4 A (Ideaal 15.0 A)
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.68.005
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 24 V
- Current: DC
- Frequency: -
- Fuel: -
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
