ID
1317123
$ 4,626.97
1-2 weeks delivery time
-
+
This 400V three-phase water pressurization system delivers professional-grade performance for marine and recreational applications. The complete system features a self-priming plunger pump with brushless motor, 100L galvanized pressure vessel, and all necessary components including pressure switch and non-return valve, designed for reliable water pressurization in inland shipping.
- Description
- Ask a Question
-

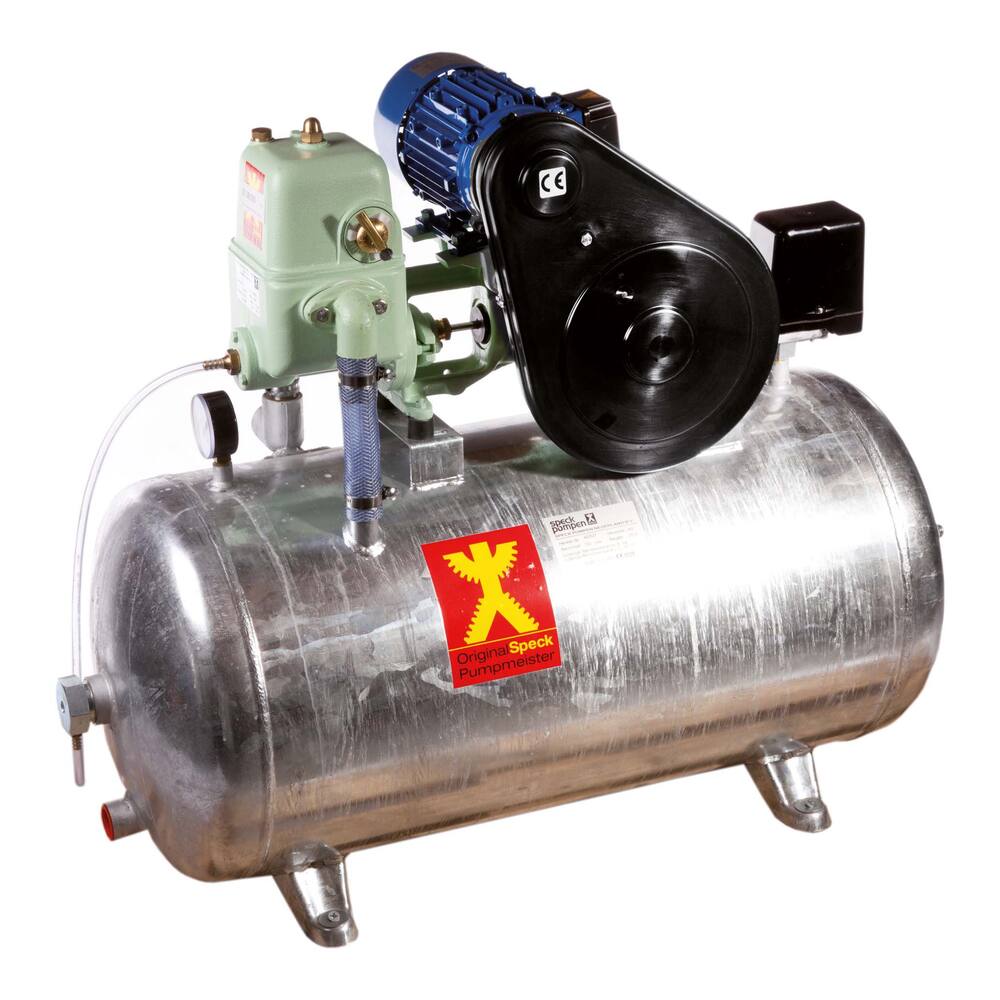

Speck Pressurized Water System PM10 + 100L Galvanised Vessel 400V
This professional water pressurization system is designed for inland shipping, seagoing vessels, and recreational craft. It has been a top seller in inland shipping for many years. The system includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Materials plunger: Simrit
- Materials cylinder bus: stainless steel
- Materials pump housing: cast iron
- Materials pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 100 l. galvanized vessel with approx. 15 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 or 3 draw off points (not in use simultaneously)
- Dimensions (L x W x H): 1000 x 430 x 760 mm (dimensions depend on motor type)
- Weight: 57 kg (weight depends on motor type)
- Amperage: 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.66.010
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
