ID
1317124
$ 4,744.33
1-2 weeks delivery time
-
+
This larger capacity water pressurization system features a 200L galvanized pressure vessel without motor, allowing custom motor selection for marine and recreational applications. The system delivers 1,000 liters per hour at 3.5 bar pressure and includes all essential components except the motor, making it ideal for geyser and 2-4 draw-off points in inland shipping.
- Description
- Ask a Question
-

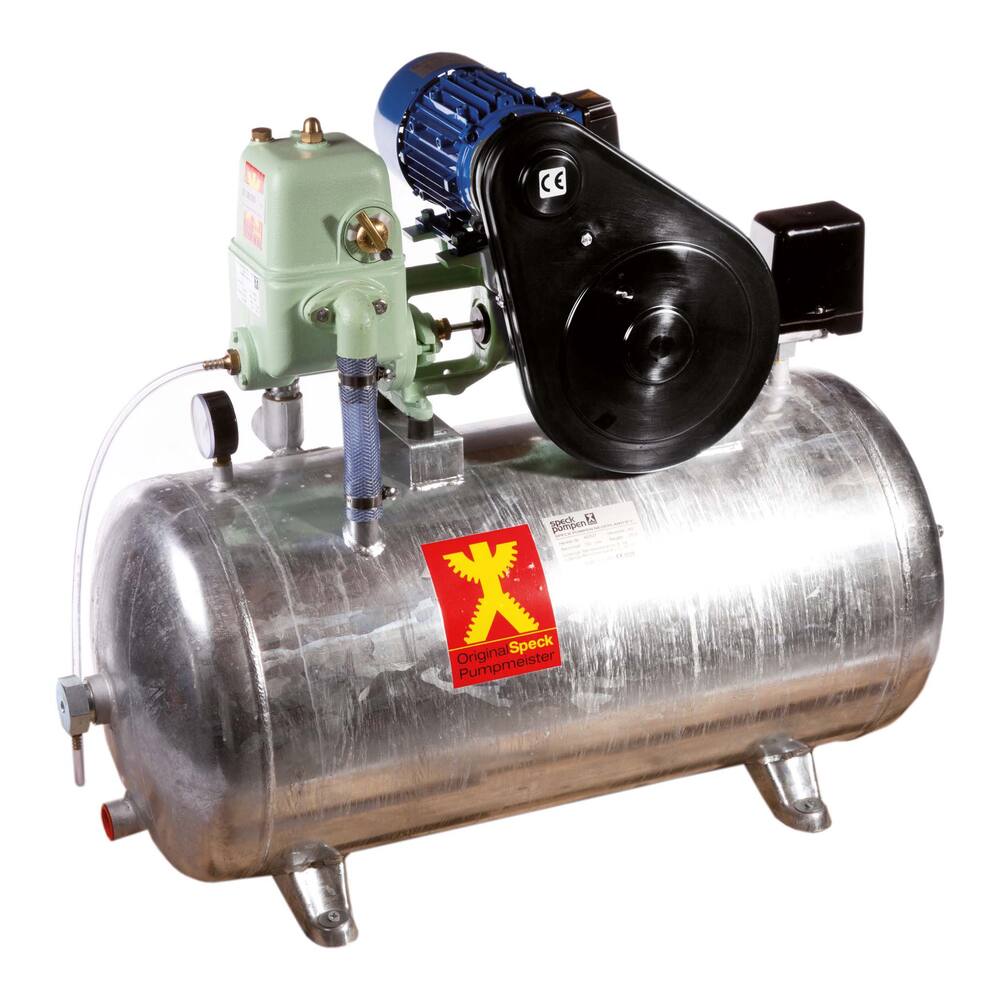

Speck Pressurized Water System PM10 + 200L Galvanised Vessel Without Motor
This reliable water pressurization system is ideal for inland and seagoing shipping as well as recreational craft. It is recognized as a best seller for inland shipping systems. The unit comprises a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump but comes without a motor.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Voltage options: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 200 l. galvanized vessel with approx. 30 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 to 4 draw off points (not in use simultaneously)
- Dimensions (L x W x H): 1300 x 520 x 880 mm (dimensions depend on motor type)
- Weight: 75 kg (weight depends on motor type)
- Amperage: 12 V, 35.0 A; 24 V, 17.4 A (Ideaal 15.0 A); 230 V, 3.1 A; 400 V, 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.68.002
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: - (without motor)
- Current: -
- Frequency: -
- Fuel: -
- Protection class: -
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
