ID
1316882
$ 2,029.20
1-2 weeks delivery time
-
+
The Lowara DOMO Pump 15VXT 400V is a stainless steel submersible centrifugal pump designed for clearing cargo residues, sewage pumping, and draining dirty water tanks. It features a recessed vortex impeller to reduce blockages, a dry motor, and a drive lube seal system with dual shaft seals. It handles contaminated water with solids up to 50 mm in size and operates at 400 V with a maximum discharge head of 9.0 meters, delivering up to 30,000 liters per hour free flow.
- Description
- Ask a Question
-

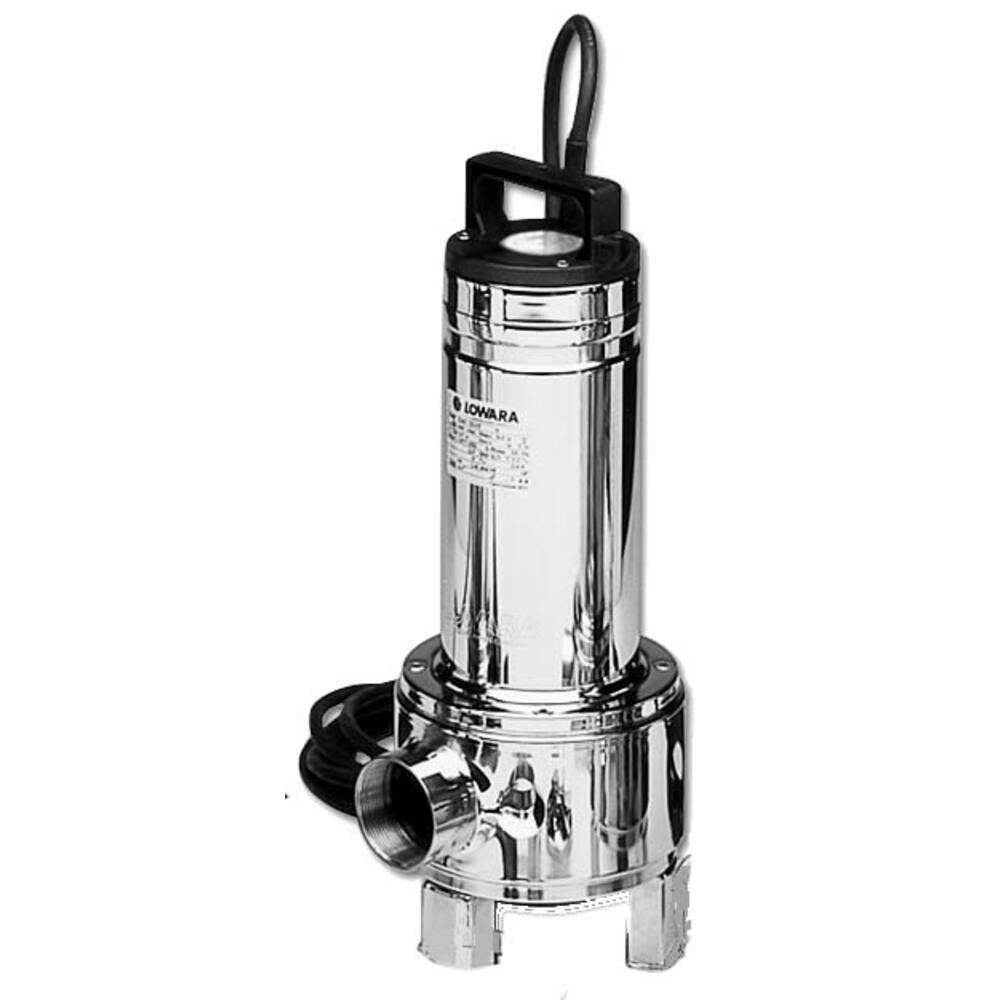

Lowara DOMO Pump 15VXT 400V
This stainless steel submersible pump is designed for clearing cargo residues from holds, sewage pumping, and draining dirty water tanks. Its vortex impeller minimizes the risk of blockages or jamming.
- Type: DOMO
- Colour: stainless steel
- Pump type: fully submersible centrifugal pump
- Impeller type: recessed vortex impeller
- Motor type: dry motor
- Maximum submersion depth: 5 metres
- Fuse: built-in thermal safeguard for 230V; for 400V, a motor safeguarding switch in the cable is needed
- Shaft seal: drive lube seal system with oil chamber and two shaft seals (lower wear-resistant silicon carbide on silicon carbide mechanical seal and lip seal on motor side), all lubricated by the drive lube system
- Material impeller, impeller housing, motor housing, and pump shaft: stainless steel 304
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C when fully submerged
- Minimum pumping diameter: 50 mm maximum particle size, non-grinding
- Connection: 2" internal thread
- Dimensions: diameter 198 mm, height 453 mm
- Weight: 12.0 kg
- Electrical: 400 V, 2.5 A, 1.1 kW (1.5 hp), 2850 rpm
- Cable: 5 metre neoprene H07RN-F without plug (400 V)
- Product code: 91.64.153
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 9.0 m
- Voltage: 400 V AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 30,000 L/hour
- Capacity at 5 meters: 21,000 L/hour
-
