ID
1316902
$ 1,893.92
1-2 weeks delivery time
-
+
The Flygt Ready 4 230V Pump is a modern submersible centrifugal pump with an orange, stainless steel, and black design, featuring an open polyurethane impeller and dry motor with thermal safeguard. It is suitable for contaminated water with solids and acidity, pumping 15,500 liters per hour with a maximum discharge head of 10.2 meters, and has a minimum pumping size of 25 mm.
- Description
- Ask a Question
-

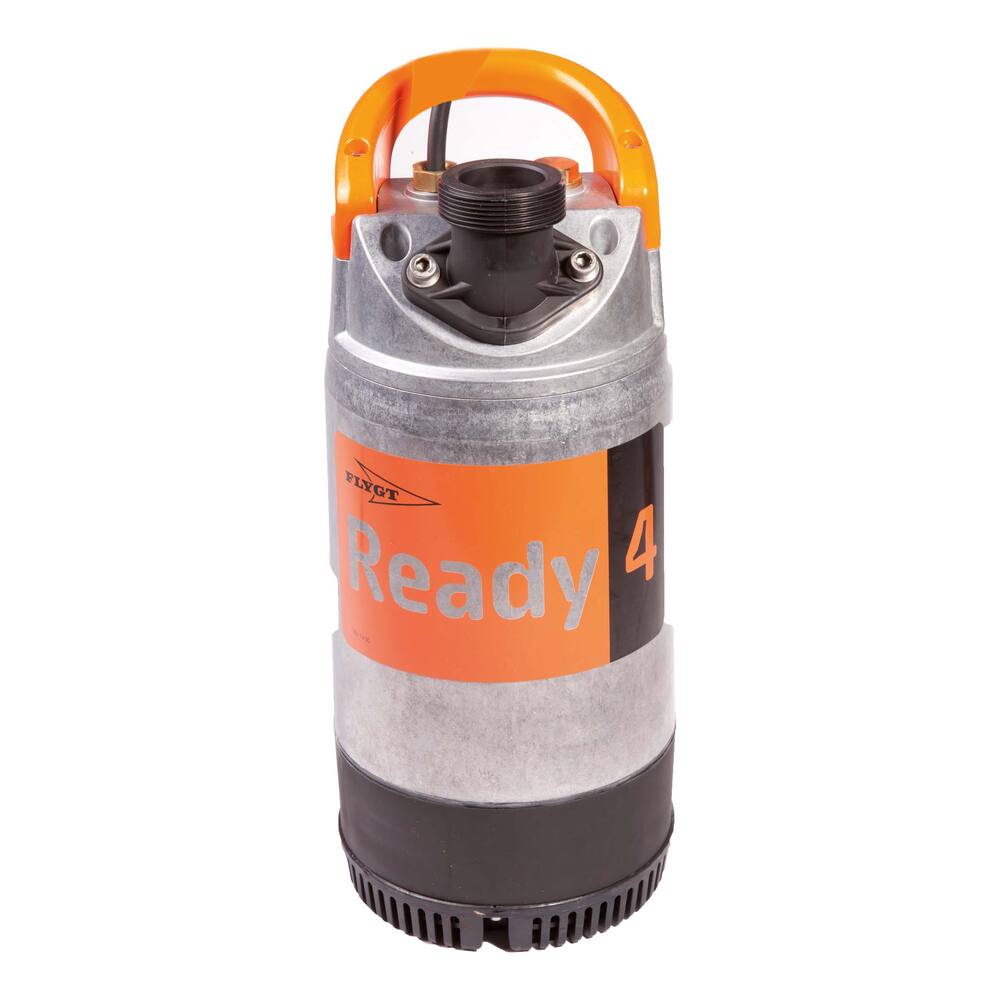

Flygt Ready 4 230V Pump
This pump is a modern cylinder design ideal for inland and seagoing shipping, fisheries, construction, and industrial applications. It offers professional-grade performance at a reasonable price.
- Type: Ready
- Colour: orange, stainless steel, and black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller made of polyurethane
- Motor type: dry motor with inbuilt thermal safeguard fuse
- Shaft seal: two-part; upper seal ceramic on carbon, lower seal silicon carbide on silicon carbide, separated by oil chamber
- Maximum submersion depth: 5 metres
- Impeller housing material: polyurethane
- Motor housing material: stainless steel
- Pump shaft material: stainless steel ST 60-2
- Suitable liquids: contaminated water with solids and pH 5-8 acidity, max temperature 35°C
- Performance: 1,200 litres per hour at 10 metres head
- Minimum pumping size: 25 mm
- Connection: 2" external thread
- Dimensions: diameter 184 mm, height 438 mm
- Weight: 10 kg (without cable)
- Electrical: 2.4 A amperage, 0.4 kW (0.53 hp), 2700 rpm shaft power
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.24.042
- Pipe diameter pressure: 2"
- Particle size: 7 mm
- Maximum discharge head: 10.2 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow (L/hour): 15,500
- Capacity at 5 meters (L/hour): 10,800
-
