ID
1316884
$ 2,089.96
1-2 weeks delivery time
-
+
The Lowara DL Minivortex Pump 230V is a submersible centrifugal pump with a vortex impeller, ideal for clearing cargo residues and pumping sewage with minimal clogging risk. It has an oil bath motor, ceramic on carbon shaft seal, and cast iron impeller and housing. It handles contaminated water with solids up to 60 mm, operates at 230 V, and delivers a free flow rate of 18,000 liters per hour with a maximum discharge head of 7.6 meters.
- Description
- Ask a Question
-

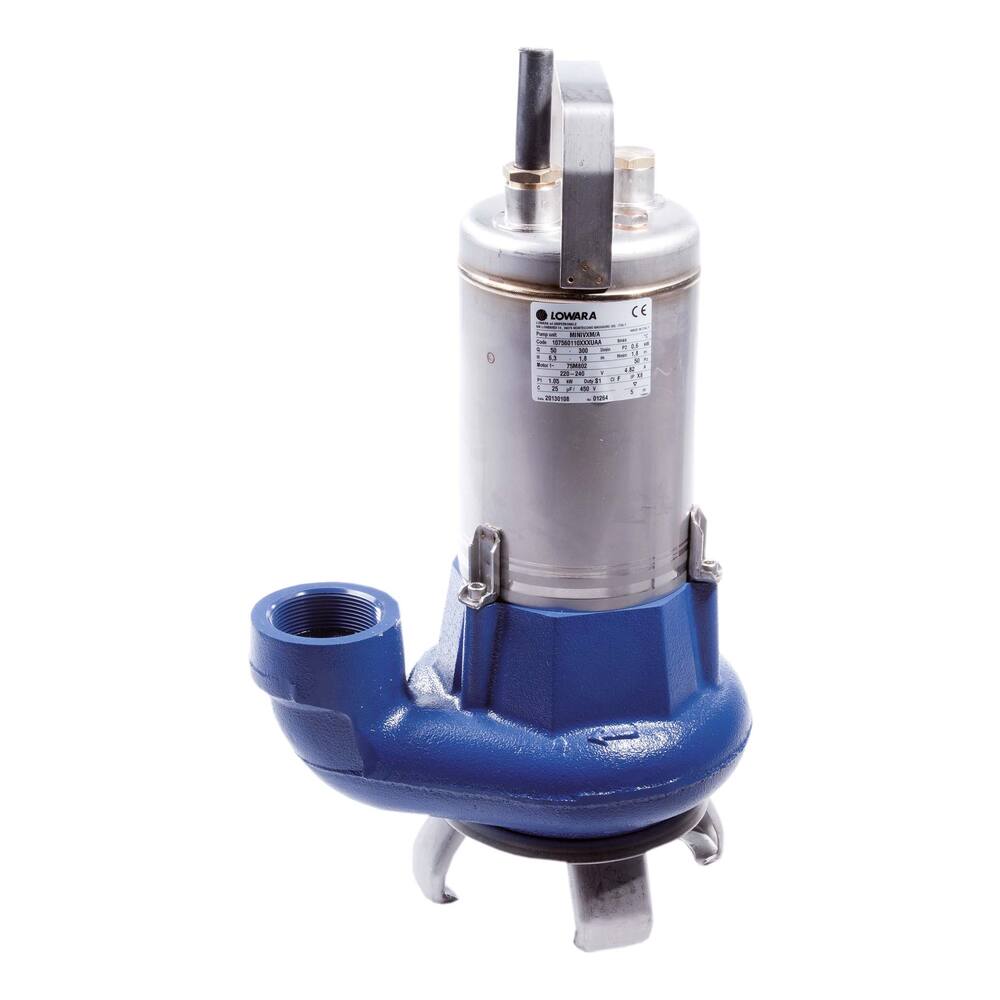

Lowara DL Minivortex Pump 230V
This submersible pump, featuring a vortex impeller, is ideal for clearing cargo residues, pumping sewage, and emptying dirty water tanks with reduced risk of clogging.
- Type: DL-VORTEX
- Colour: blue and stainless steel
- Pump type: fully submersible centrifugal pump
- Impeller type: recessed vortex impeller
- Motor type: oil bath motor
- Maximum submersion depth: 5 metres
- Fuse: built-in thermal safeguard for 230V; motor safeguarding switch installed in cable
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller and impeller housing: cast iron
- Material motor housing and pump shaft: stainless steel
- Suitable liquids: contaminated water containing solids and high acidity
- Minimum particle size: 60 mm
- Connection: 2" internal thread
- Dimensions: diameter 278 mm, height 455 mm
- Weight: 19 kg
- Electrical: 230 V, 5.0 A, 0.6 kW (0.8 hp), 2850 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 91.65.072
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Particle size: 40 mm
- Max discharge head: 7.6 m
- Voltage: 230 V AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 18,000 L/hour
- Capacity at 5 meters: 9,600 L/hour
-
