ID
1316880
$ 1,664.10
1-2 weeks delivery time
-
+
The Lowara DOMO Pump 10VXT 400V is a stainless steel submersible centrifugal pump ideal for removing cargo residues, sewage, and dirty water tanks. It features a vortex recessed impeller to minimize jamming and plugging risks and operates in contaminated water with solids and acidity up to 40°C. The pump has a 5-meter maximum submersion depth, handles particles up to 50 mm, delivers a free flow of 24,000 liters per hour, and comes with a 10-meter neoprene cable without a plug for 400V operation.
- Description
- Ask a Question
-

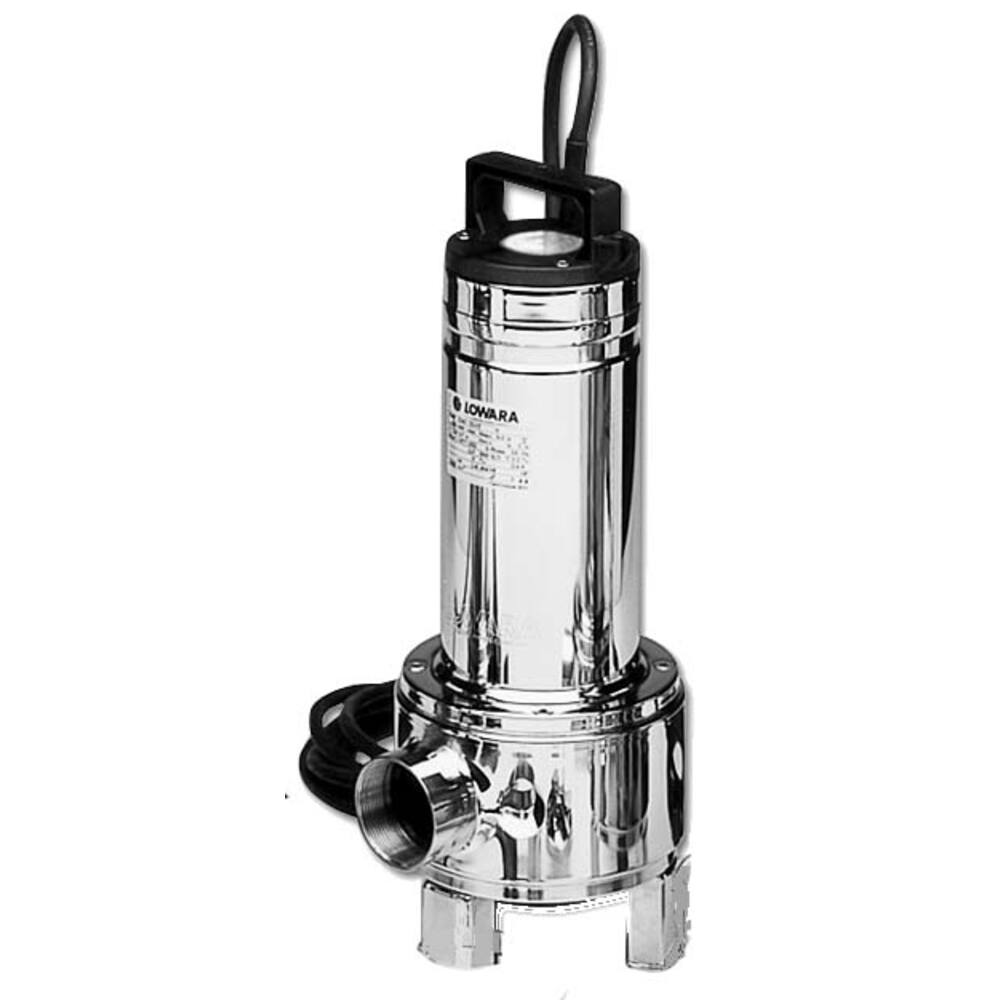

Lowara DOMO Pump 10VXT 400V
Built from stainless steel, this submersible pump is ideal for removing cargo residue from holds, pumping sewage, and emptying dirty water tanks. The vortex impeller design minimizes jamming and plugging risks.
- Type: DOMO
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed impeller (vortex)
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard for 230 V; for 400 V a motor safeguarding switch in the cable is necessary
- Shaft seal: drive lube seal system with oil chamber and 2 shaft seals; lower seal is silicon carbide on silicon carbide mechanical seal with a lip seal on motor side, lubricated by drive lube system
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max temperature 40°C (fully submersed)
- Pumps down to: 50 mm maximum particle size, non-grinding
- Connection: 2" internal thread
- Dimensions: diameter 198 mm, height 453 mm
- Weight: 12.0 kg
- Amperage: 400 V, 2.1 A
- Shaft power: 0.8 kW, 1.1 hp, 2850 rpm
- Cable: 10 metre neoprene H07RN-F without plug for 400 V
- Product code: 91.64.103
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump medium: water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 7.7 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow: 24,000 L/hour
- Capacity at 5 m: 14,400 L/hour
-
