ID
1316885
$ 1,974.47
1-2 weeks delivery time
-
+
The Lowara DL Vortex Pump 400V Without MSS is a fully submersible centrifugal pump designed for cargo residue removal and sewage pumping. It features a recessed vortex impeller, oil bath motor, and ceramic on carbon shaft seal. Made with cast iron and stainless steel components, it handles contaminated water with solids up to 60 mm, operates at 400 V, and provides a free flow rate of 31,800 liters per hour with a maximum discharge head of 8.7 meters.
- Description
- Ask a Question
-

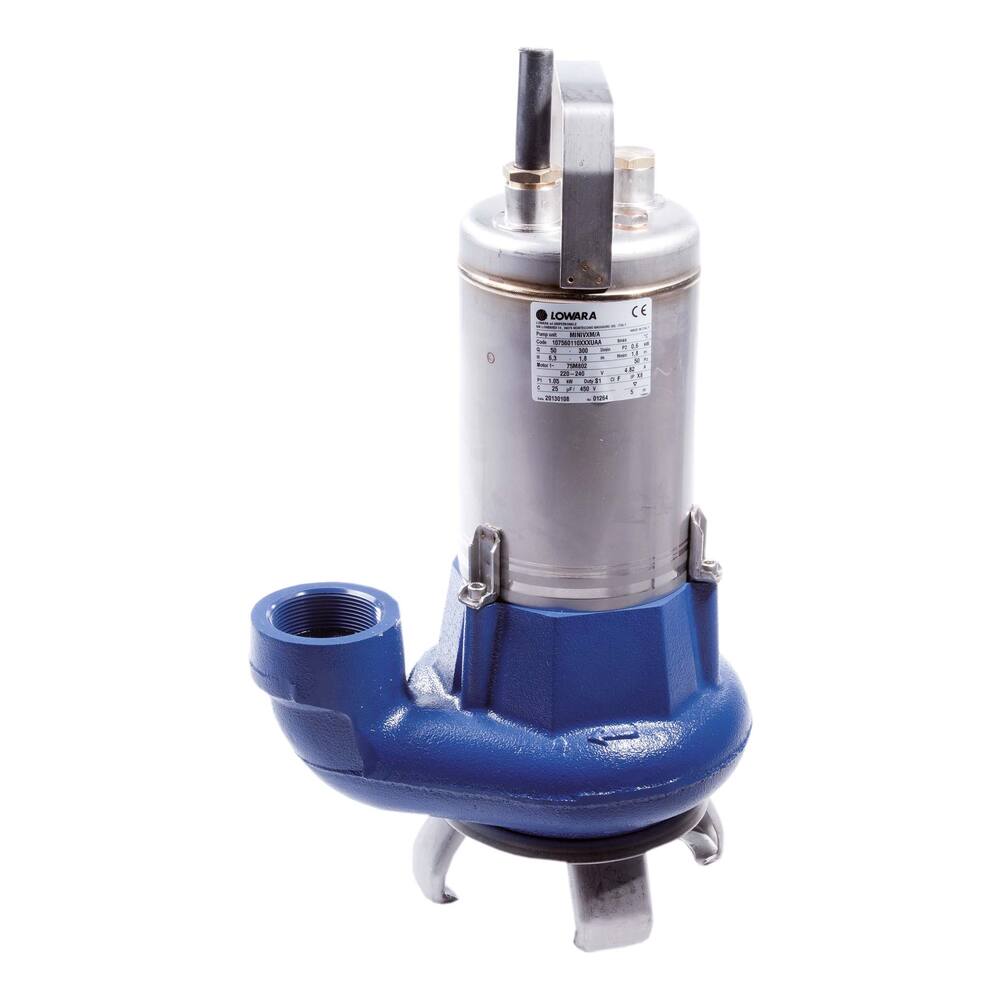

Lowara DL Vortex Pump 400V Without MSS
This submersible centrifugal pump is designed to clear cargo residues from holds, pump sewage, and drain dirty water tanks. Its vortex impeller reduces the risk of clogging or jamming, making it highly reliable for contaminated water with solids and high acidity.
- Type: DL-VORTEX
- Colour: Blue and stainless steel
- Pump type: Fully submersible centrifugal pump
- Impeller: Recessed vortex impeller
- Motor: Oil bath motor
- Maximum submersion depth: 5 metres
- Fuse: Inbuilt thermal safeguard for 230V; motor safeguarding switch installed in cable for 400V
- Shaft seal: Ceramic on carbon mechanical seal
- Materials:
- Impeller: Cast iron
- Impeller housing: Cast iron
- Motor housing: Stainless steel
- Pump shaft: Stainless steel
- Liquid compatibility: Contaminated water with solids and high acidity
- Minimum pumping size: 60 mm
- Connection: 2" internal thread
- Dimensions: Diameter 278 mm, height 455 mm
- Weight: 21 kg
- Amperage: 3.2 A
- Shaft power: 1.1 kW, 1.5 hp, 2850 rpm
- Cable: 9 metre neoprene H07RN-F without plug
- Product code: 91.65.113
- Pipe diameter pressure: 2"
- Model: Without motor protection switch (No guarantee)
- Medium: Water and water with coarse components
- Particle size: 45 mm
- Max discharge head: 8.7 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 31,800 L/hour
- Capacity at 5 m: 23,400 L/hour
-
