ID
1316891
$ 1,727.67
1-2 weeks delivery time
-
+
The SAER CFP12-6 is an olive green gearwheel pump ideal for transporting low viscosity lubricating liquids like diesel and light oils without solids or abrasives. It has a cast steel housing, brass and steel gearwheels, and operates at 400 V AC with a maximum discharge head of 70 metres. The pump delivers 720 litres per hour at 30 metres head, weighs 8.8 kg, and features a lip seal shaft with no inbuilt fuse.
- Description
- Ask a Question
-

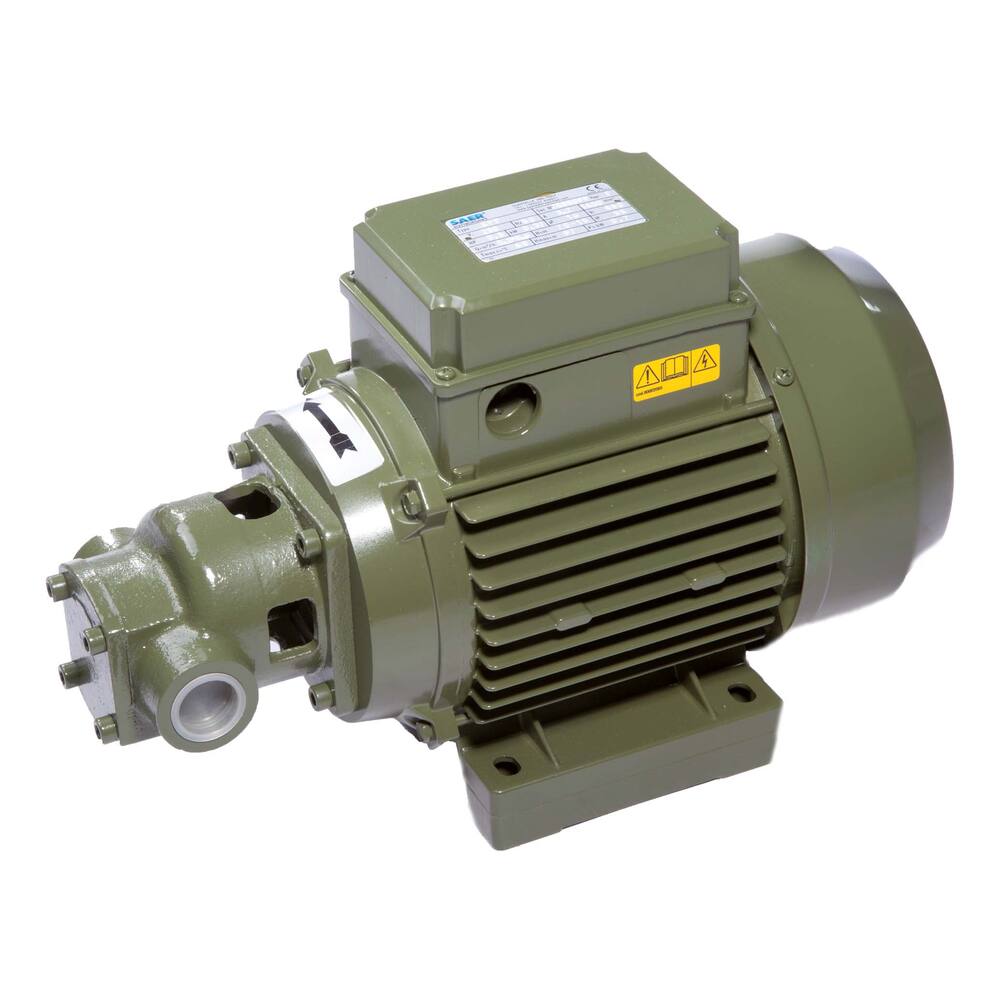

SAER CFP12-6 - Gearwheel Pump 400V
This olive green gearwheel pump is suitable for transporting low viscosity, lubricating liquids without solids or abrasives, such as diesel, light lubricating oil, spindle oil, preheated grease, and gas oil. It features a cast steel housing and a combination of brass and steel gearwheels for durability.
- Type: SAER
- Colour: olive green
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Fuse: NOT inbuilt
- Shaft seal: lip seal
- Materials: gearwheels - 1 brass, 1 steel; pump housing - cast steel; pump shaft - toughened steel
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Viscosity limit: max 20 Engler
- Capacities (measured with water):
- 30 metres head: 720 litres/hour
- 50 metres head: 600 litres/hour
- Suction head: depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 310 x 150 x 180 mm
- Weight: 8.8 kg
- Amperage: 3.0 A
- Shaft power: 0.37 kW, 0.5 hp, 1390 rpm
- Product code: 93.90.413
- Suction head: 2.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Medium: Lubricating oil
- Particle size tolerance: 2 mm
- Discharge head max: 70.0 m
- Voltage: 400 V AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 720 L/hour
- Capacity at 5 meter: 720 L/hour
-
