ID
1316886
$ 2,352.61
1-2 weeks delivery time
-
+
The Lowara DL Vortex Pump 400V With MSS is a fully submersible centrifugal pump for removing cargo residues and pumping sewage, equipped with a recessed vortex impeller and oil bath motor. It includes a motor safeguarding switch for 400 V operation, ceramic on carbon shaft seal, and cast iron and stainless steel construction. It handles contaminated water with solids up to 45 mm, operates at 400 V, and delivers a free flow rate of 31,800 liters per hour with a maximum discharge head of 8.7 meters.
- Description
- Ask a Question
-

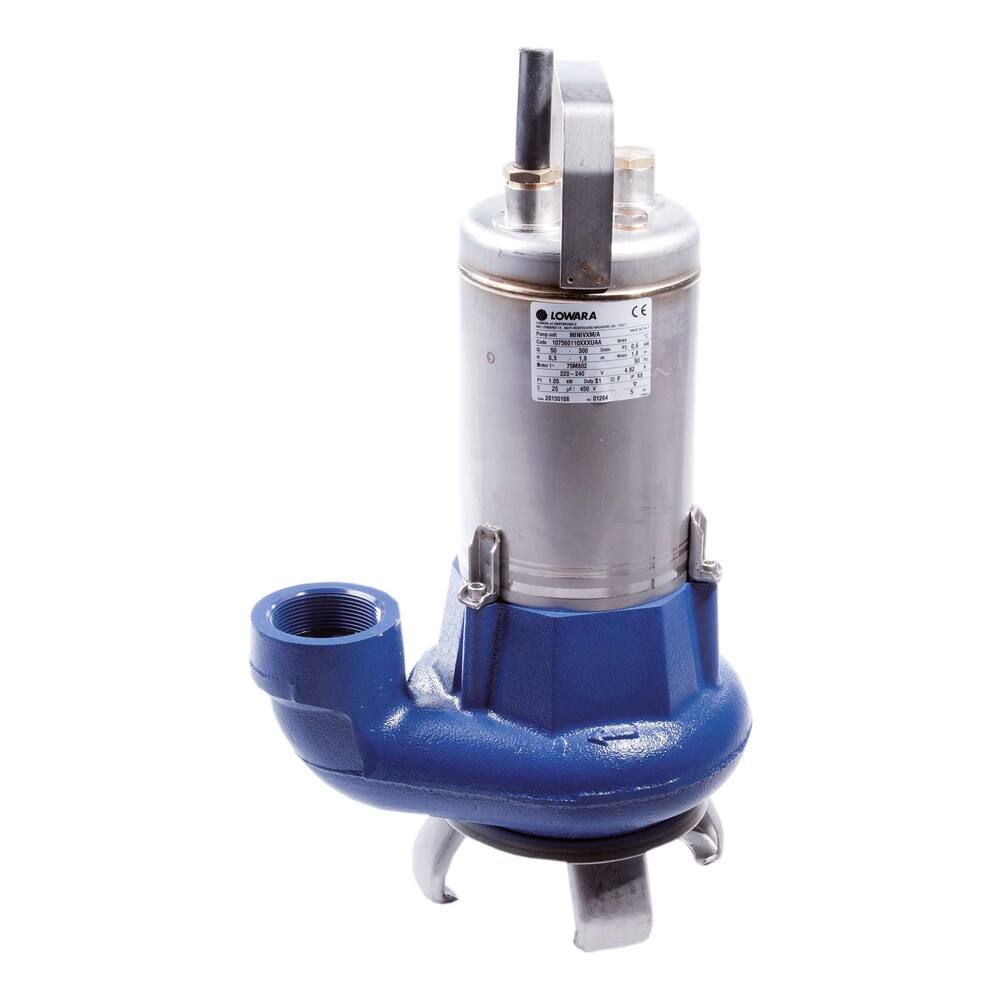

Lowara DL Vortex Pump 400V With MSS
This fully submersible centrifugal pump is designed for removing cargo residues from holds, pumping sewage, and emptying dirty water tanks. Its vortex impeller minimizes the risk of clogging or jamming, making it effective for handling contaminated water with solids and high acidity.
- Type: DL-VORTEX
- Colour: blue and stainless steel
- Impeller type: recessed impeller (vortex)
- Motor type: oil bath motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard for 230 V; for 400 V, a motor safeguarding switch is installed in the cable
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material motor housing: stainless steel
- Material pump shaft: stainless steel
- Liquids handled: contaminated water containing solids and high acidity
- Pumps down to: 60 mm
- Connection: 2" internal thread
- Dimensions: diameter 278 mm, height 455 mm
- Weight: 21 kg
- Amperage: 3.2 A
- Shaft power: 1.1 kW, 1.5 hp, 2850 rpm
- Cable: 9 metre neoprene H07RN-F without plug
- Product code: 91.65.114
- Pipe diameter pressure: 2"
- Model: With motor protection switch (Guarantee)
- Pump type: Submersible pump
- Medium: Water including coarse components
- Particle size: 45 mm
- Discharge head Max.: 8.7 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 31,800
- Capacity at 5 metre depth (L/hour): 23,400
-
