ID
1316883
$ 2,231.30
1-2 weeks delivery time
-
+
The Lowara DOMO Pump 20VXT 400V is a stainless steel submersible centrifugal pump used for cargo residue removal, sewage pumping, and dirty water drainage. It has a recessed vortex impeller and dry motor, with a drive lube seal system. It pumps contaminated water with solids up to 50 mm, operates at 400 V, and can reach a maximum discharge head of 11.3 meters, providing a free flow rate of 33,600 liters per hour.
- Description
- Ask a Question
-

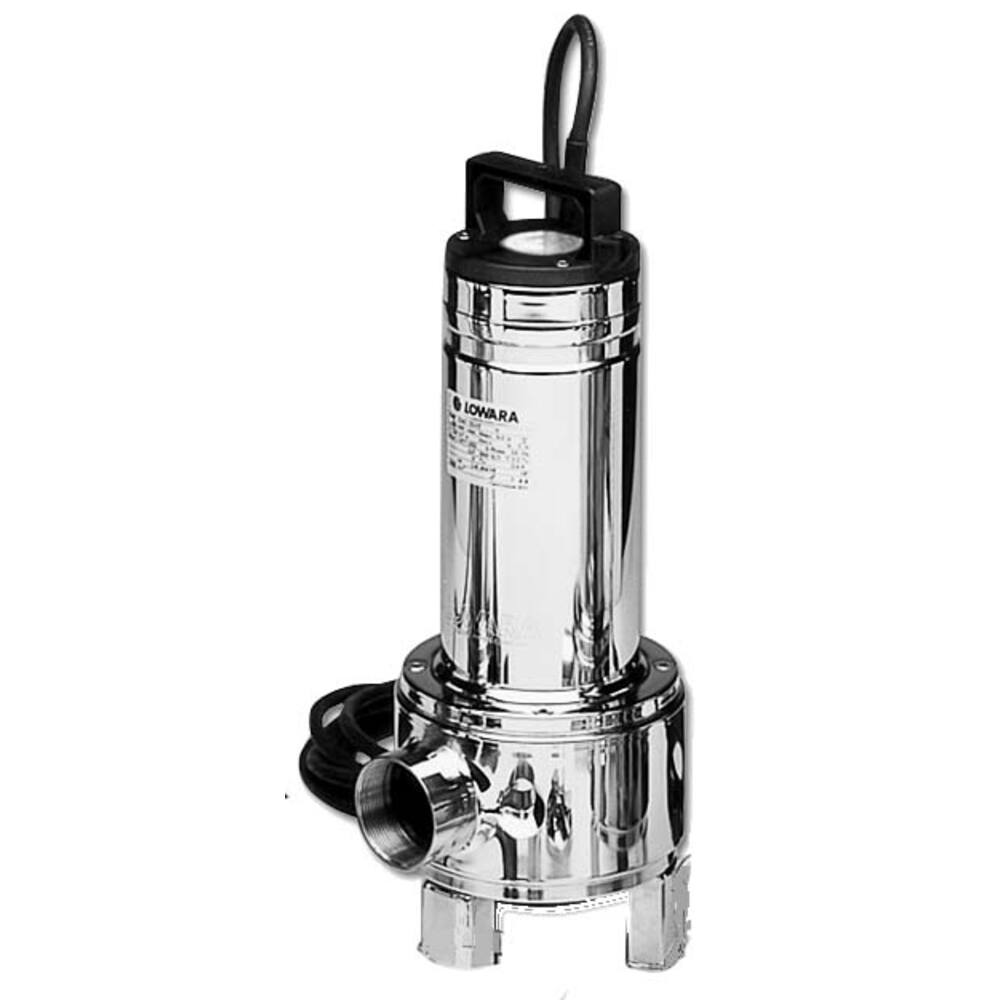

Lowara DOMO Pump 20VXT 400V
Built from stainless steel, this submersible pump efficiently removes cargo residues, pumps sewage, and empties dirty water tanks. Its vortex impeller design reduces plugging and jamming risks.
- Type: DOMO
- Colour: stainless steel
- Pump type: fully submersible centrifugal pump
- Impeller type: recessed vortex impeller
- Motor type: dry motor
- Maximum submersion depth: 5 metres
- Fuse: built-in thermal safeguard for 230V; motor safeguarding switch in cable required for 400V
- Shaft seal: drive lube seal system with oil chamber and two shaft seals (lower wear-resistant silicon carbide on silicon carbide mechanical seal, plus lip seal on motor side), lubricated by drive lube system
- Material impeller, impeller housing, motor housing, and pump shaft: stainless steel 304
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C when fully submerged
- Performance at 10 metres head: 9,600 L/hour
- Minimum particle size: 50 mm maximum, no gravel
- Connection: 2" internal thread
- Dimensions: diameter 198 mm, height 453 mm
- Weight: 14.4 kg
- Electrical: 400 V, 3.4 A, 1.5 kW (2.0 hp), 2850 rpm
- Cable: 5 metre neoprene H07RN-F without plug
- Product code: 91.64.203
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 11.3 m
- Voltage: 400 V AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow rate: 33,600 L/hour
- Capacity at 5 meters: 28,800 L/hour
-
