ID
1316892
$ 2,257.38
1-2 weeks delivery time
-
+
The SAER CF 25-6 is a robust olive green gearwheel pump designed for low viscosity lubricating liquids free from solids or abrasives, such as diesel and spindle oil. It features a cast steel housing, brass and steel gearwheels, and operates at 400 V AC with a maximum discharge head of 70 metres. The pump delivers up to 1,110 litres per hour at 30 metres head, weighs 14.2 kg, and includes a lip seal shaft without an inbuilt fuse.
- Description
- Ask a Question
-

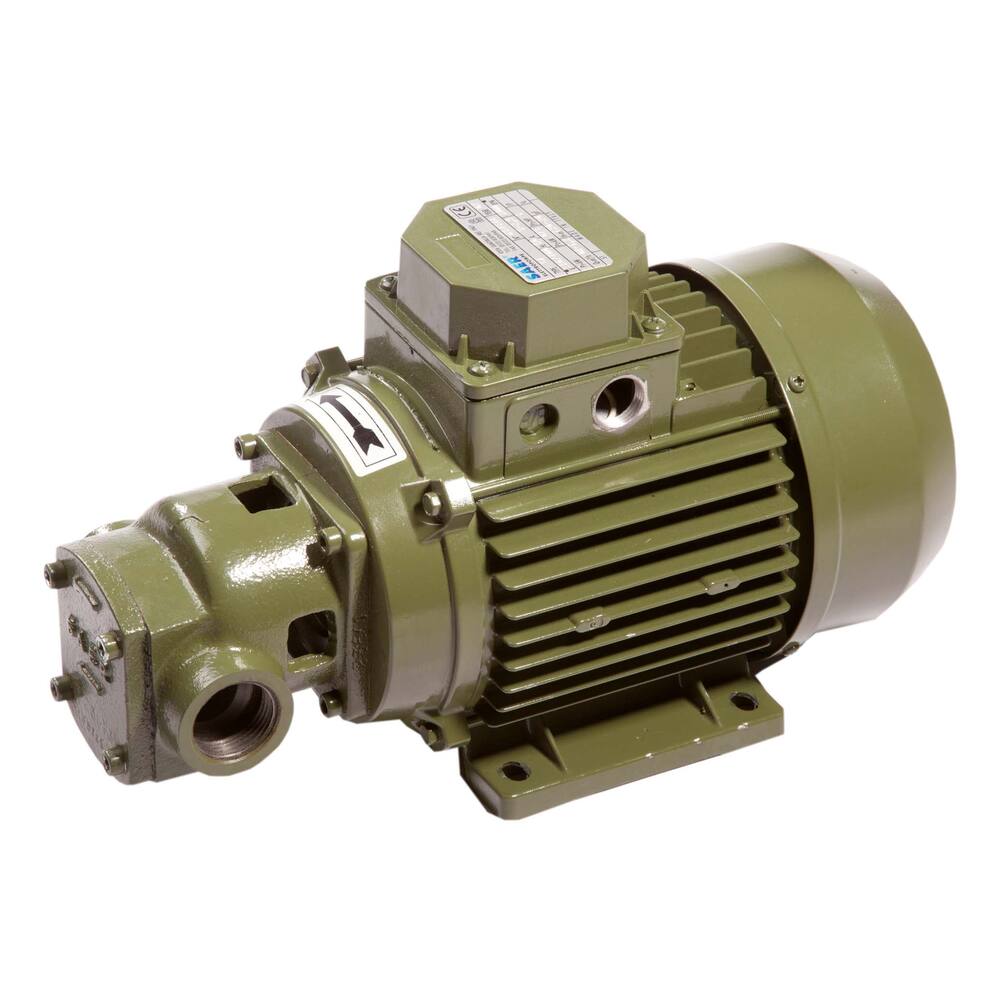

SAER CF 25-6 - Gearwheel Pump 400V
This olive green gearwheel pump is designed for handling low viscosity lubricating liquids free from solids or abrasives such as diesel, light lubricating oil, spindle oil, preheated grease, and gas oil. It has a cast steel housing and toughened steel shaft with brass and steel gearwheels.
- Type: SAER
- Colour: olive green
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Fuse: NOT inbuilt
- Shaft seal: lip seal
- Materials: gearwheels - 1 brass, 1 steel; pump housing - cast steel; pump shaft - toughened steel
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Viscosity limit: max 20 Engler
- Capacities (measured with water):
- 30 metres head: 1,110 litres/hour
- 50 metres head: 900 litres/hour
- 60 metres head: 810 litres/hour
- Suction head: depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 320 x 180 x 190 mm
- Weight: 14.2 kg
- Amperage: 6.0 A
- Shaft power: 0.75 kW, 1.0 hp, 1390 rpm
- Product code: 93.90.426
- Suction head: 3.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Medium: Lubricating oil
- Particle size tolerance: 2 mm
- Discharge head max: 70.0 m
- Voltage: 400 V AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 1200 L/hour
- Capacity at 5 meter: 1200 L/hour
-
