ID
1316878
$ 1,349.53
1-2 weeks delivery time
-
+
The Lowara DOMO Pump 7VXT 400V is a stainless steel submersible centrifugal pump suitable for removing cargo residues, sewage, and dirty water tanks. It uses a vortex recessed impeller to minimize plugging or jamming and works efficiently in contaminated water with solids and acidity up to 40°C. This model has a 5-meter maximum submersion depth, handles particles up to 35 mm, delivers a free flow of 15,600 liters per hour, and comes with a 5-meter neoprene cable without a plug for 400V operation, including a motor protection switch.
- Description
- Ask a Question
-

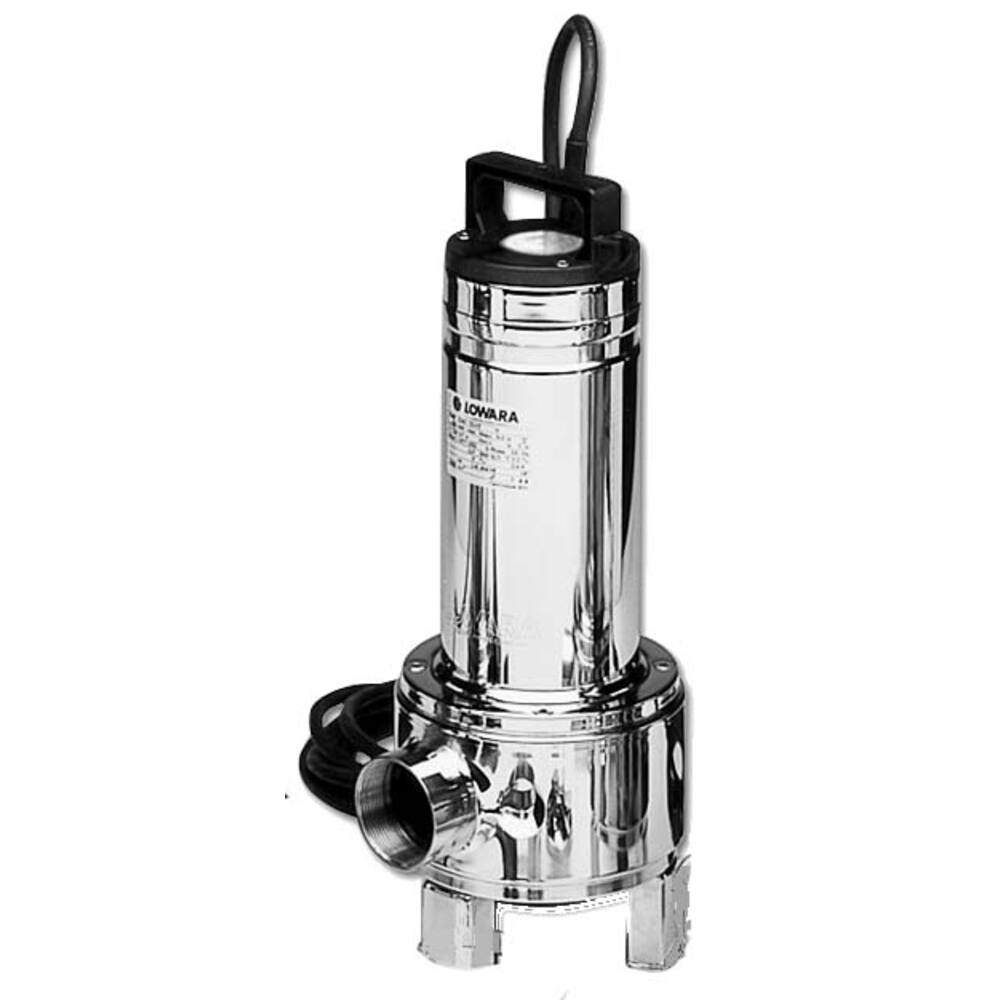

Lowara DOMO Pump 7VXT 400V
This stainless steel submersible centrifugal pump is suited for removing cargo residues, sewage, and dirty water tanks. Featuring a vortex recessed impeller, it minimizes the risk of plugging or jamming and operates efficiently in contaminated water with solids and acidity up to 40°C.
- Type: DOMO
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed impeller (vortex)
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard for 230 V; for 400 V a motor safeguarding switch in the cable is necessary
- Shaft seal: drive lube seal system with oil chamber and 2 shaft seals; lower is silicon carbide on silicon carbide mechanical seal and a lip seal on motor side, lubricated by drive lube system
- Material impeller, housing, motor housing, and shaft: stainless steel 304
- Liquids handled: contaminated water with solids and high acidity, max temperature 40°C
- Pumps down to 35 mm maximum
- Particle size: 35 mm maximum, no gravel
- Connection: 1.1/2" internal thread
- Dimensions: diameter 193 mm, height 386 mm
- Weight: 9.5 kg
- Amperage: 1.3 A (400 V)
- Shaft power: 0.55 kW, 0.75 hp, 2850 rpm
- Cable: 5 metre neoprene H07RN-F without plug for 400 V
- Product code: 91.64.073
- Pipe diameter pressure: 1.1/2"
- Model: With motor protection switch (Guarantee)
- Medium: Water with coarse components
- Discharge head max: 9.0 m
- Voltage: 400 V
- Current: AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 15,600 L/hour
- Capacity at 5 meters: 8,400 L/hour
-
