The Lowara DOMO Pump 10VXSG 230V is a stainless steel submersible centrifugal pump designed for efficient removal of cargo residues, sewage, and dirty water tanks. Its vortex impeller reduces clogging or jamming risks, and it handles contaminated water with solids and acidity up to 40°C. The pump supports a maximum submersion depth of 5 meters, pumps particles up to 50 mm, delivers a free flow of 24,000 liters per hour, and includes a 10-meter neoprene cable with an earthed plug for 230V operation.
- Description
- Ask a Question
-

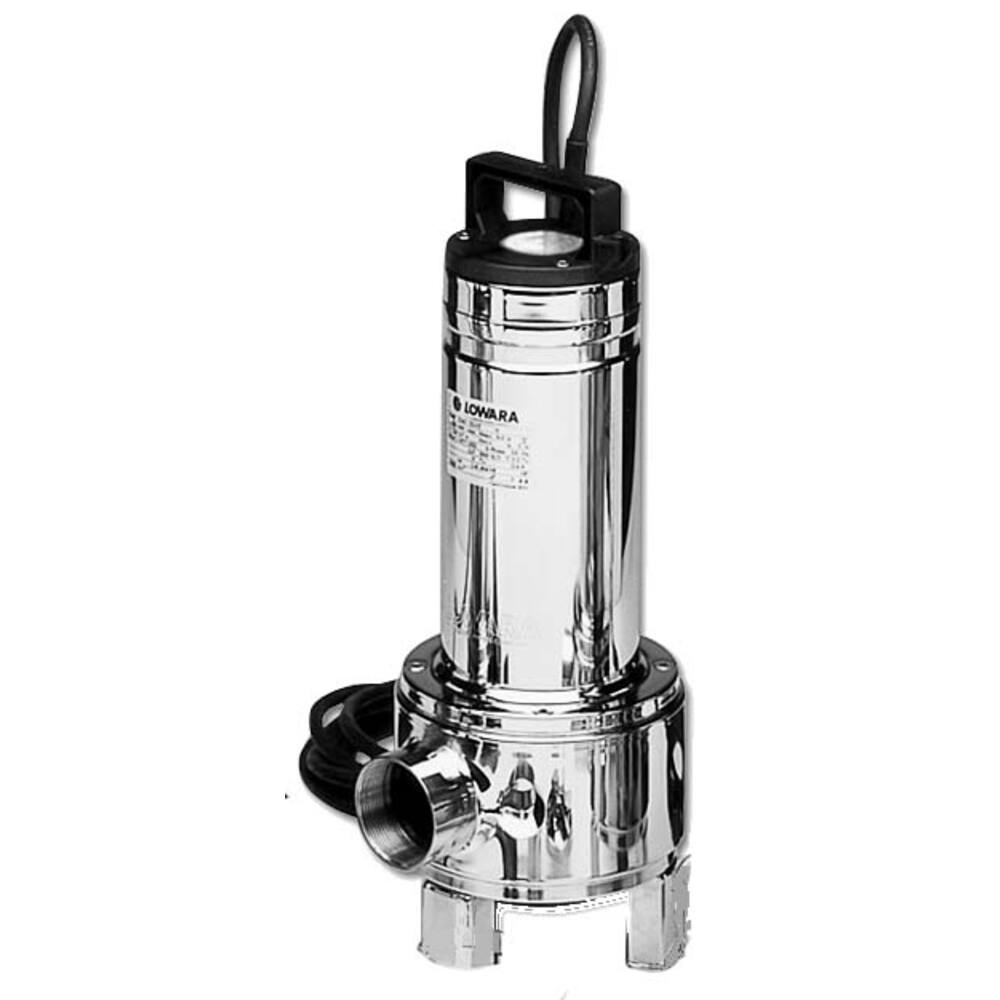

Lowara DOMO Pump 10VXSG 230V
This stainless steel submersible pump is designed for efficient removal of cargo residues from holds, sewage pumping, and emptying dirty water tanks. Its vortex impeller reduces the risk of clogging or jamming during operation.
- Type: DOMO
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: recessed impeller (vortex)
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: inbuilt thermal safeguard for 230 V; for 400 V a motor safeguarding switch in the cable is necessary
- Shaft seal: drive lube seal system with oil chamber and 2 shaft seals; the lower seal is wear resistant silicon carbide on silicon carbide mechanical seal, plus a lip seal on the motor side, all lubricated by the drive lube system
- Material impeller: stainless steel 304
- Material impeller housing: stainless steel 304
- Material motor housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids handled: contaminated water containing solids and high acidity, max temperature 40°C (fully submersed)
- Pumps down to: 50 mm maximum particle size, non-grinding
- Connection: 2" internal thread
- Dimensions: diameter 198 mm, height 453 mm
- Weight: 12.0 kg
- Amperage: 230 V, 5.2 A
- Shaft power: 0.8 kW, 1.1 hp, 2850 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug for 230 V
- Product code: 91.64.101
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump medium: water and water with coarse components
- Particle size: 50 mm
- Max discharge head: 7.7 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow: 24,000 L/hour
- Capacity at 5 m: 14,400 L/hour
-
