The Koshin SEV-80D diesel pump is designed for tough applications such as mining, shipboard, firefighting, and construction, combining durability and efficiency with a 4-stroke forced air cooled diesel engine. It uses a self-priming centrifugal pump to handle clear water with flow rates up to 42,000 litres per hour at 10 meters head and runs approximately 2.2 hours on a 3-litre fuel tank. The pump has a 3" connection, weighs 48.5 kg, and a maximum discharge head of 25 meters.
- Description
- Ask a Question
-

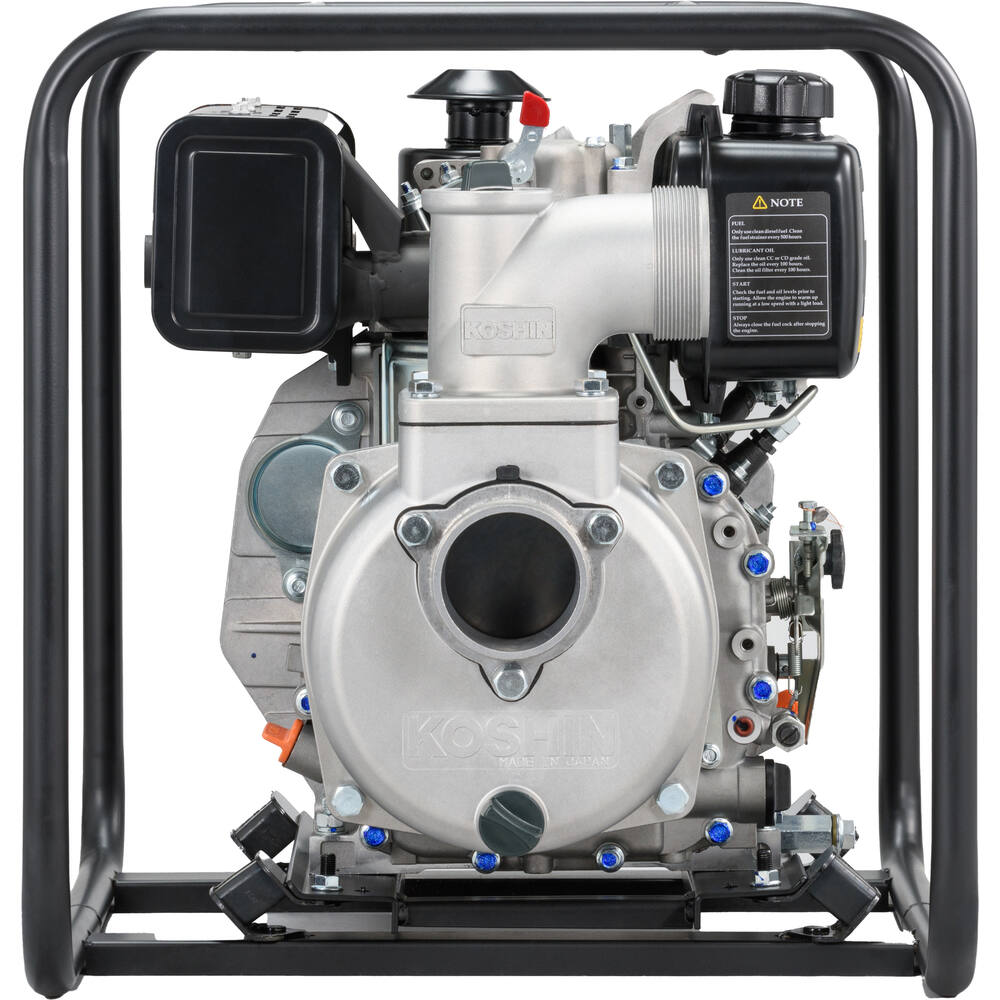

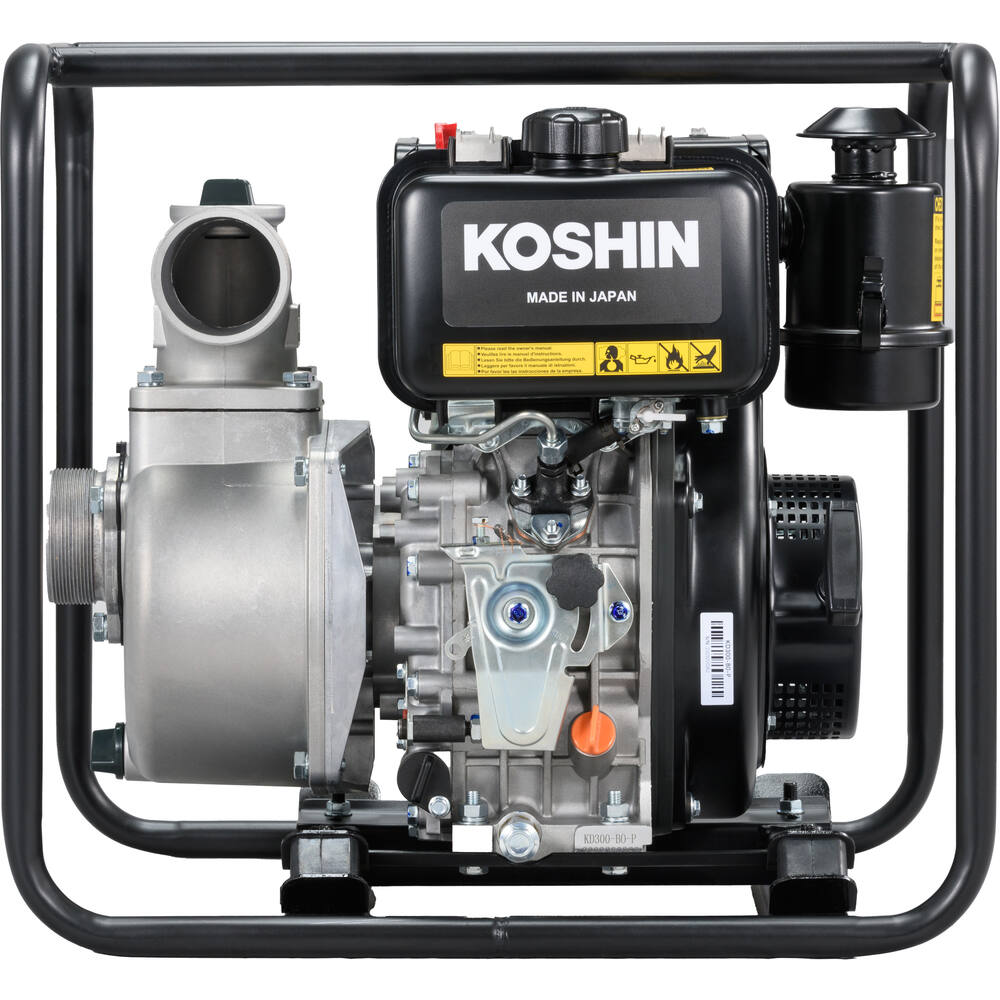

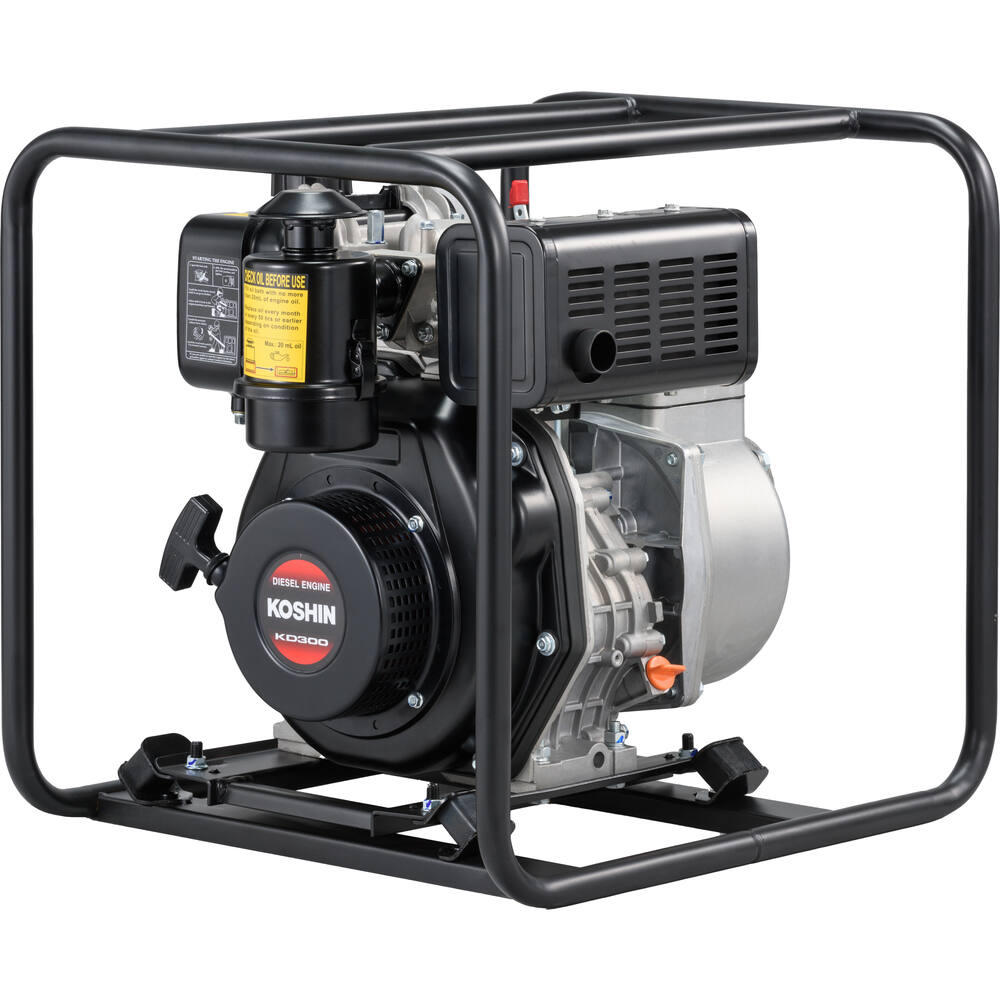

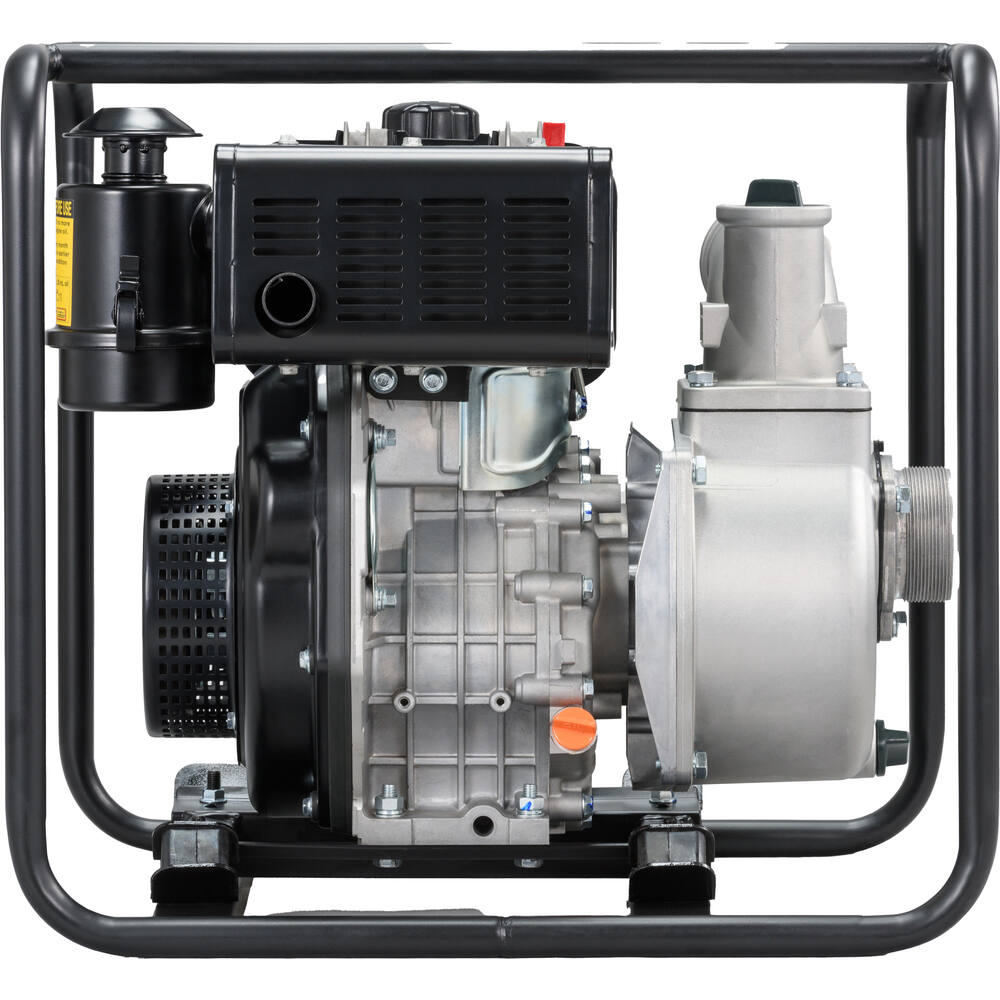

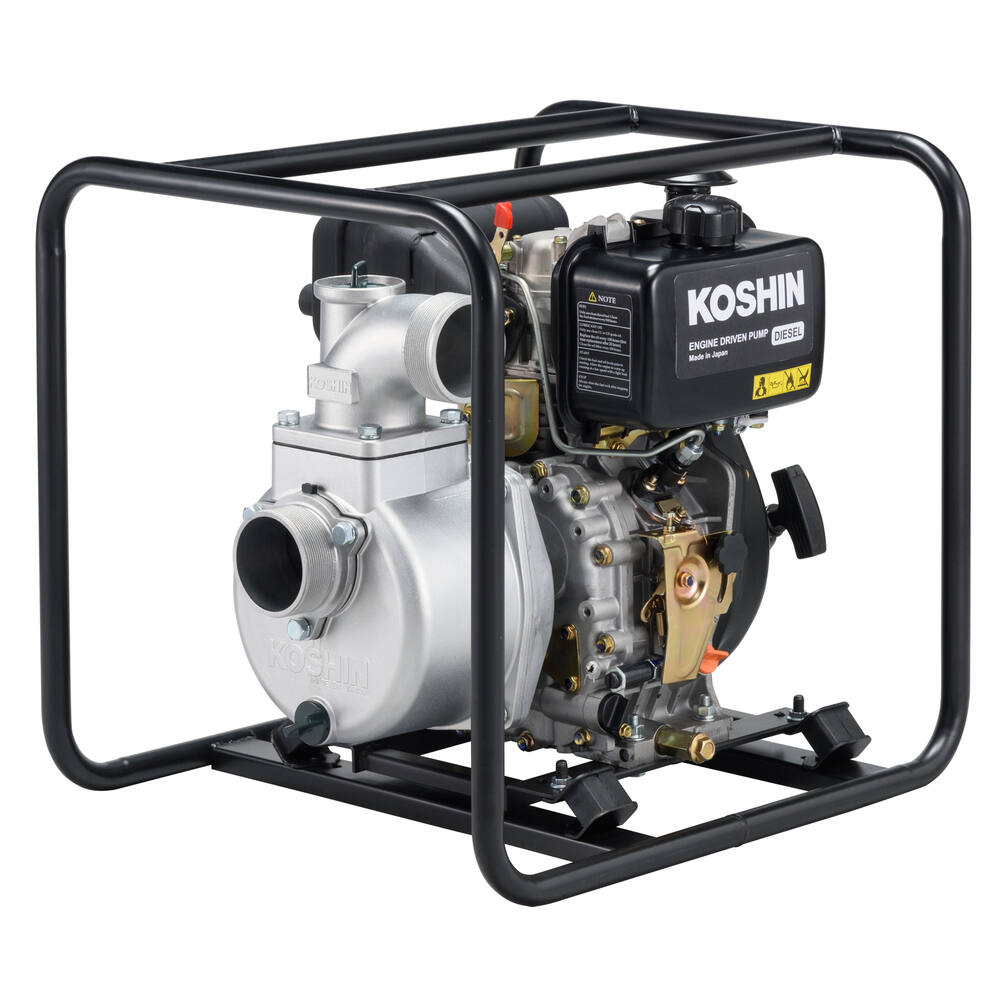

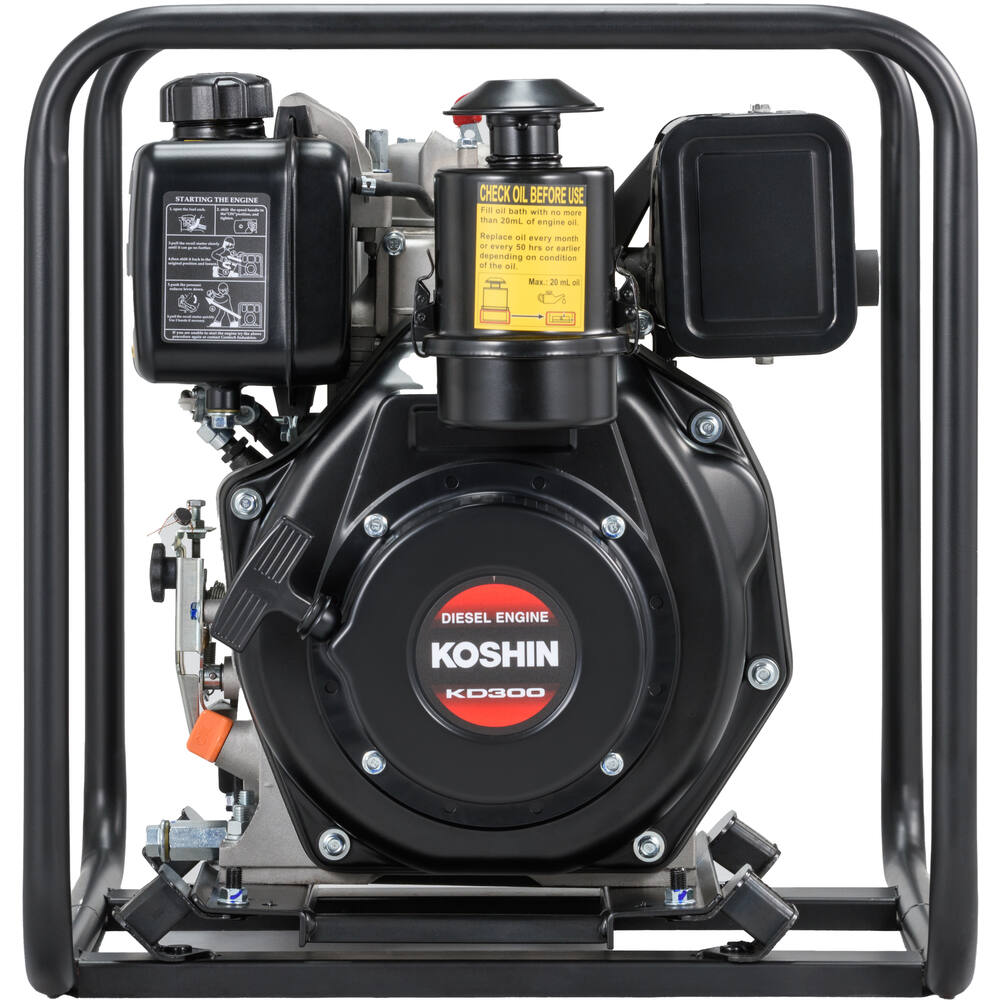

Koshin SEV-80D - Diesel Pump KD300 3"
Designed for tough applications in mining, shipboard, firefighting, and construction, this diesel pump combines durability and efficiency. Powered by a 4-stroke forced air cooled diesel engine, it uses a self-priming centrifugal pump with an open impeller to handle clear water effectively.
- Type: SEV-80D
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: 4 stroke forced air cooled diesel engine
- Shaft seal: SiC (Silicon Carbide) mechanical seal
- Material impeller: cast iron FC200
- Material impeller housing: cast iron FC200
- Material pump housing: aluminum-alloy die casting
- Material pump shaft: chromium steel
- Liquids: clear water
- Flow rates by head:
- 10 m head: 42,000 litres/hour
- 15 m head: 33,600 litres/hour
- 20 m head: 22,200 litres/hour
- Dimensions (LxWxH): 600 x 520 x 550 mm
- Weight: 48.5 kg
- Tank capacity: 3 litres, approx. 2.2 hours runtime
- Motor: Stage 5, Koshin KD300, 4 stroke diesel engine
- Shaft power: 4.0 kW (5.4 hp) at 3600 rpm
- Product code: 94.20.180
- Connection: 3" outer thread
- Suction head: 8.0 m
- Pipe diameter (pressure & suction): 3"
- Pump type: Motor pump and toothed wheel pump
- Medium: Water
- Discharge head Max.: 25.0 m
- Fuel: Diesel
- Free flow: 52,800 L/hour
- Capacity at 5 m: 48,000 L/hour
-
