ID
1316865
$ 1,384
1-2 weeks delivery time
-
+
The Koshin SEH-25L is a ballast pump for demanding shipping and construction tasks, using a self-priming centrifugal design with an open impeller driven by a 4-stroke HONDA petrol engine. It handles slightly contaminated water with flow rates from 5,300 l/h at 10 m head to 660 l/h at 30 m head. The pump features cast iron impeller and housing, aluminium pump housing, stainless steel shaft, weighs 7 kg, and runs about 60 minutes on a 0.58-litre fuel tank.
- Description
- Ask a Question
-

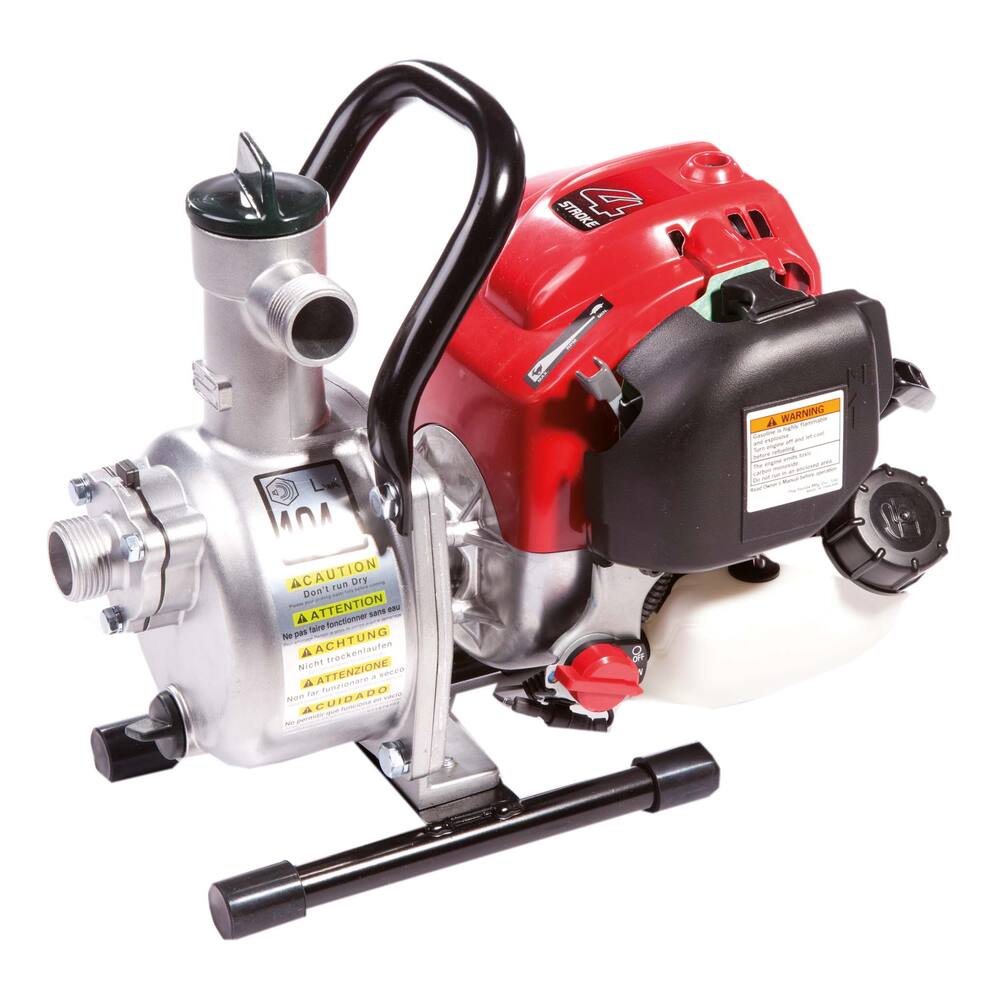

Koshin SEH-25L - 4-Stroke Honda Pump 1"
Engineered for demanding shipping and construction tasks, this ballast pump uses a self-priming centrifugal design with an open impeller. It is driven by a 4-stroke HONDA petrol engine offering reliable and efficient operation with slightly contaminated water.
- Type: SE
- Colour: black
- Impeller type: open impeller
- Motor type: 4 stroke HONDA petrol engine (GX25, 24.5 cc, E5 petrol)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller & housing: cast iron
- Pump housing: aluminium
- Pump shaft: stainless steel
- Liquids: slightly contaminated water
- Performance at head heights:
- 10 m: 5,300 l/h
- 15 m: 4,500 l/h
- 20 m: 3,500 l/h
- 25 m: 2,300 l/h
- 30 m: 660 l/h
- Dimensions (L×W×H): 375 × 235 × 330 mm
- Weight: 7 kg
- Tank volume: 0.58 litres (approx. 60 minutes runtime)
- Shaft power: 0.81 kW (1.1 hp) at 7000 rpm
- Product code: 94.05.224
- Connection: 1" outer thread
- Suction head: 7.0 m
- Pipe diameter (pressure & suction): 1"
- Pump type: Motor pump, Toothed wheel pump
- Medium: Water with particle size up to 2 mm
- Maximum discharge head: 32.0 m
- Fuel: Petrol
- Free flow: 6900 L/hour
- Capacity at 5 meter head: 6900 L/hour
-
